Chapter 2: Jumpers and Connectors

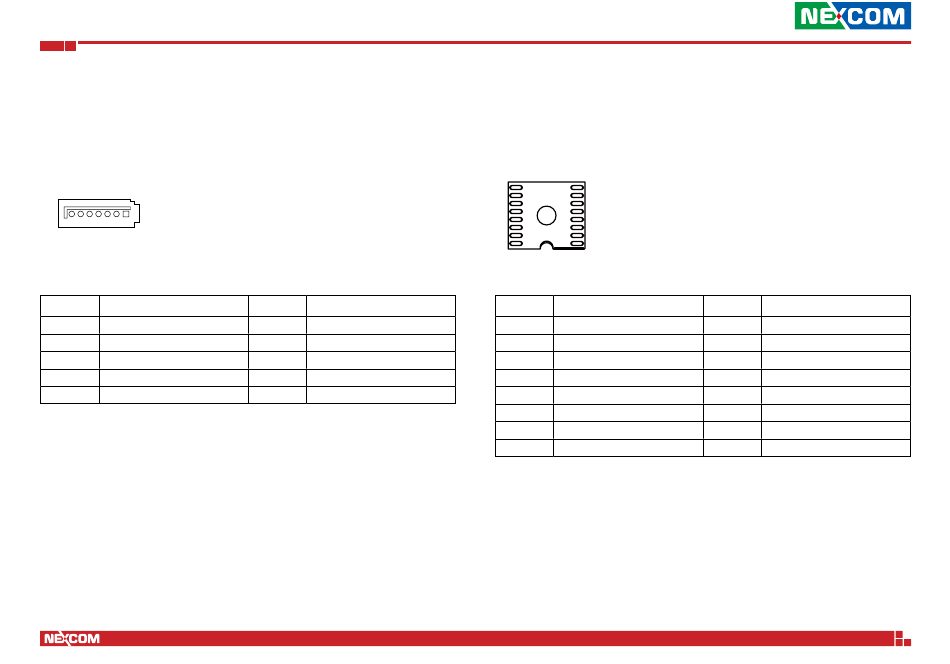

SATA Connector for SATA DOM

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180)
Connector location: SATA6
7 1
1 7
Pin Definition
P1 5V
1 GND
3 TXN
5 RXN
7 GND
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
P2 GND
2 TXP
4 GND
6 RXP

BIOS Socket

Connector type: 2x8 16-pin header
Connector location: BIOS_J1 and BIOS_J2
9 8
16 1
Pin Definition
1 IO3
3 NC
5 NC
7 CS#
9 IO2
11 NC
13 NC
15 MOSI
16
Pin Definition
2 3.3V
4 NC
6 NC
8 MISO
10 GND
12 NC
14 NC
16 SCK
