SW2/4 HD 4K PLUS • Setup Guide
The Extron SW HD 4K PLUS are two and four input HDMI switchers that support 4K video signals at 60 Hz. They
switch 4K/60 signals between multiple HDMI source devices to a single display. The switchers support computer and
video resolutions up to 4K/60 and 1080p/60, data rates up to 18 Gbps, HDR, 12-bit Deep Color, 3D, Lip Sync, and
HD lossless audio formats. Both models feature EDID Minder
with connected devices and ensures that the HDMI sources power up properly and maintain correct video output.
The switchers also provide automatic input cable equalization up to 25 feet (7.6 meters) when used with Extron
HDMI Pro Series cable.
The SW HD 4K PLUS Series offers control via front panel buttons, USB, Extron Product Control Software (PCS),
Ethernet, RS-232, contact closure, and auto-input switching for integration with any control system. Front panel LED
indicators provide immediate visual confirmation of HDCP authentication and signal presence for each input and
output.
This guide provides instructions for an experienced installer to set up and operate these switchers. For full
installation, configuration, and operation details, see the SW HD 4K PLUS Series User Guide, available at
www.extron.com.

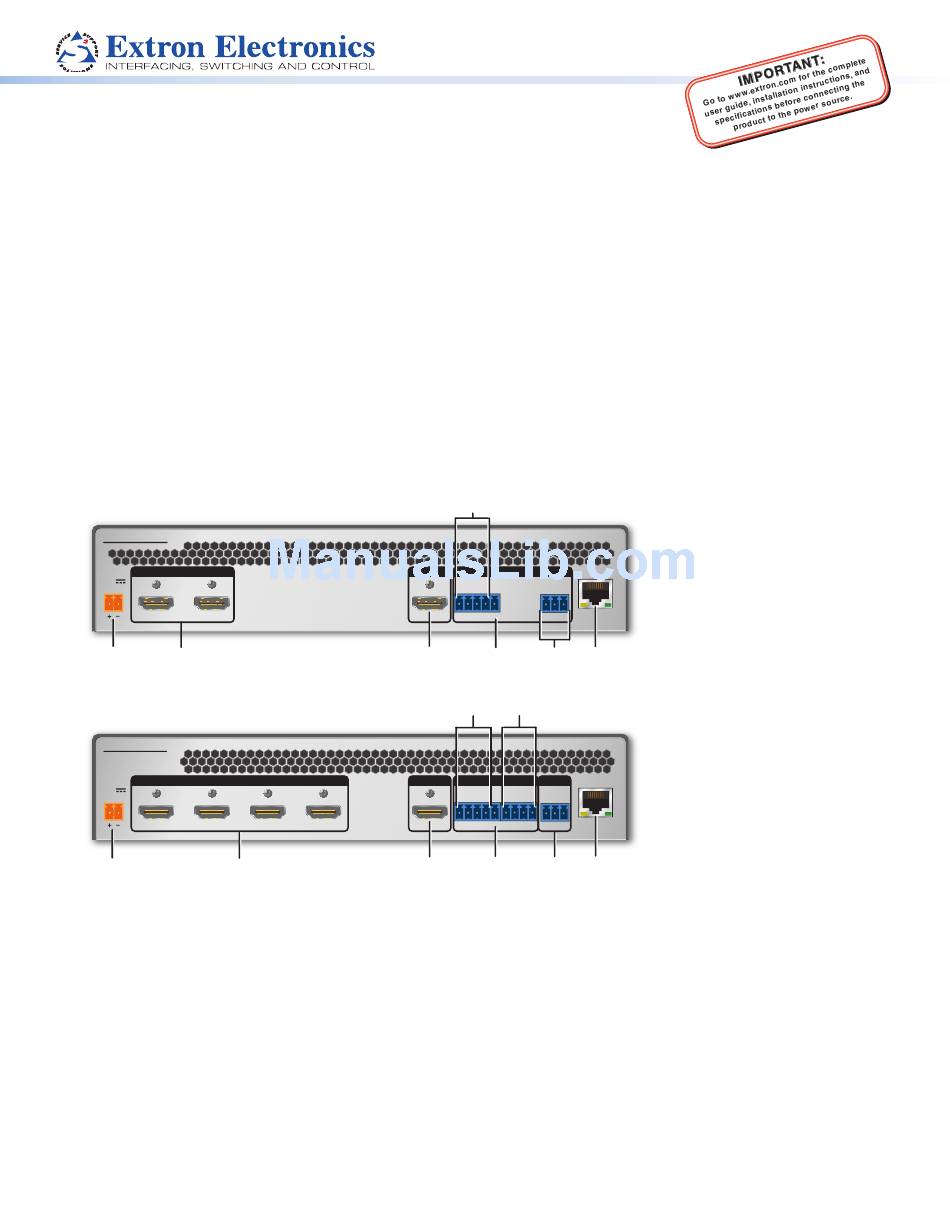

Rear Panel Features and Connections
SW2 HD 4K PLUS
INPUTS
POWER
1 2
12V
-- A MAX
A B
Figure 1. SW2 HD 4K PLUS Rear Panel
SW4 HD 4K PLUS
INPUTS
POWER
1 2
12V
-- A MAX
A B
Figure 2. SW4 HD 4K PLUS Rear Panel
2-pole captive screw power connector
A
HDMI input connectors
B
HDMI output connector
C
Tally +V connectors
D
Installation Steps
Turn off all of the equipment and disconnect it from the power source.
1.
Mount the switcher on a rack shelf or furniture (optional).
2.
OUTPUT
C
OUTPUT
3 4
C
, which maintains continuous EDID communication
®
G
REMOTE LAN
1 2
RS-232
C T C T +V Tx Rx G
D E F
G G
CONTACT / TALLY REMOTE LAN
1 2 3 4 RS-232
C T C T +V C T C T
Tx Rx G
D E F
RS-232 connector
E
LAN Connector
F
G Contact closure input and tally output connectors
