Site Preparation

The NBP button panels fit standard US junction boxes or mud rings.
Model
NBP 105 D, NBP 106 D, NBP 108 D, NBP 110 D
NBP 50, NBP 100
NBP 200
Optional mud rings, UL Listed junction boxes, external junction boxes, and surface
mounting boxes are available for use with the button panels. Read any installation
instructions and UL guidelines that come with the mounting devices, then install the box or
mud ring in the opening at the installation site.
To prepare the site:
1.
Using the size of the junction box or mud ring for reference, cut the hole in the mounting
surface. Protect the surface prior to and during cutting so the surface is not damaged.
NOTES:
•
•
2. Run cables to the mounting location,
leaving enough slack for device installation.
3. Install the junction box or mud ring
into the wall or furniture.
4. Secure the cables with
a clamp for strain relief
and so they do not slip
back down into the wall
or furniture.
Network Button Panels • Hardware Features and Installation — Wall-mountable Models
The approximate cutout dimensions for an Extron-supplied two-gang mud ring
are 4.1" W x 3.75" H (104 mm W x 95 mm H).
If mounting the NBP 100 directly to the mounting surface, cut a hole of
approximately 3.6" W x 2.9" H (91 mm W x 74 mm H).

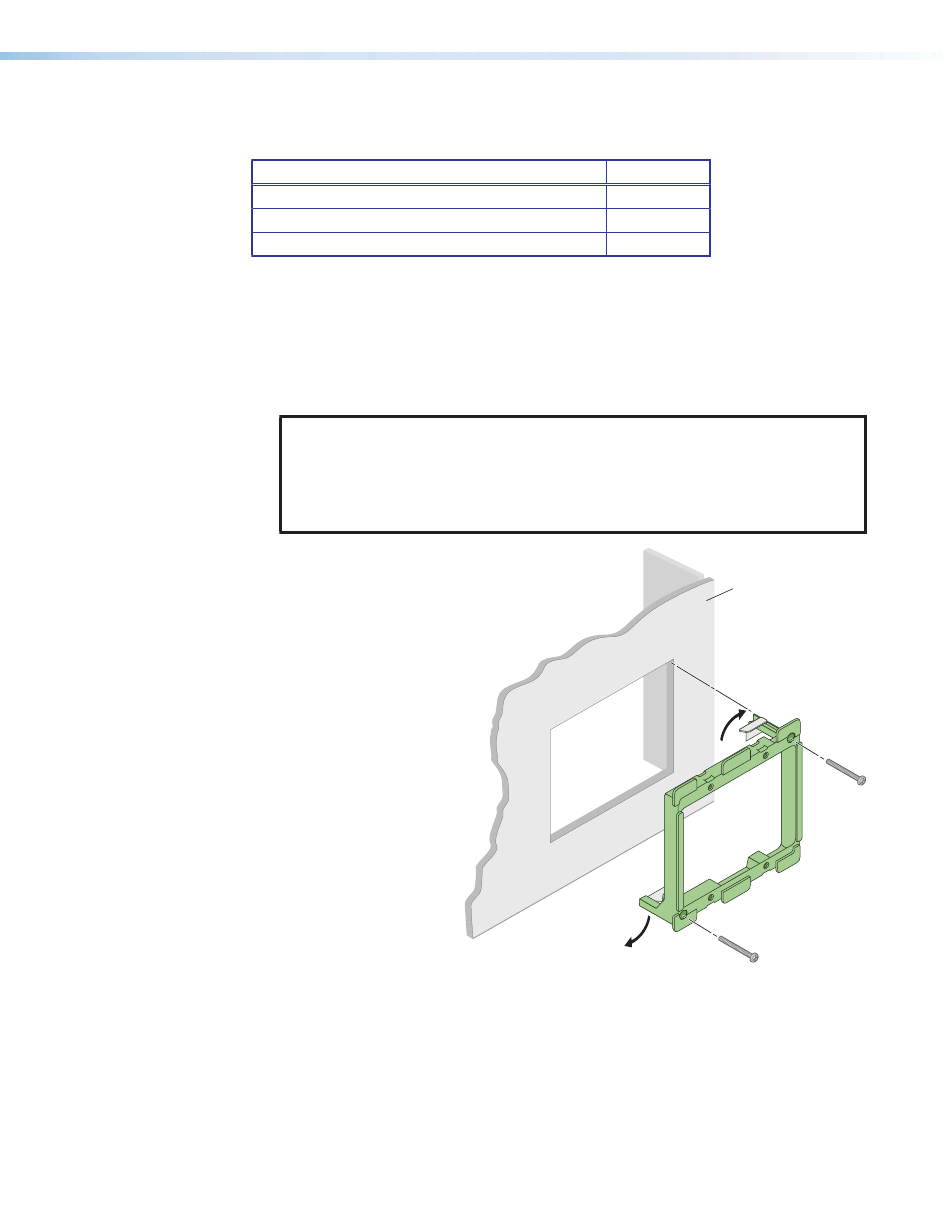

Figure 9.
Gang Size
1
2
3
Mud Ring
Installing a Mud Ring
Wall
11
