The IP settings for NBPs are configured via Toolbelt software. Configure button behavior
as part of the system configuration you create within a Global Configurator project or
Global Scripter project. The project configuration is saved, built, and uploaded into the
IPCP Pro or IPL Pro control processor or the HCR 102 receiver.

Decorator-style Models

The NBP 105 D, NBP 106 D, NBP 108 D, and NBP 110 D feature soft backlit buttons,
fit into a standard US one-gang junction box or mud ring, and include a decorator-style
wallplate.

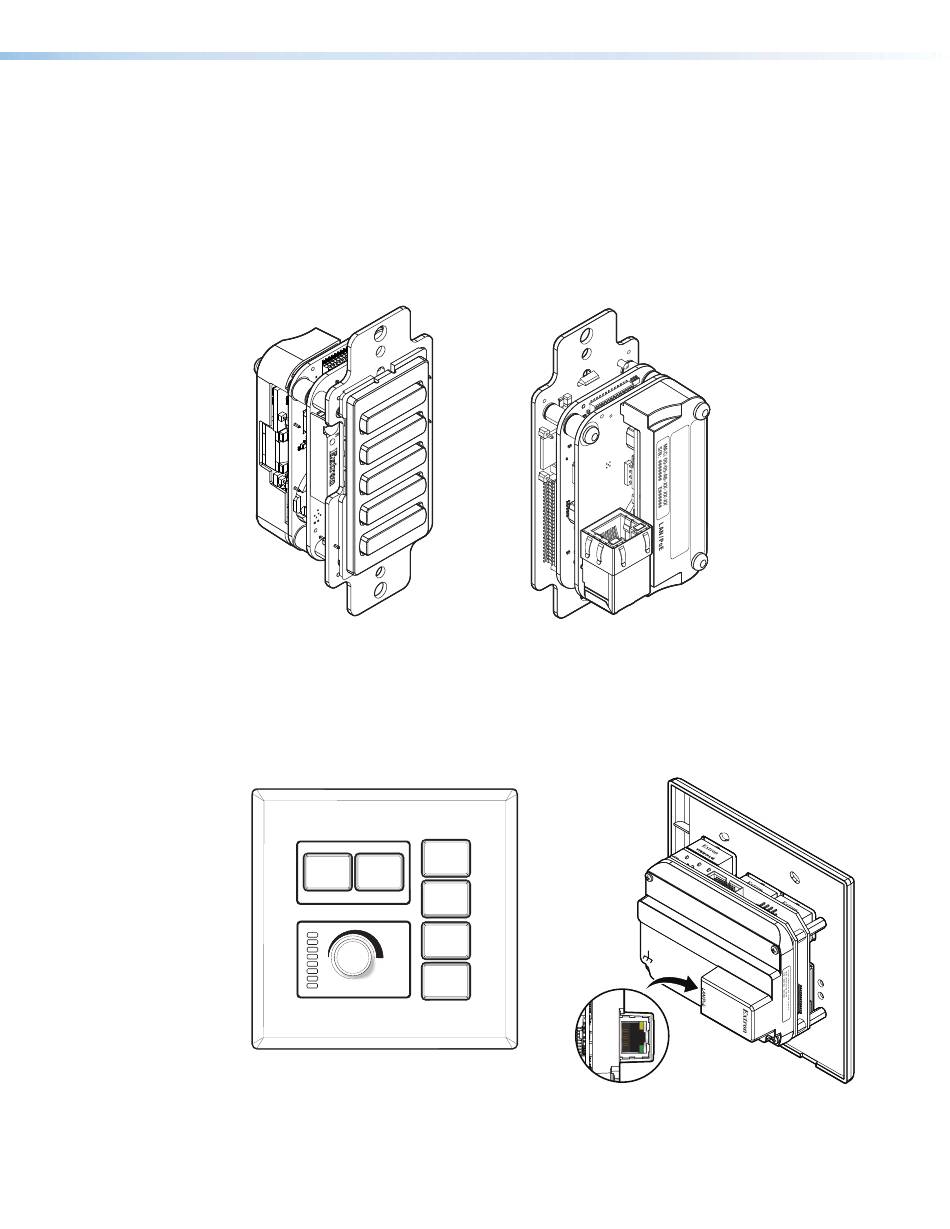

Figure 1.

US Gang Models

The NBP 50, NBP 100, and NBP 200 feature hard, translucent buttons that can easily be
relabeled. These models fit into a standard US two-gang (NBP 50, NBP 100) or three-gang
(NBP 200) junction box or mud ring.
ON
Figure 2.
P C
O P
P T
L A
E O
V I D
E R
A Y
P L
D I A
M E
M I
H D
NBP 105 D Front (Left) and Rear (Right) Views Without Wallplate
PC
OFF
L LAPTOP
V VIDEO
M MUTE
Extron Extron
NBP 100 Front (Left) and Rear (Right) Views
e
Network Button Panels • Introduction 2
