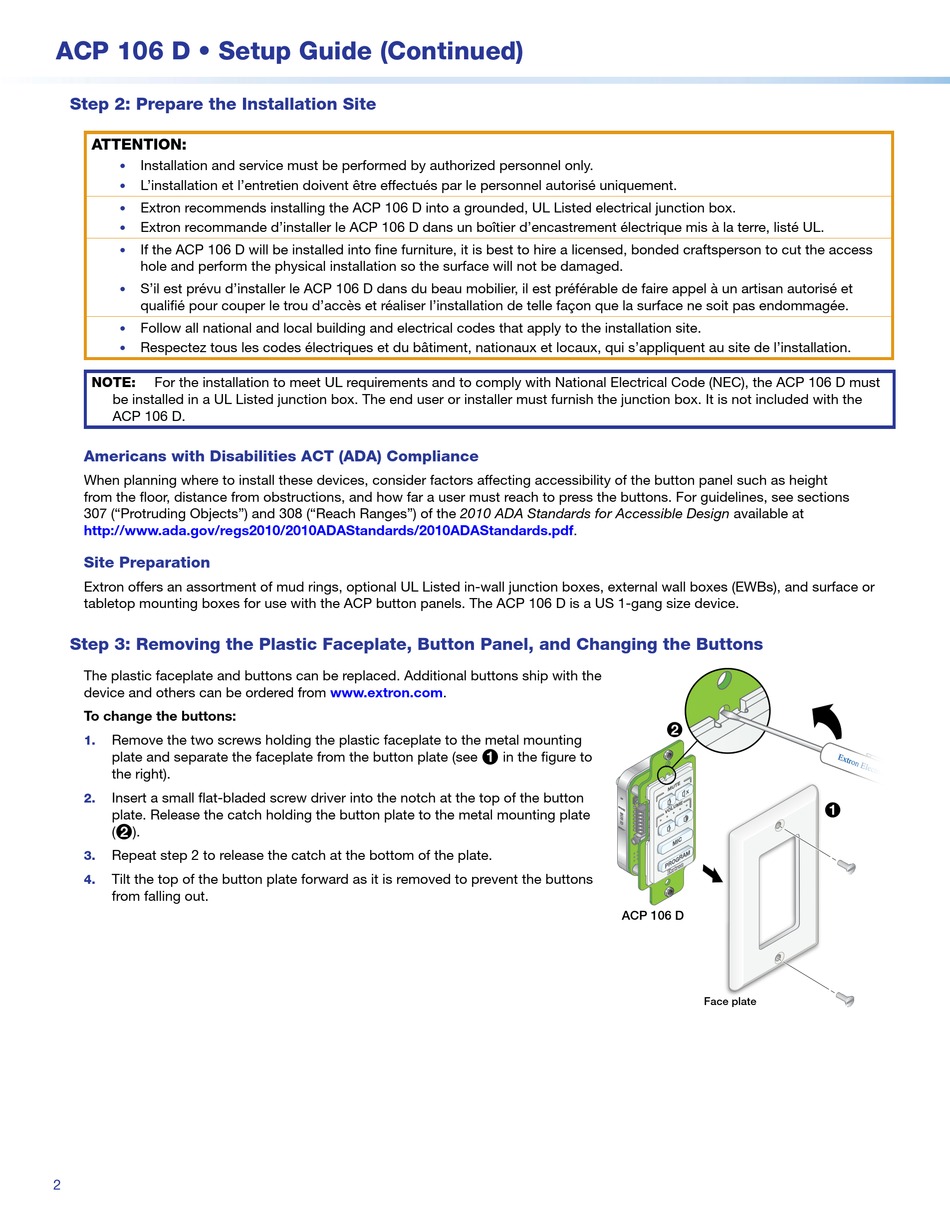

ACP 106 D • Setup Guide (Continued)

Step 2: Prepare the Installation Site

ATTENTION:
Installation and service must be performed by authorized personnel only.
•
L'installation et l'entretien doivent être effectués par le personnel autorisé uniquement.
•
Extron recommends installing the ACP 106 D into a grounded, UL Listed electrical junction box.
•
Extron recommande d'installer le ACP 106 D dans un boîtier d'encastrement électrique mis à la terre, listé UL.
•
If the ACP 106 D will be installed into fine furniture, it is best to hire a licensed, bonded craftsperson to cut the access
•
hole and perform the physical installation so the surface will not be damaged.
S'il est prévu d'installer le ACP 106 D dans du beau mobilier, il est préférable de faire appel à un artisan autorisé et
•
qualifié pour couper le trou d'accès et réaliser l'installation de telle façon que la surface ne soit pas endommagée.
Follow all national and local building and electrical codes that apply to the installation site.
•
Respectez tous les codes électriques et du bâtiment, nationaux et locaux, qui s'appliquent au site de l'installation.
•
NOTE: For the installation to meet UL requirements and to comply with National Electrical Code (NEC), the ACP 106 D must
be installed in a UL Listed junction box. The end user or installer must furnish the junction box. It is not included with the
ACP 106 D.

Americans with Disabilities ACT (ADA) Compliance

When planning where to install these devices, consider factors affecting accessibility of the button panel such as height
from the floor, distance from obstructions, and how far a user must reach to press the buttons. For guidelines, see sections
307 ("Protruding Objects") and 308 ("Reach Ranges") of the 2010 ADA Standards for Accessible Design available at
http://www.ada.gov/regs2010/2010ADAStandards/2010ADAStandards.pdf.

Site Preparation

Extron offers an assortment of mud rings, optional UL Listed in-wall junction boxes, external wall boxes (EWBs), and surface or
tabletop mounting boxes for use with the ACP button panels. The ACP 106 D is a US 1-gang size device.
Step 3: Removing the Plastic Faceplate, Button Panel, and Changing the Buttons
The plastic faceplate and buttons can be replaced. Additional buttons ship with the
device and others can be ordered from www.extron.com.
To change the buttons:
Remove the two screws holding the plastic faceplate to the metal mounting
1.
plate and separate the faceplate from the button plate (see
the right).
Insert a small flat-bladed screw driver into the notch at the top of the button
2.
plate. Release the catch holding the button plate to the metal mounting plate
( ).
2
Repeat step 2 to release the catch at the bottom of the plate.
3.
Tilt the top of the button plate forward as it is removed to prevent the buttons
4.
from falling out.
2
in the figure to
1
ACP 106 D
2
T E
M U
X
M E
1
L U
V O
C
M I
M
R A
O G
P R n
t r o
E x
Face plate
