Installation and Operation
Installation Overview
Installation and service must be performed by
CAUTION
authorized personnel only. UL Listed electrical
boxes are recommended. See UL Requirements
for Wall Box Installation in this chapter.
Power off all devices and disconnect them from the
1
power source, if necessary.
Run an 8-conductor cable between the site where the
2
CTP150CP control panel module will be installed and the
site of the TPT150 transmitter.
For installation in a wall or furniture, prepare the site:
3
cut a hole in the surface, install the electrical box or
mounting bracket, and prepare the cables. See Wall
Mounting Site Preparation in this chapter. See Mini-AAP
mounting options in appendix A, Reference Information, for a
partial list of devices that can accept four space mini-AAPs.
For other installations, install a tabletop or in-table
4
connector bay, or other mini-AAP mounting option.
Refer to the manual for the device in which the control
panel module will be installed. See Mini-AAP mounting
options in appendix A, Reference Information, for a partial list
of devices that can accept four space mini-AAPs.
Connect the 8-conductor cable between the remote
5
control panel and the transmitter. See Rear Panel Setup, in
this chapter for details.
If the rear of the control panel module will be inaccessible
when the installation is complete, the operation of the
panel should be tested before the final mounting.
Apply or connect power to all devices in the system.
6
Test the system: Ensure that the transmitter responds as
7
desired to the remote control panel buttons. If necessary,
correct the system wiring. Ensure that you remove
electrical power if you need to change the system wiring.
Test the system again.
Mount the control panel module into any Extron four-
8
space mini-AAP connector panel.
Restore power to all devices.
9
2-2
CTP150CM Remote Control Panel • Installation and Operation
UL Requirements for Wall Box Installation
The following Underwriters Laboratories (UL) requirements
pertain to the installation of the CTP150CM into a wall or
furniture (figure 2-1).
Installation
Cable
Conduit
C T
L E
S E
U T
IN P
1
2
D IO
A U
2
U T
IN P
D IO
A U
1
U T
IN P
2.5"

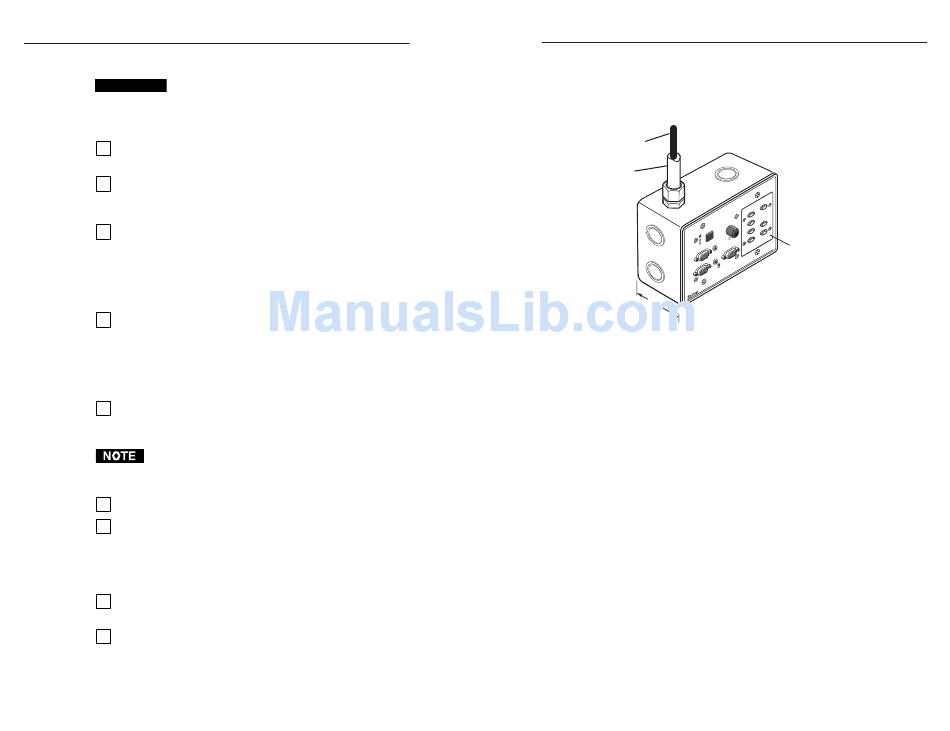

Figure 2-1 — CTP150CM in a four-gang wall box
These units must be installed in UL listed junction boxes.
1.
2.
These units must be installed with conduit in accordance
with the National Electrical Code.
Wall Mounting Site Preparation
The remote control panel can be mounted in a wall-mountable
four space mini-AAP A/V connector panel (such as a one-gang
CPM101) and then set into a wall with either a standard
stud-mounted wall box or with a wall mounting bracket
(IN9181). The remote control panel can also be mounted to any
wall-mountable Extron device that incorporates a four space
A/V mini-AAP connector panel, such as a three-gang RGB 468
Mxi. See Mini-AAP mounting options in Appendix A, Reference
Information, for a partial list of devices that can accept four space
mini-AAPs.
Choose a location that allows cable runs without interference.
Allow enough depth for the wall box and the cables. You
should install the cables in the wall or furniture, with or without
conduits, before installing the mounting bracket or wall box.
The installation must conform to national and local electrical
codes and to the equipment's size requirements.
CTP150CM Remote Control Panel • Installation and Operation
O R
C T
O JE
W E
R
P R
P O
P C
1
M E
L U
2
V O
P C
U P
IF T
S H
H .
M E
1
E O
L U
V O
W N
V ID
D O
2
/M A
X
E O
M IN
V ID
Extron
2
O R
N IT
M O
P ™
D S
H A
W IT
M x
i
CTP150CP
1
7 8
B 4
R G
S
OW
IT OR
FO
LL
M ON
T 1
Remote Control
IN PU
Panel
Extron
RGB 478 Mxi
Interface
2-3
