Step 9: Cable the NBP 1200C and Other Devices in the System
Bottom Panel Features and Cabling (NBP 1200C)
1.
2.
NBP
Activity LED: Bottom Panel Link LED: Lights
green to indicate a
Blinks
amber to network connection.
indicate data
is being sent
LAN/PoE
or received.
RJ-45
Connector
Ethernet
TCP/IP
PC
Network
Run a network cable to the NBP 1200C.
Connect the NBP to the network via the LAN/PoE port on the bottom panel of the
NBP 1200C (as shown in figure 33). Port details are shown in figure 34.
NBP 1200C Bottom Panel
NBP 1200C
RESET
Reset
LED and Button

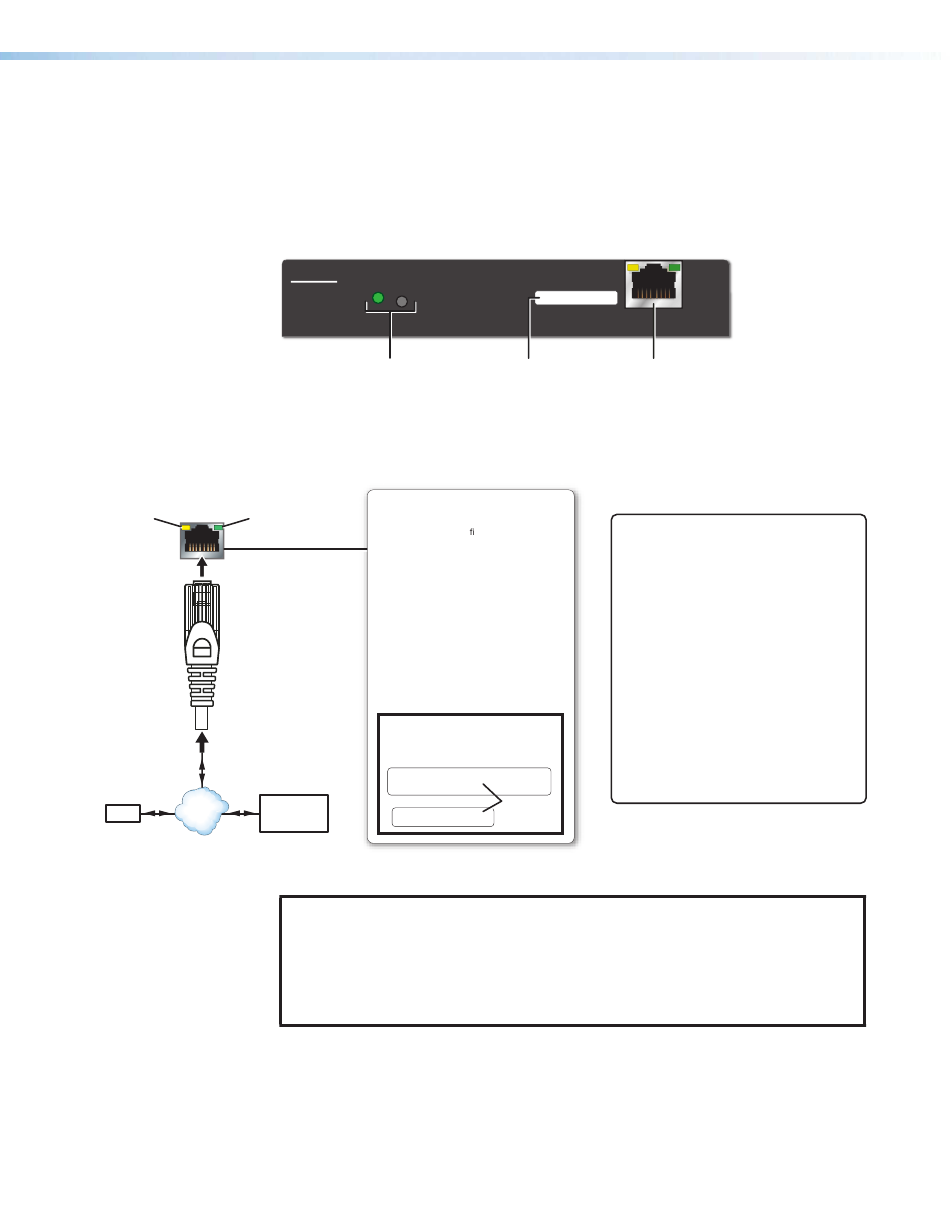

Figure 33. NBP 1200C Bottom Panel Features
Details of LAN/PoE port connection, LED behavior, protocol, addresses, and credentials
are shown in figure 34.
LAN/PoE (Ethernet and
Power Over Ethernet)
Connect to an Ethernet network.
This port must be con gured.
Default protocol:
• NBP address: 192.168.254.253
• Gateway IP address: 0.0.0.0
• Subnet mask: 255.255.255.0
• DNS address: 127.0.0.1
• DHCP: off
• Link speed and duplex level: autodetected
• Data rates: 10/100Base-T
Power over Ethernet (PoE):
The NBP receives power at this port.
Default login credentials:
• Username: admin
• Initial password: unit serial number
• Password after a "Reset to Factory
Defaults": extron
NOTE: MAC address information
(00-05-A6-XX-XX-XX) is located
on the bottom panel, next to the
LAN port.
00-05-A6-XX-XX-XX
MAC: 00-05-A6-XX-XX-XX
S/N: XXXXXXX EXXXXXX
Extron
Control
MAC: 00-05-A6-XX-XX-XX
S/N: XXXXXXX EXXXXXX
Processor
Figure 34. NBP 1200C LAN/PoE Port Details
IMPORTANT NOTES:
The factory configured password for this device has been set to the device
•
serial number. Passwords are case sensitive. Performing a Reset to Factory
Defaults (see Resetting the Unit
extron.
DHCP is off by default.
•
Network Button Panels • Hardware Features and Installation — NBP 1200C
00-05-A6-XX-XX-XX
MAC: 00-05-A6-XX-XX-XX
S/N: XXXXXXX EXXXXXX
LAN/PoE
MAC Address LAN/PoE (Ethernet)
Connector and LEDs
Label
Cabling:
• For 10Base-T (10 Mbps)
networks, use a CAT 3 or
better cable.
• For 100Base-T (max. 155
Mbps) networks, use a CAT
5 cable.
Activity LED (on connector) —
This yellow LED blinks to indicate
network activity.
Link LED (on connector) — This
green LED lights to indicate a
good network connection.
MAC
Address
on page 42) sets the password to
33
