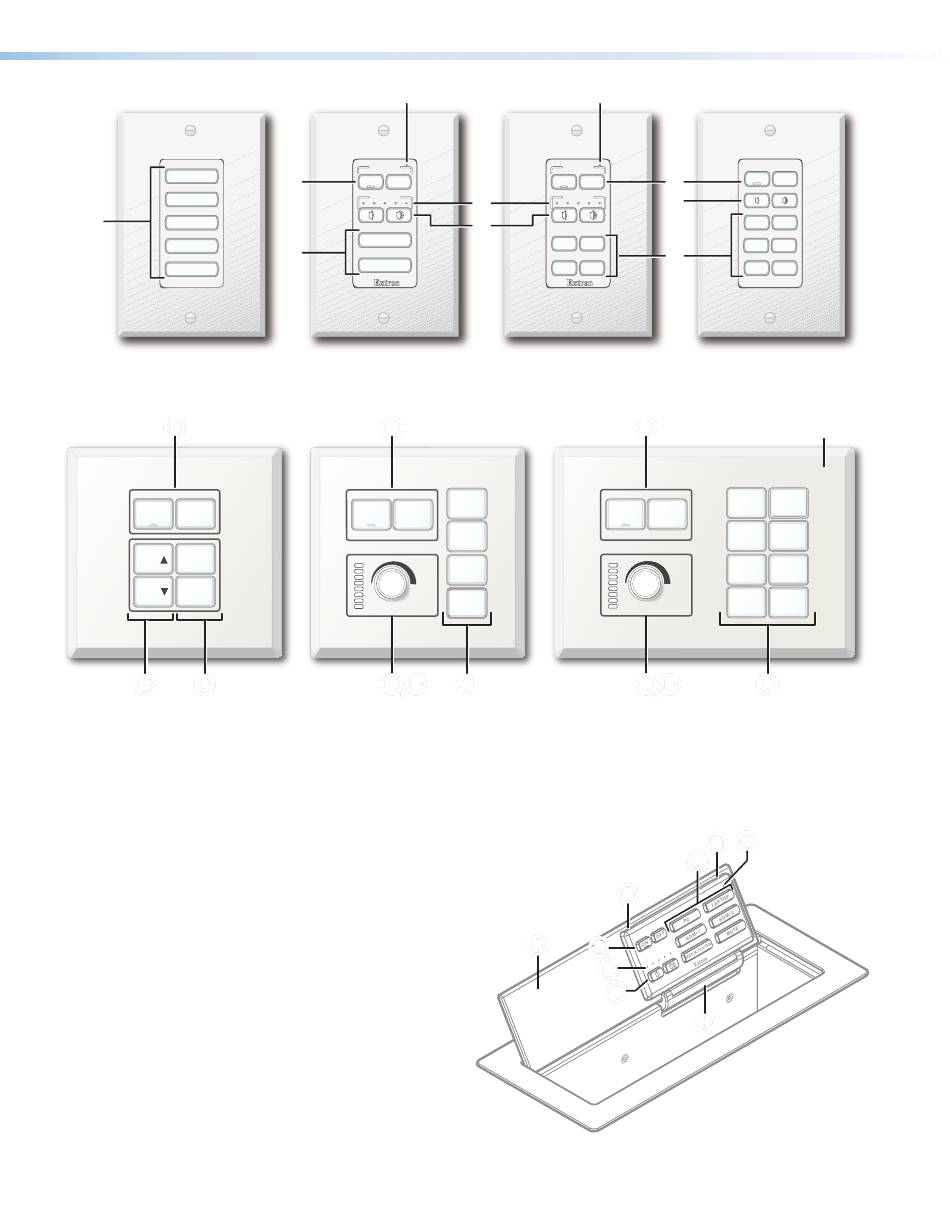

Figure 36. Decorator-style NBP Front Panels With Wallplates
B B B B
ON OFF
VOL PC
VOL VIDEO
E
NBP 50
D D D D A A A A
Figure 37.
Function buttons — Configure these buttons to light and function as desired.
A
Power buttons — These buttons (present on certain models only) are usually used to control the
B
power to the display device. The On button has a nub that can be felt with finger tips.
Communications LED (NBP 106 D, 108 D, 1200C) — This LED
C
indicates the configuration and connection status of the NBP.
Unlit — Normal operation (the NBP is configured
•
and connected to an IPCP Pro control
processor).
Blinking red — The NBP has
•
been configured but is not
connected to an IPCP Pro
control processor.
Lit steadily — The NBP has
•
not been configured.
Volume buttons (on certain
D
decorator-style models, and
NBP 1200C) or volume knob
(on NBP 100 and NBP 200) —
Configure Volume buttons or the volume
knob to increment or decrement audio volume.
C
DISPLAY
B
ON OFF
VOLUME
PC
A
VIDEO
NBP 106 D
B B B B
ON OFF
LAPTOP
VIDEO
E
NBP 100
D D D D E E E E
, , , ,
US Gang NBP Front Panels With Faceplates
C
DISPLAY
ON OFF
E VOLUME
D
PC VIDEO
LAPTOP MUTE
NBP 108 D
PC
ON
MUTE
NBP 200
A A A A
G G G G G
F F F F
B B B B B
E E E E E
D D D D D
Figure 38.
Network Button Panels • Operation
B
ON OFF
D
PC LAPTOP
HDMI 1 HDMI 2
A
MEDIA
MUTE
PLAYER
NBP 110 D
B B B B
Faceplate
PC LAPTOP
OFF
MEDIA
VIDEO
PLAYER
HDMI 1 HDMI 2
MUTE WIRELESS
E
D D D D E E E E
A A A A
, , , ,
C C C C C
G G G G G
A A A A A
H H H H H
NBP 1200C Front Panel
