Step 3: Change Buttons, Button Labels, a Bezel, or Wallplate (optional)

Instructions for Decorator-style Models

If desired, replace one or more buttons or button pairs using available additional buttons.
Optional button kits are available in various languages. Wallplates and bezels are available in
black, as well.
NOTE: A custom button builder tool is available at
Replacing Buttons or a Bezel on a Decorator-style NBP
The bezel must be removed to access buttons.
To replace the buttons or the bezel:
1.
2.
3.
4.
Network Button Panels • Hardware Features and Installation — Wall-mountable Models
http://www.extron.com/product/custombuttonbuilder/index.aspx
can order standard stock buttons or custom-labeled buttons for the NBP decorator-
style models.
If already installed, remove the wallplate. Save the two screws for later use.
Remove the bezel as follows:
a. Insert the tip of a small, flat-
bladed screwdriver (such as
an Extron Tweeker) through
one of the slots at the top
or bottom of an NBP, as
shown in figure 10 at right.
b.
Angle the screwdriver to
press gently down on the
tab to release and pry the
bezel from the mounting
plate.
c. If the bezel has not fully
detached from the circuit
board, repeat steps 2a and
2b with the hole and tabs
at the opposite end of the
mounting plate.
d. Lift the bezel away from the
mounting plate.
Remove any buttons to be replaced as follows:
a.
Press the button or button pair from the front of the bezel out through the back of
its bezel opening. If necessary, pull the buttons out gently from the back.
NOTE: The smaller buttons are arranged in pairs connected by a rubbery
membrane.
b. If you are replacing the faceplate, repeat step 3a until all buttons are removed.
c. Set the removed buttons aside for later use.
Insert a button or button pair as follows:
Module
Bezel
P C
O P
P T
L A
E O
V I D
E R
A Y
P L
D I A
M E
M I
H D
NBP 105 D
Press tab down.
Tilt screwdriver to
release bezel from
circuit board.

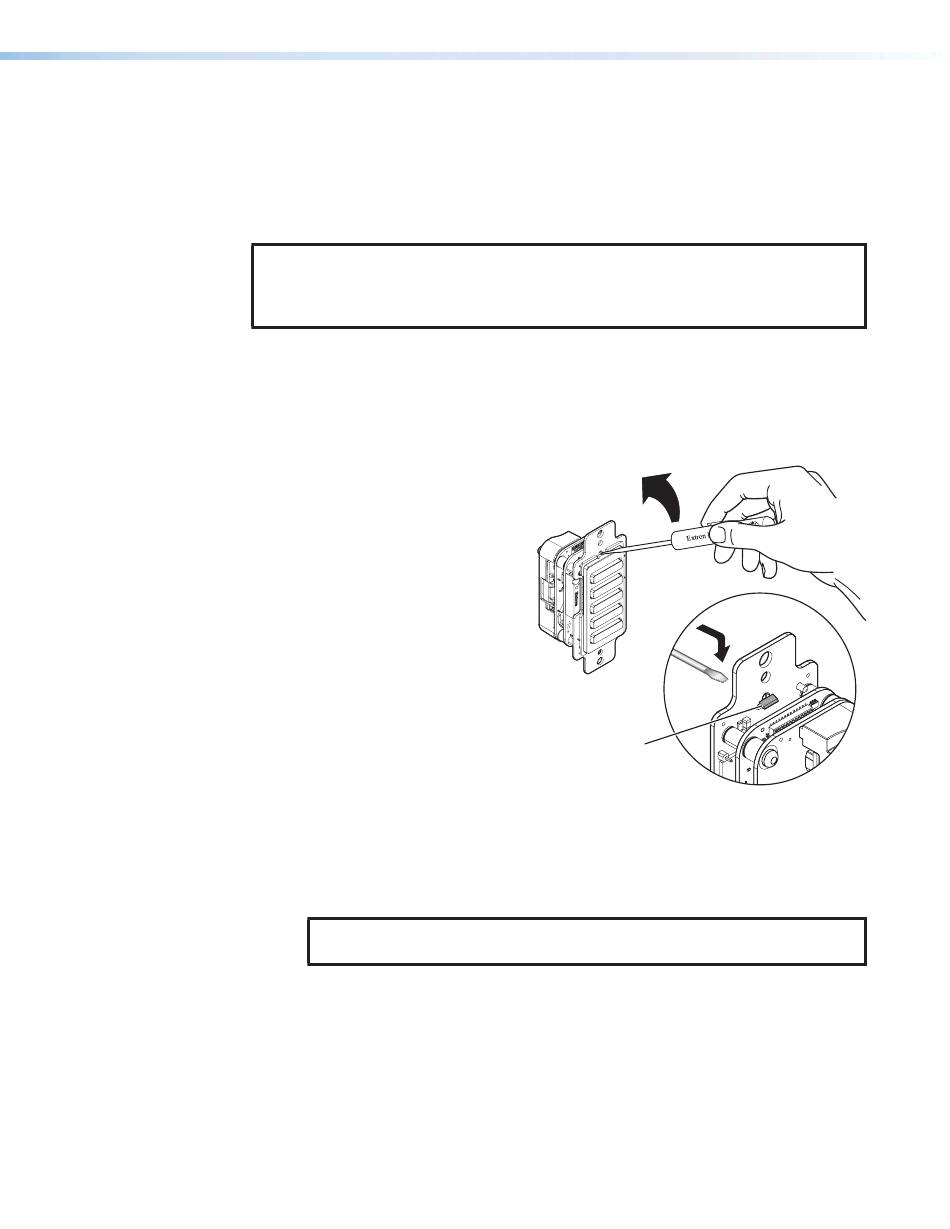

Figure 10. Using a Screwdriver to Release
the Bezel Tabs, Rear View
where you
