Volume Controls and LEDs

You must configure these buttons (NBP decorator-style models, NBP 1200C) or
knob (NBP 100 or NBP 200). They can be used for any function and behavior and to control
any device. However, the most common configuration is as follows:
On the decorator-style models and NBP 1200C:
•
Press the increase volume button
Press the decrease volume button
On the NBP 50:
•
Press the increase volume button
Press the decrease volume button
• On the NBP 100 and 200 models, rotate the volume knob clockwise to
increase the audio volume, counterclockwise to decrease volume.
On decorator-style models and NBP 1200C, the Mute button can be
•
configured to turn audio output off or on.
The Volume LEDs directly above the buttons (NBP 106 D, NBP 108 D, NBP 1200C) or to
the left of the knob (NBP 100, NBP 200) can be configured as follows:
• Blink to indicate increases or decreases or to show volume level status (see
control options
• Light in patterns such as upward or downward sweeps to indicate increases or
decreases for increment or decrement adjustments, or to indicate a volume level range
for range-based adjustments (see "Volume control options" below for additional details)

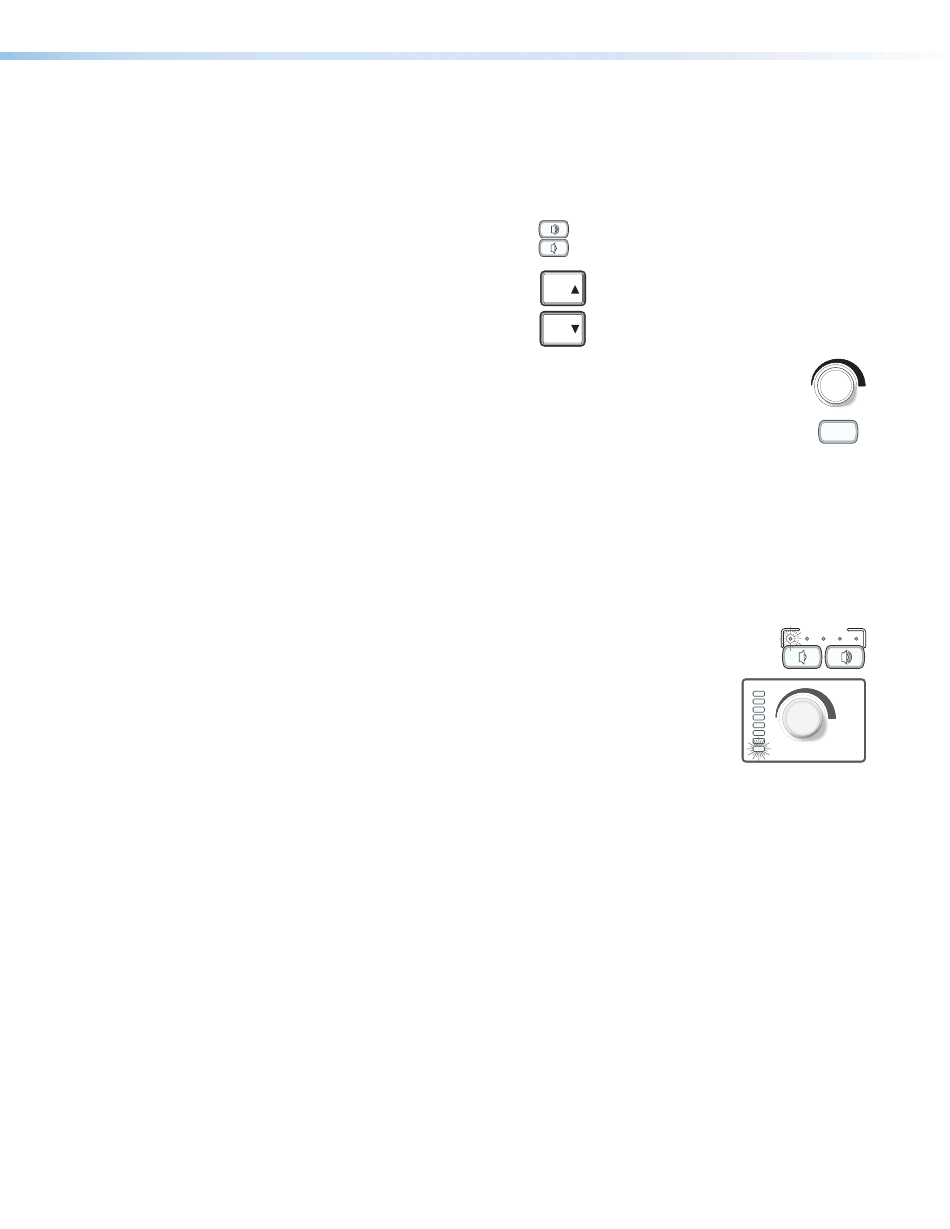

For all models, when audio mute is active, mute would typically be
indicated by a slowly blinking LED (shown in the diagrams at right), no
matter which port is used for audio control or what mode (range-
based) is being used. When the audio is unmuted, the volume
returns to the previously used level.
Volume control options
Global Configurator software and Global Scripter programming let you configure the
volume buttons (decorator-style models, NBP 50, NBP 1200C) and volume knob
(NBP 100, NBP 200) to control audio volume using serial or IR control commands together
with a COM or IR port on the IPCP Pro or IPL Pro control processor or HCR receiver.
You can specify incremental adjustments or range-based adjustments (via device driver
only). See the Global Configurator Plus and Global Configurator Professional Help File or the
Global Scripter Help File for details on these types of volume adjustments and on how to
configure the volume LEDs (for the desired lighting behavior).
to increase the audio volume.
to decrease volume.
VOL
VOL
below for additional details).
to increase the audio volume.
to decrease volume.
Network Button Panels • Operation
MUTE
Volume
VOLUME
