Instructions for US Gang Models

The faceplate, button labels, and knob can easily be changed at any time. Some button
labels ship with the unit. You can create and print your own customized labels using Extron
Button Label Generator software, which is available in the software
on the Extron website.
Removing and replacing a faceplate
To replace a faceplate:
1. Remove the faceplate by holding the body of the unit with one hand, gripping the sides
of the faceplate with the other hand, and pulling the faceplate away from the unit.
2. Align the openings of the new faceplate with the buttons and knob and with the LEDs
and place the faceplate against the unit. The magnetic catches fasten the faceplate
onto the unit.
TIP: You can wait until the unit is mounted to the junction box or mud ring before
placing the new faceplate on the unit.
Replacing button labels
To change a button label:
1. Remove the faceplate as mentioned in step 1 of "Removing and replacing a faceplate", above.
2.
For each button label to be replaced, gently separate the
button lens cap from its white diffuser. To do this, insert
the end of the provided Extron removal (pry) tool into
the corner notch and gently twist the tool
(see figure 13,
3. Remove the label insert from the
translucent button cap.
4. Select one of the button labels from
the printed label sheets included
with the unit. Remove the label from
its backing and remove the clear,
protective film from the front of the
label.
5. Insert the button label into the button
cap (see
orientation.
6. Align the cap with the white diffuser and
the panel opening, and press the
clear cap into place on the button.
7. Reattach the faceplate to the unit (see
step 2 in "Removing and replacing a
faceplate", above).
Changing a knob
To change a knob:
1.
Remove the faceplate as described in step 1 of "Removing and replacing a faceplate",
above.
2. Firmly grasp the knob and pull it away from the NBP.
3.
Align the ridge inside the new knob with the channel on the knob control and allow the
magnet in the knob to snap into place.
4. Reattach the faceplate to the unit (see step 2 in "Removing and replacing a faceplate").
Network Button Panels • Hardware Features and Installation — Wall-mountable Models
).
1
). Check for correct label
2
Download Center
T E
X T
2
Button
Lens Cap
1
Separate the
two-piece button
here at the corner.

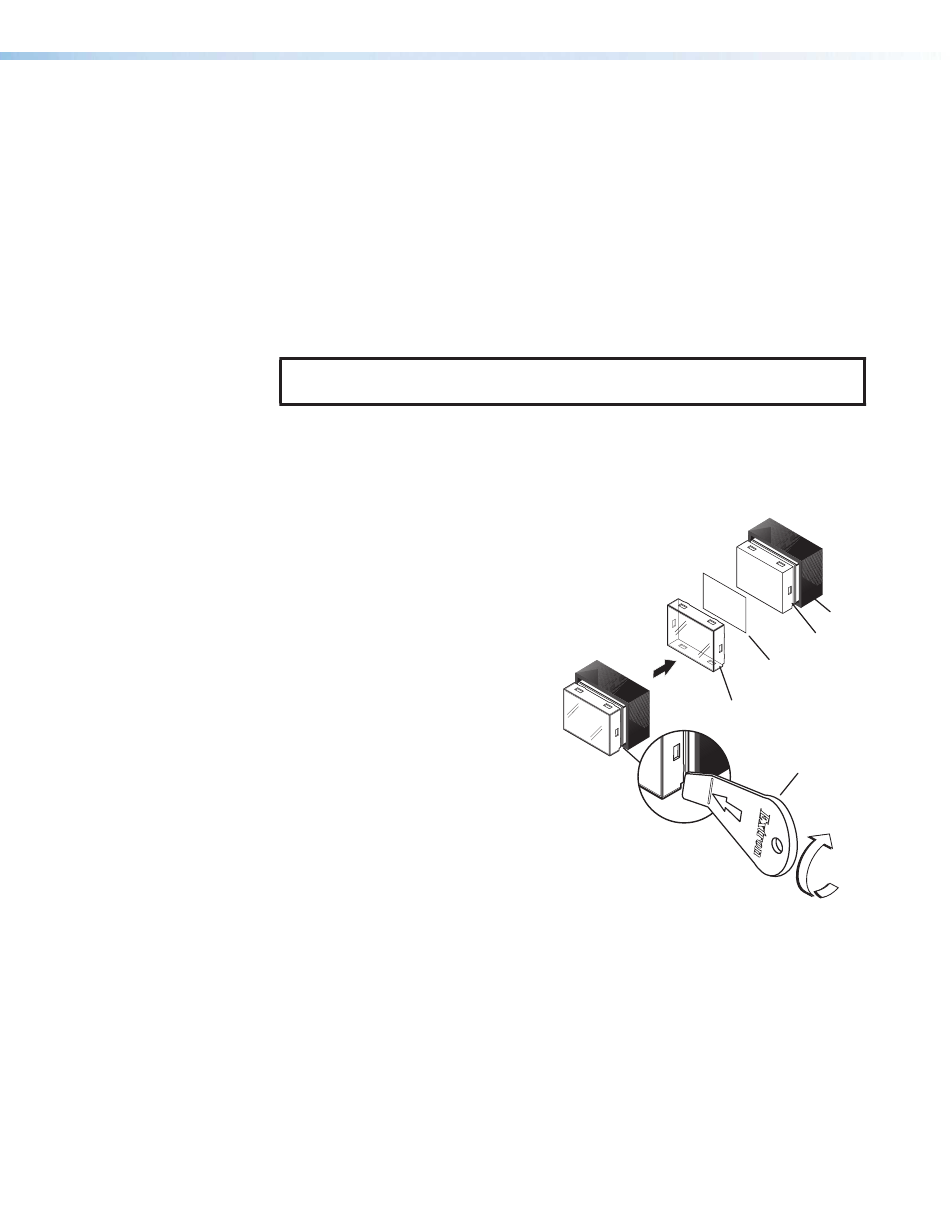

Figure 13. Replacing Button Labels
on a US Gang Model NBP
page
Base
Diffuser
Insert
button label.
Removal
Tool
