AAP Module, Cable Pass-through Module, and Power Module

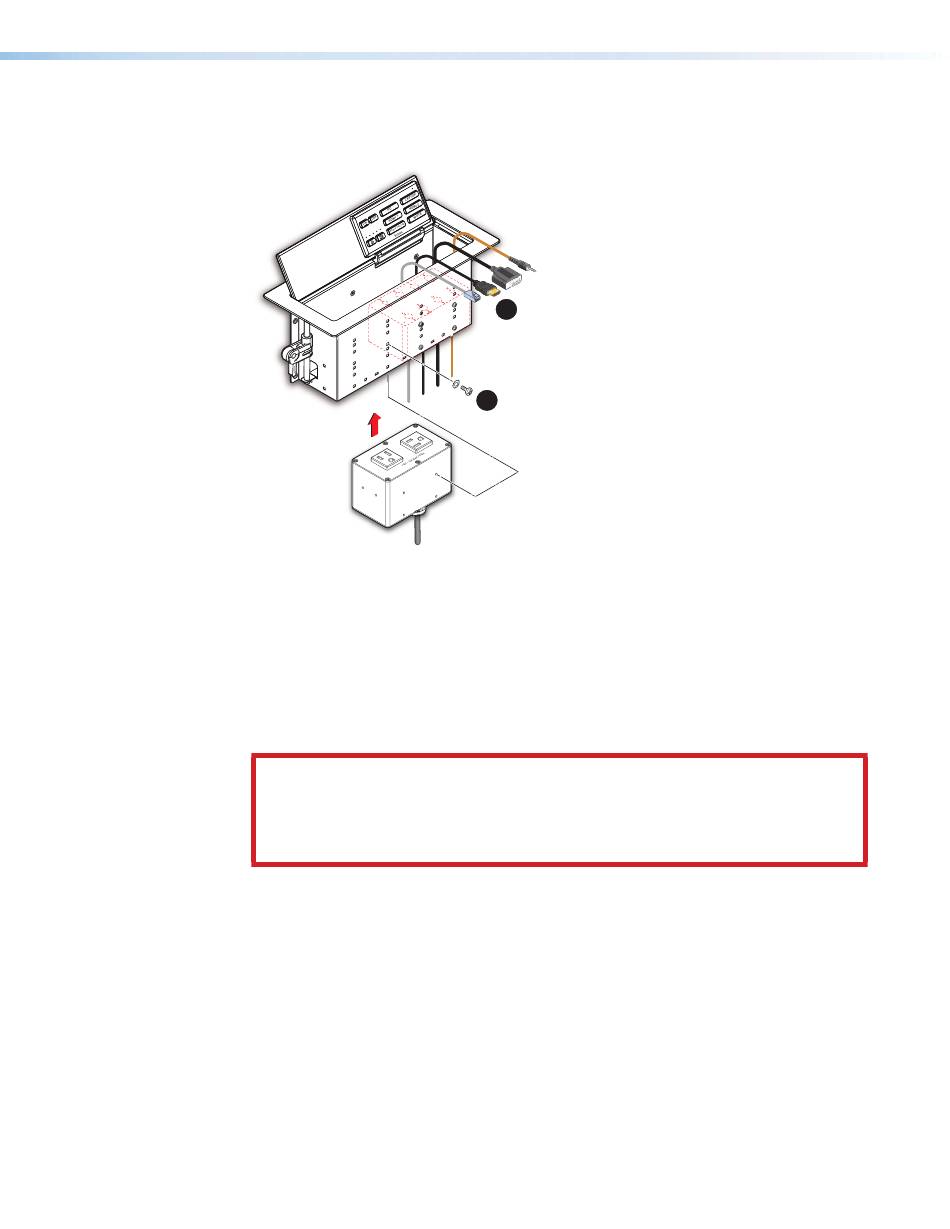

Insert the modules into the Cable Cubby as shown in figure 28.
Figure 28.
AC power and AC+USB power modules are available for US, Europe, and other major world
markets. They must be purchased separately (see www.extron.com). If you install a power
module, you must ground the unit using the provided #6-32 star washers and mounting
screws.
• Most AC power modules provide two unswitched AC outlets.
• The AC+USB power modules provide one or two AC outlets and two USB power
outlets.
WARNING: Risk of Electric Shock. To ensure proper electrical grounding, use the
provided #6-32 mounting screws with the star washers.
AVERTISSEMENT : Risque de choc électrique. Afin d'assurer une mise à la terre
correcte, utilisez les fixations de mise à la terre #6-32 et les rondelles en étoile
fournies.
1
2
Secure the modules
using four of the provided
#6-32 pan-head
mounting screws
and star washers.
Installing the Connectivity and Power Modules
Network Button Panels • Hardware Features and Installation — NBP 1200C
Insert the modules
into the Cable Cubby.
30
