Step 5: Install Modules and a Retractor Bracket

Determine where the modules are to be installed in the Cable Cubby enclosure. Any
combination of two modules can be installed. The modules can be installed on either side of
the enclosure and at various heights.
NOTES:

Retractor Bracket

Use the retractor bracket to
mount cable retractors in
the Cable Cubby
enclosure. The retractor
bracket accommodates
up to three
Retractor Series or
Retractor Series XL cable
retraction modules.
The retractors must be
purchased separately.
Visit
to find available retractor
models, retractor filler
modules, and optional
retractor brackets.
If you require retractors,
insert the retractor
bracket as shown in
figure 27.
NOTE: Do not mount the retractors in the retractor bracket until after the Cable Cubby
Install retractor filler modules in any unused retractor mounting spaces.
Install the retractor bracket as close as possible to the bottom of the enclosure to ensure
that there is sufficient clearance at the top of the retractor inside the CableCubby. If the
bracket is installed too high in the Cable Cubby, the lid will not close due to contact with the
retractor module.
For full details on how to install a Retractor, see the Retractor Series Installation Guide,
available on the Retractor Series or Retractor Series XL product page at www.extron.com).
An optional Cable Cubby Retractor Bracket Kit – Double allows two cable retractors to
be mounted at the outer edges of the enclosure with one of the other modules mounted
centrally. These brackets must be purchased separately and they are sold in pairs.
Ensure that there is enough room above the modules for the Cable Cubby lid to
•
close completely. This also requires that any retractor brackets be installed as
close as possible to the bottom of the enclosure.
Extron recommends mounting the power module on the left side of the enclosure.
•
For any cables that must be connected to modules, feed them up through the
•
table or other furniture before attaching them to each module.
Use a screwdriver to secure the modules with the screws.
•
www.extron.com
is mounted (see Step 7: Install Retractors
Network Button Panels • Hardware Features and Installation — NBP 1200C

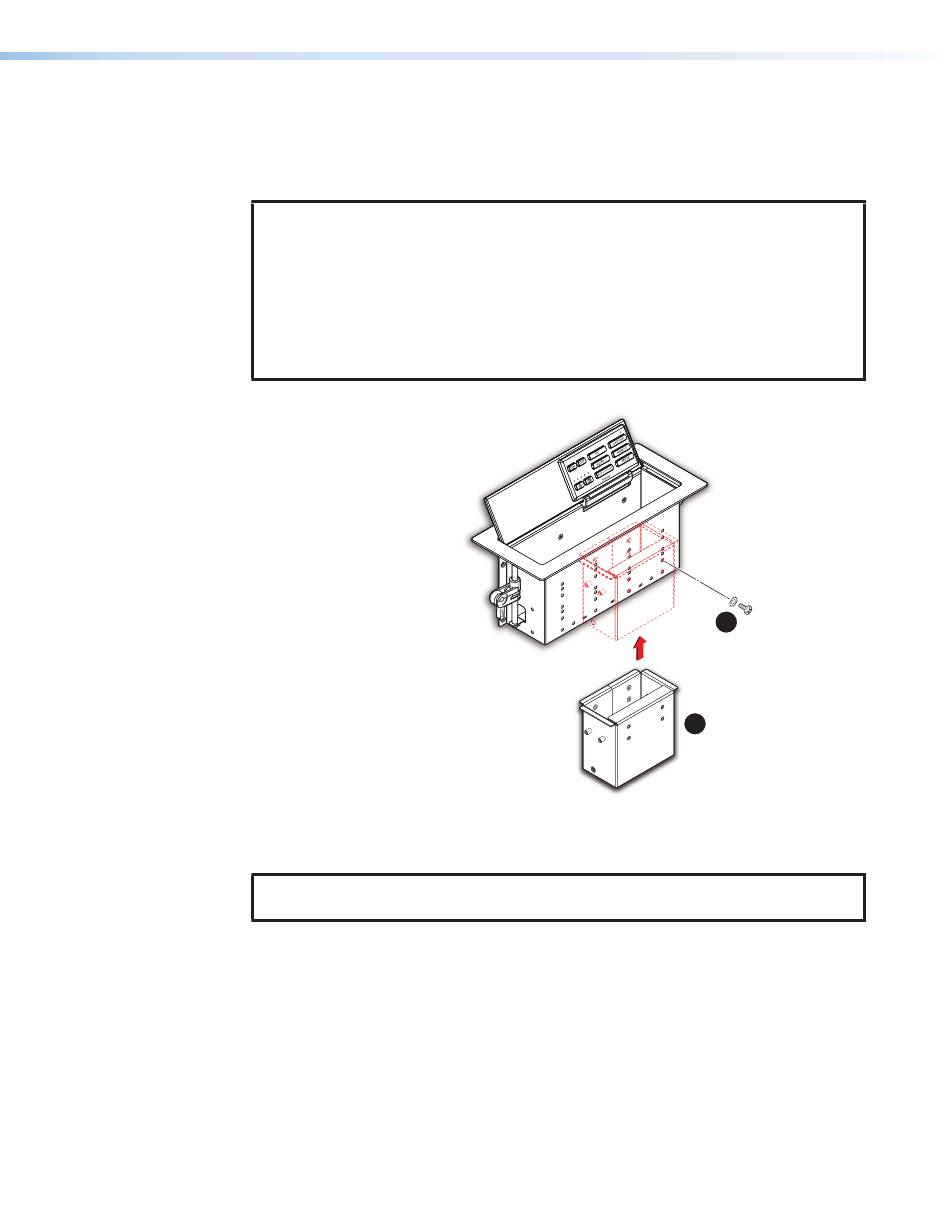

Figure 27. Installing the Retractor Bracket
on page 32.)
2
Secure the bracket
using four of the provided
#6-32 pan-head mounting
screws with star washers.
Tighten the screws using
a screwdriver.
1
Insert the bracket as shown.
The bracket may be installed
on the left or right side of the
enclosure and at the
lowest height.
