TLP Pro x25M and TLS x25M Series TouchLink Panels
Setup Guide
Overview

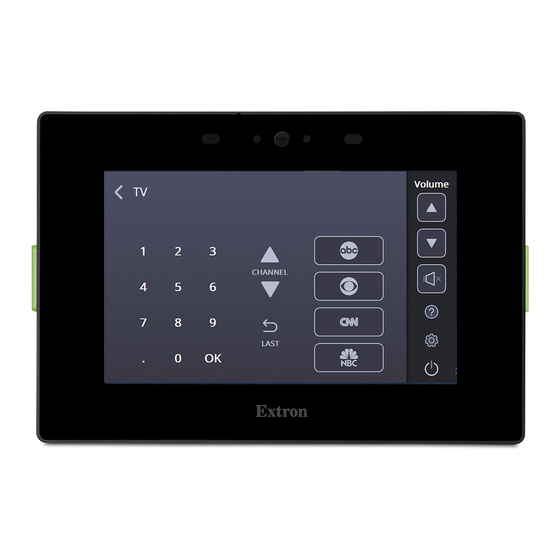

The Extron TLP Pro 525M, 725M, and 1025M are three series of wall mounted, capacitive touchscreen, TouchLink
active matrix color LCD screens with 24-bit color depth.
The TLS 525M, 725M, and 1025M have identical features but use the Room Agent software to coordinate room scheduling.
The TLP Pro 525M and TLS 525M models have a 5 inch screen with a 800x480 resolution.
The TLP Pro 725M and TLS 725M models have a 7 inch screen with a 1024x600 resolution.
The TLP Pro 1025M and TLS 1025M models have a 10.1 inch screen with a 1280x800 resolution.
This guide provides instructions for experienced installers to mount and install these TouchLink panels.
Setup Checklist
Get Ready
Download and install the latest version of the following software onto the PC being used to configure the TouchLink panel:
Toolbelt — Provides device discovery, device information, firmware updates, and configuration of network settings, system
utilities, and user management for TouchLink Pro devices and scheduling panels.
TLP Pro touchpanels
GUI Designer — For designing layouts for Extron TouchLink Pro touchpanels and third party touch interfaces.
Global Configurator
and TouchLink panel.
Global Scripter
TLS scheduling panels
Room Agent™ — Free room booking software for configuring the panels for room scheduling.
NOTE: All five software programs and supporting documentation are available from www.extron.com.
Obtain the following network information from your network administrator:
DHCP status — (on or off). If DHCP is off, you must also obtain:
IP address
User name — This can be either admin or user .
Password — The factory configured passwords for all accounts on this device have been set to the device serial number.
Passwords can be changed during configuration. Passwords are case sensitive.
NOTE:
If the device is reset to default settings, the password is the default password configuration. The default
password is
Make a note of the TouchLink panel MAC address, which can be found on a rear-panel label.
Mount and Cable All Devices
ATTENTION:
Do not power on the TouchLink panels until you have read the Attention in the "Rear Panel Features" section of the
TLP Pro 525, 725, and 1025 Series User Guide.
Ne branchez pas les écrans tactiles avant d'avoir lu la mise en garde dans la section « Rear Panel Features » du
TLP Pro 525, 725, and 1025 Series User Guide.
Mount the units. There are several mounting options for TouchLink panels (see
Connect the TouchLink panel to a Power over Ethernet injector (see
Connect the power injector to the LAN and power it on
Set up the TouchLink Panels for Network Communication
Connect the PC that you are using for setup, the control processor, and the touchpanel to the same Ethernet subnetwork.
Use the
Setup Menu
panel.
Professional and Global Configurator Plus — For setting up and configuring the control processor
®
— Provides an integrated development environment for Extron control systems programming.
®
Subnet mask
extron (for either admin or user).
(see page 6) or Toolbelt to set the DHCP status and, if required, network addresses for the TouchLink
Gateway
Mounting
figure 5
on page 5).
(figure
5).
panels with TFT
®
on the next page).
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLP Pro x25M Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Extron electronics TLP Pro x25M Series

  • Page 1 TLP Pro x25M and TLS x25M Series TouchLink Panels Setup Guide Overview The Extron TLP Pro 525M, 725M, and 1025M are three series of wall mounted, capacitive touchscreen, TouchLink panels with TFT ® active matrix color LCD screens with 24-bit color depth. The TLS 525M, 725M, and 1025M have identical features but use the Room Agent software to coordinate room scheduling.
  • Page 2 TLP Pro x25M and TLS x25M Series TouchLink panels • Setup Guide (Continued) Configure the TouchLink Panels TLP Pro TouchLink panels — The GUI Designer Help File, the Global Configurator Help File, and the Toolbelt Help File provide step-by-step instructions and detailed information, including an introduction to the software and sections on how to start a project and configuration.
  • Page 3: Product Category

    Product Category NORTH NORTH EU/MK EU/MK AMERICA AMERICA WALL WALL NORTH NORTH AMERICA AMERICA WALL WALL NORTH NORTH AMERICA AMERICA Mounting Plates for 5 inch models (left) and 7 or 10 inch models (right) Figure 2. NOTE: The TLP Pro 725M, TLS 725M, TLP Pro 1025M, and TLS 1025M TouchLink panels use the same mounting plate. Without a wall box If the wall box is not required by local building codes, you can mount the TouchLink panel directly into drywall.
  • Page 4: Rear Panel Features

    TLP Pro x25M and TLS x25M Series TouchLink panels • Setup Guide (Continued) Status lights — Two LED light bars, one on either side of the screen (see figure 3 on the previous page). TLS models — The LEDs light green when the room is currently available and red when the room is currently booked. They cannot be programmed.
  • Page 5 Product Category MENU Button (see figure 4 on the previous page)— Activates the setup menu (see Setup Menu on the next page). RESET Button — Pressing the Reset button allows the unit to be reset in any of three different modes (for an overview, see Reset Modes, on the next page).
  • Page 6: Reset Modes: A Brief Summary

    Extron Safety and Regulatory Compliance Guide on the Extron website. www.extron.com © 2020 - 2021 Extron Electronics — All rights reserved. All trademarks mentioned are the property of their respective owners. Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876 68-2831-55 Rev.
