Procedure
Step 1 On the LCD of each power unit, choose Power Unit N Info. > Settings > Dry
Contact Set, set MUE05A connection to Enable, and set BCB connection [OL]
and Battery breaker [STA] to Enable.

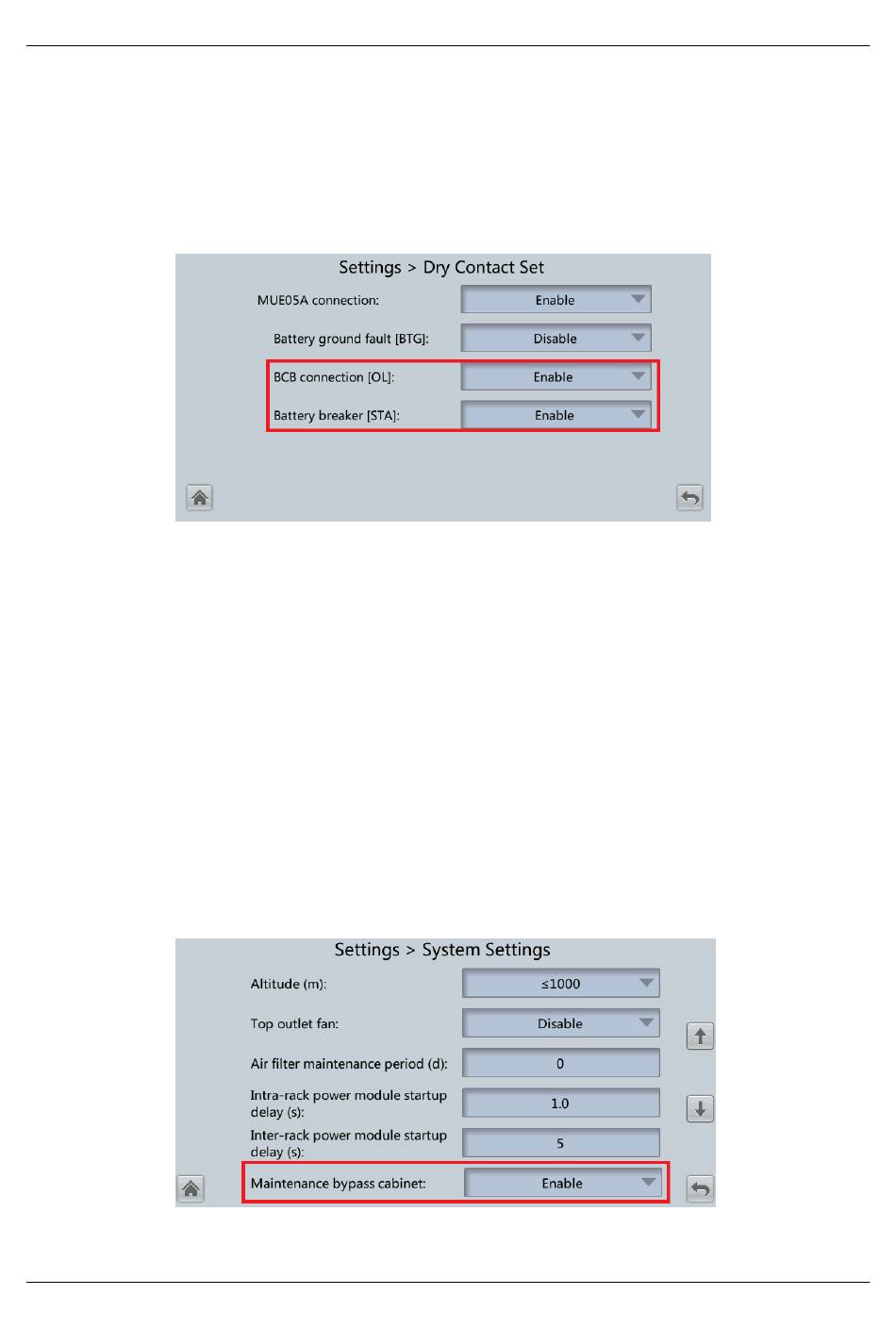

Figure 5-3 BCB connection setting
----End
5.1.6 (Optional) Setting Parameters for the Maintenance
Bypass Unit
Prerequisites
The maintenance bypass cabinet has been configured.
Procedure
Step 1 Choose System Info > Settings > System Settings. Set Maintenance bypass
cabinet to Enable.
Figure 5-4 Setting parameters for the maintenance bypass cabinet
----End
