B l u e B o x – M e a s u r e m e n t D a t a T r a n s m i s s i o n U S B
Appendix E – Measurement Data Transmission with the Program USBImport
This program transfers measurement data from a BlueBox in a database by means of a USB memory stick
If not otherwise specified at installation, the USBImport.exe is located in the folder C:\Program
Files\BlueBox.
Precondition:
1. The USB memory stick containing a folder "Database
into the USB port of a BlueBox. The BlueBox then automatically transfers all measurement data of
the BlueBox into the "Database" folder.
2. The BlueBox was set up on the target system with the BlueBox SQL Software (see Manual BlueBox
PC Software). Hence there is already an allocated database.
Plug the USB memory stick into a USB port of your computer. Start the program USBImport.exe.

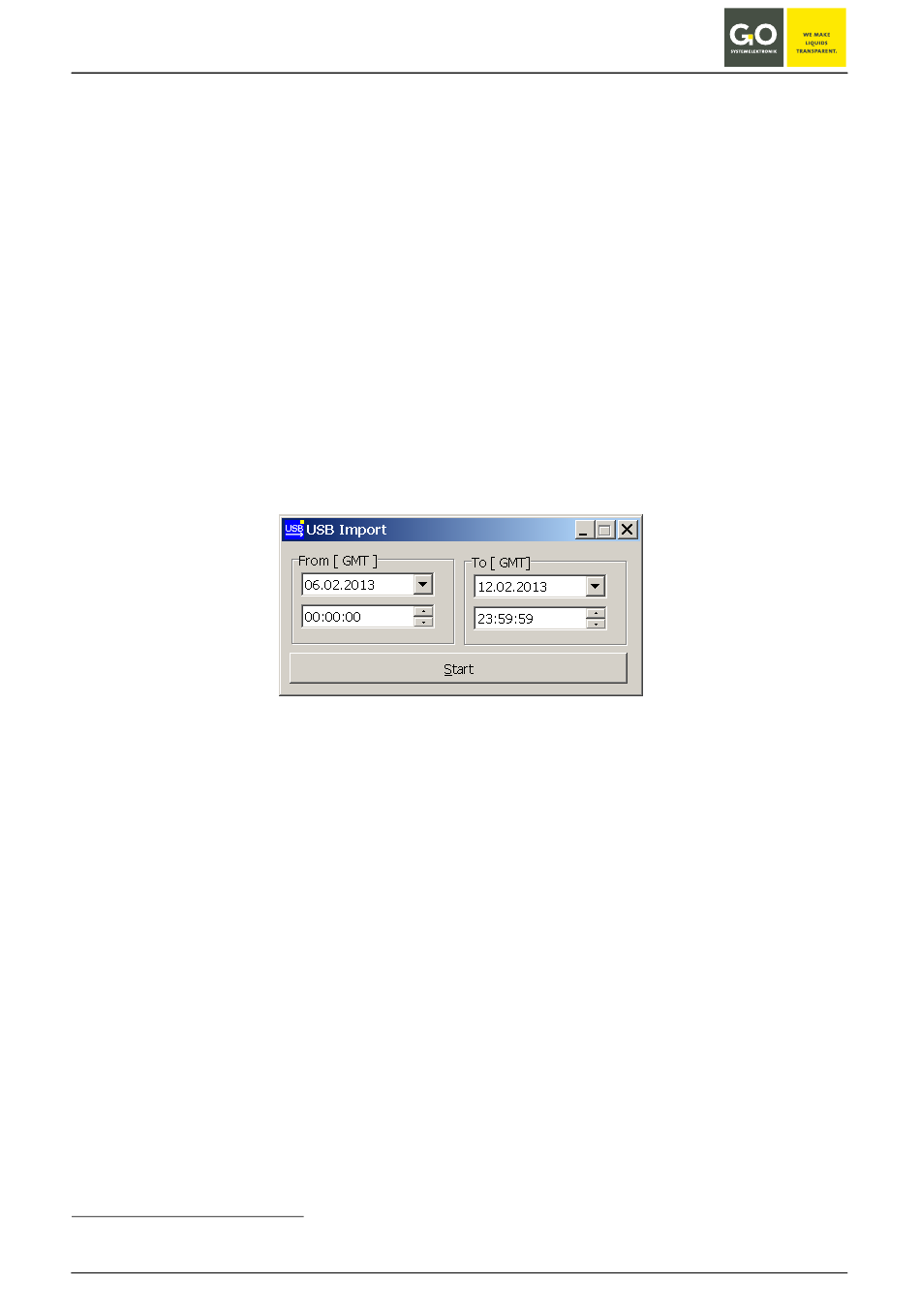

The following window appears:
Select a time range. Measurement data that had been recorded during this period is transmitted into the cor-
rect database after click on <Start>.
1 strictly spoken: USB storage device
note upper and lower case
2
GO Systemelektronik GmbH
The program USBImport is part of the BlueBox PC Software.
