B l u e B o x
4
1
3
2
4
1
3
2
1
2
4
1
3
GO Systemelektronik GmbH

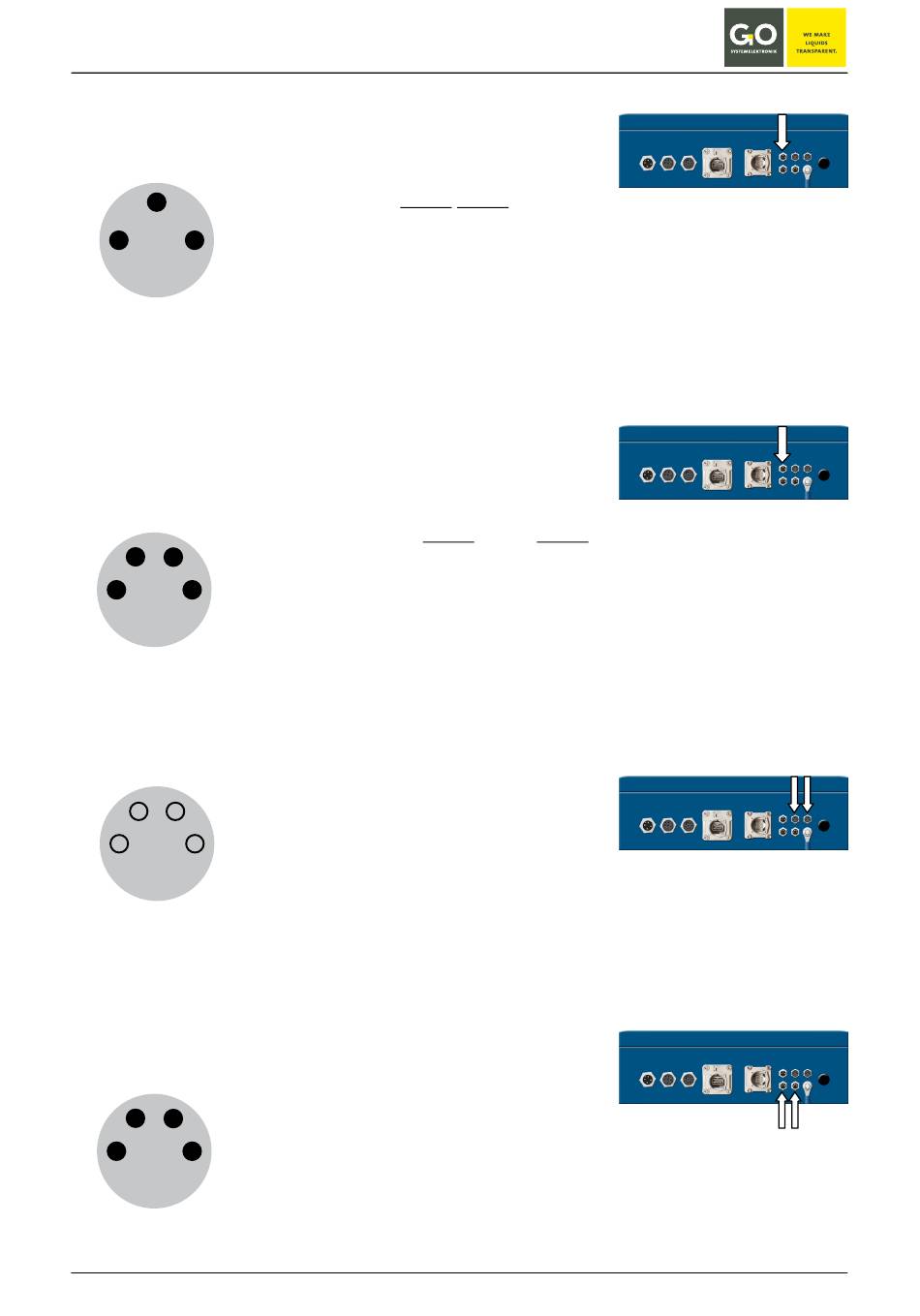

RS-232 or RS-485
panel plug (M8, male)
RS-232
1
GND
3
RX
4
TX
RS-232 or RS-485
with optional power supply
panel plug (M8, male)
RS-232
1
GND
2
12 VDC
3
RX
4
TX
Current output 4 – 20 mA
panel socket (M8, female)
1
+24 VDC
2
I-Return
Pulse input
panel plug (M8, male)
1
24 V
2
PNP
3
NPN
4
GND
Faluner Weg 1
24109 Kiel
www.go-sys.de
RS-485
GND
RX/TX-
RX/TX+
RS-485
GND
12 VDC
RX/TX-
RX/TX+
Germany
Tel.: +49 431 58080-0
info@go-sys.de
Current output 1 2
Pulse input 1 2
Page 16 / 99
Fax: -58080-11
