B l u e B o x

3.3 Connections BlueBox T4 Basic

3.3.1 Connection Options BlueBox T4 Basic

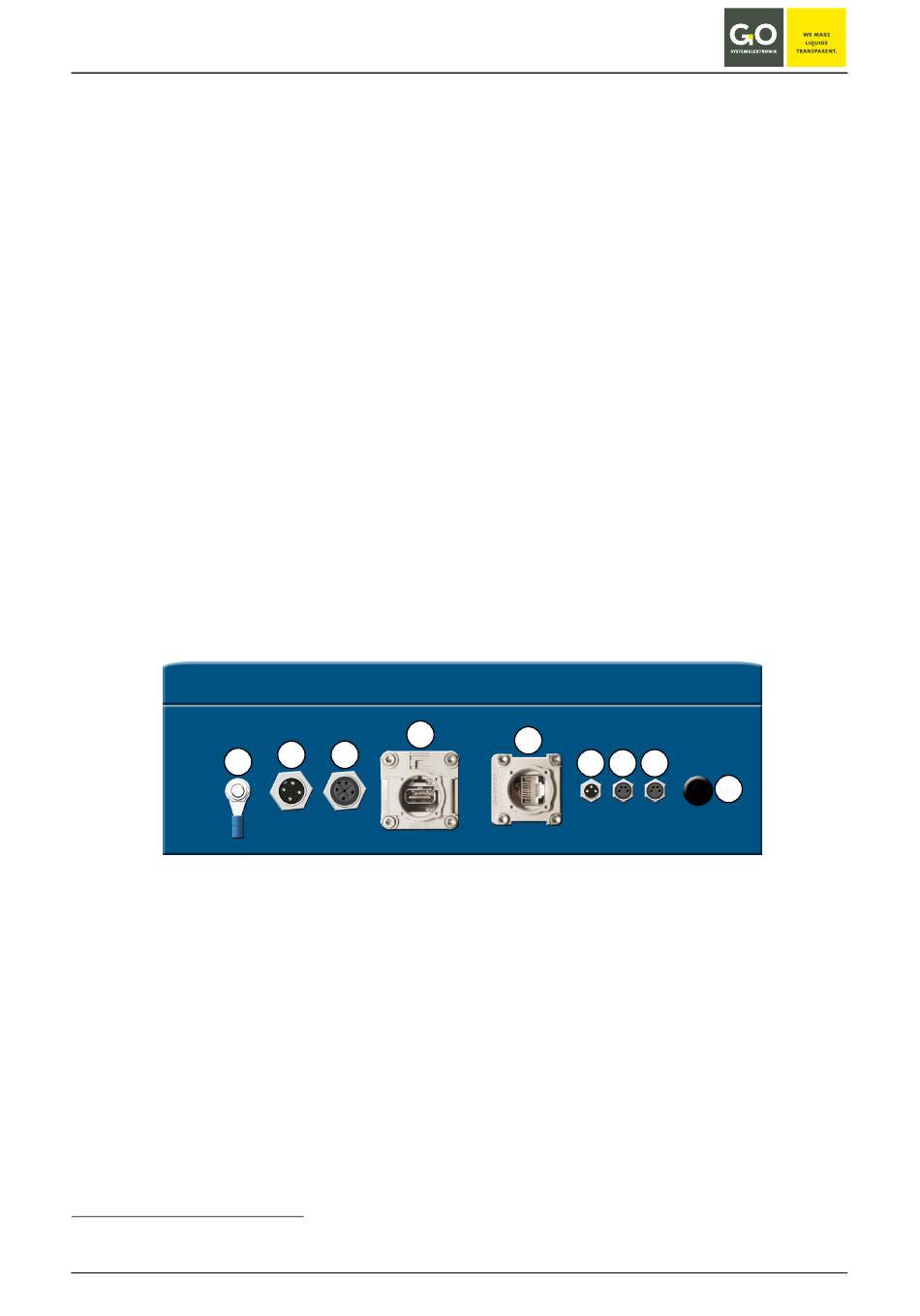

The BlueBox has the following connection options:
1.
Ground connection
2.
Power supply (24 VDC) via a 4-pin M12 panel plug (male)
3.
CAN-bus connection via a 5-pin M12 panel socket (female)
Connection of BlueBox sensor-/actuator modules via a 4-wire CAN-bus connection cable
4.
USB connection
Please note: The USB port at the BlueBox is designed for data export and for firmware update
5.
L AN connection for LAN cables in standard or cross-link design (see also 3.5 LAN-connection)
6.
Serial interface connection via a 3-pin M8 panel plug (male), RS-232 or RS-485, the selection is set
with the associated jumpers
7.
Current output 1 connection via a 4-pin M8 panel socket (female), 4 to 20 mA
8.
Current output 2 connection via a 4-pin M8 panel socket (female), 4 to 20 mA
9.
Borehole (with cap) for an antenna or cable modem
1
Modems (optional):
1
Details on request from GO Systemelektronik
see 3.8 Jumper Position RS-232/RS-485 and RS-485 Termination at the BlueBox
2
GO Systemelektronik GmbH
2
4
2
3
UMTS modem with antenna
Analogue modem
ISDN modem
Faluner Weg 1
24109 Kiel
www.go-sys.de
5
6
Germany
Tel.: +49 431 58080-0
info@go-sys.de
7
8
9
Page 17 / 99
Fax: -58080-11
.
1
