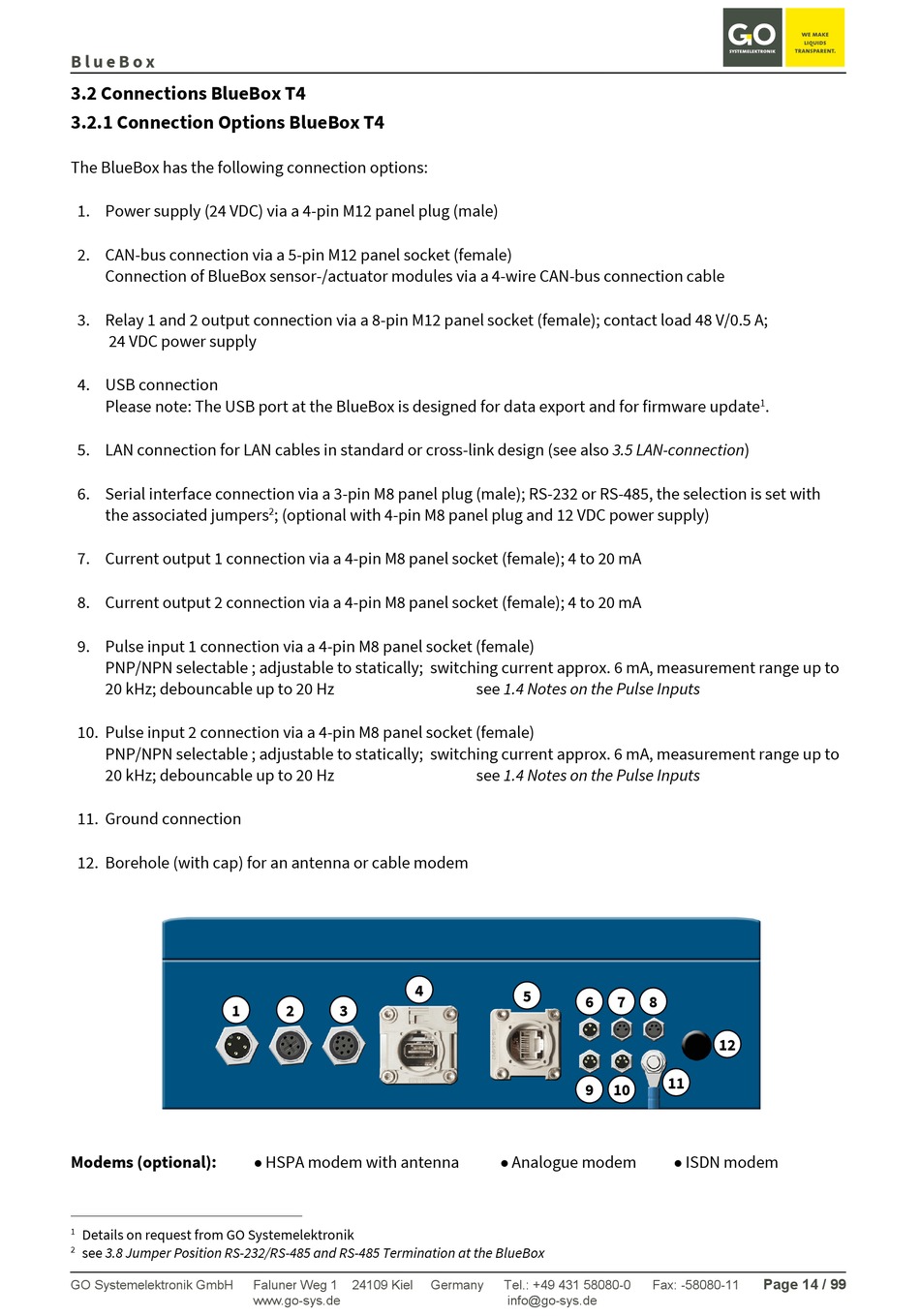

3.2 Connections BlueBox T4

3.2.1 Connection Options BlueBox T4

The BlueBox has the following connection options:
1. Power supply (24 VDC) via a 4-pin M12 panel plug (male)
2. CAN-bus connection via a 5-pin M12 panel socket (female)
Connection of BlueBox sensor-/actuator modules via a 4-wire CAN-bus connection cable
3. Relay 1 and 2 output connection via a 8-pin M12 panel socket (female); contact load 48 V/0.5 A;
24 VDC power supply
4. USB connection
Please note: The USB port at the BlueBox is designed for data export and for firmware update
5. LAN connection for LAN cables in standard or cross-link design (see also 3.5 LAN-connection)
6. Serial interface connection via a 3-pin M8 panel plug (male); RS-232 or RS-485, the selection is set with
the associated jumpers
7. Current output 1 connection via a 4-pin M8 panel socket (female); 4 to 20 mA
8. Current output 2 connection via a 4-pin M8 panel socket (female); 4 to 20 mA
9. Pulse input 1 connection via a 4-pin M8 panel socket (female)
PNP/NPN selectable ; adjustable to statically; switching current approx. 6 mA, measurement range up to
20 kHz; debouncable up to 20 Hz
10. Pulse input 2 connection via a 4-pin M8 panel socket (female)
PNP/NPN selectable ; adjustable to statically; switching current approx. 6 mA, measurement range up to
20 kHz; debouncable up to 20 Hz
11. Ground connection
12. Borehole (with cap) for an antenna or cable modem
