B l u e B o x

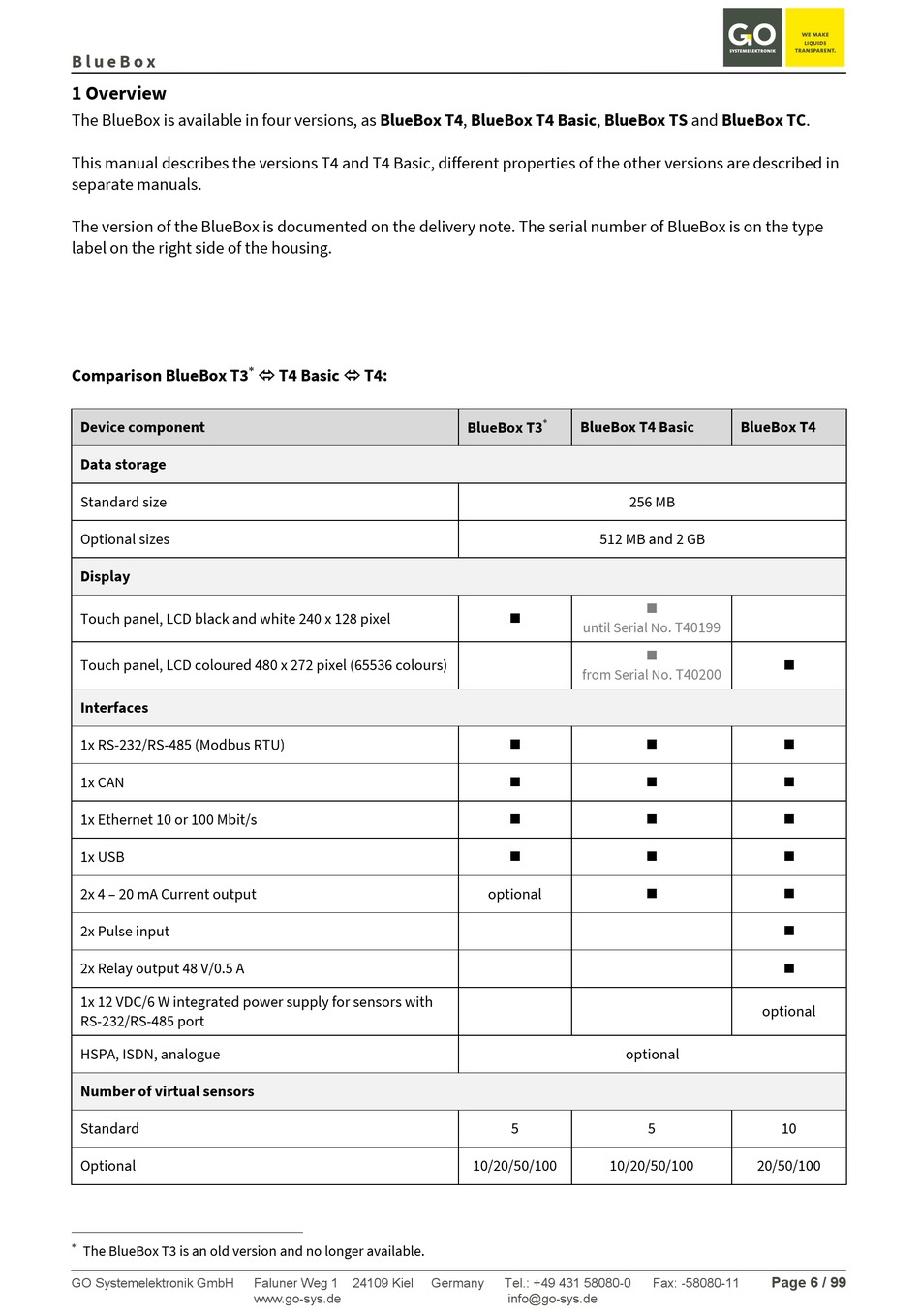

1 Overview

The BlueBox is available in four versions, as BlueBox T4, BlueBox T4 Basic, BlueBox TS and BlueBox TC.
This manual describes the versions T4 and T4 Basic, different properties of the other versions are described in
separate manuals.
The version of the BlueBox is documented on the delivery note. The serial number of BlueBox is on the type
label on the right side of the housing.
Comparison BlueBox T3
Device component
Data storage
Standard size
Optional sizes
Display
Touch panel, LCD black and white 240 x 128 pixel
Touch panel, LCD coloured 480 x 272 pixel (65536 colours)
Interfaces
1x RS-232/RS-485 (Modbus RTU)
1x CAN
1x Ethernet 10 or 100 Mbit/s
1x USB
2x 4 – 20 mA Current output
2x Pulse input
2x Relay output 48 V/0.5 A
1x 12 VDC/6 W integrated power supply for sensors with
RS-232/RS-485 port
HSPA, ISDN, analogue
Number of virtual sensors
Standard
Optional
The BlueBox T3 is an old version and no longer available.
GO Systemelektronik GmbH
 T4 Basic  T4:
Faluner Weg 1
24109 Kiel
www.go-sys.de
BlueBox T3
BlueBox T4 Basic
512 MB and 2 GB
until Serial No.
from Serial No.
optional
5
10/20/50/100
Germany
Tel.: +49 431 58080-0
info@go-sys.de
BlueBox T4
256 MB
T40199
T40200
optional
optional
5
10
10/20/50/100
20/50/100
Page 6 / 99
