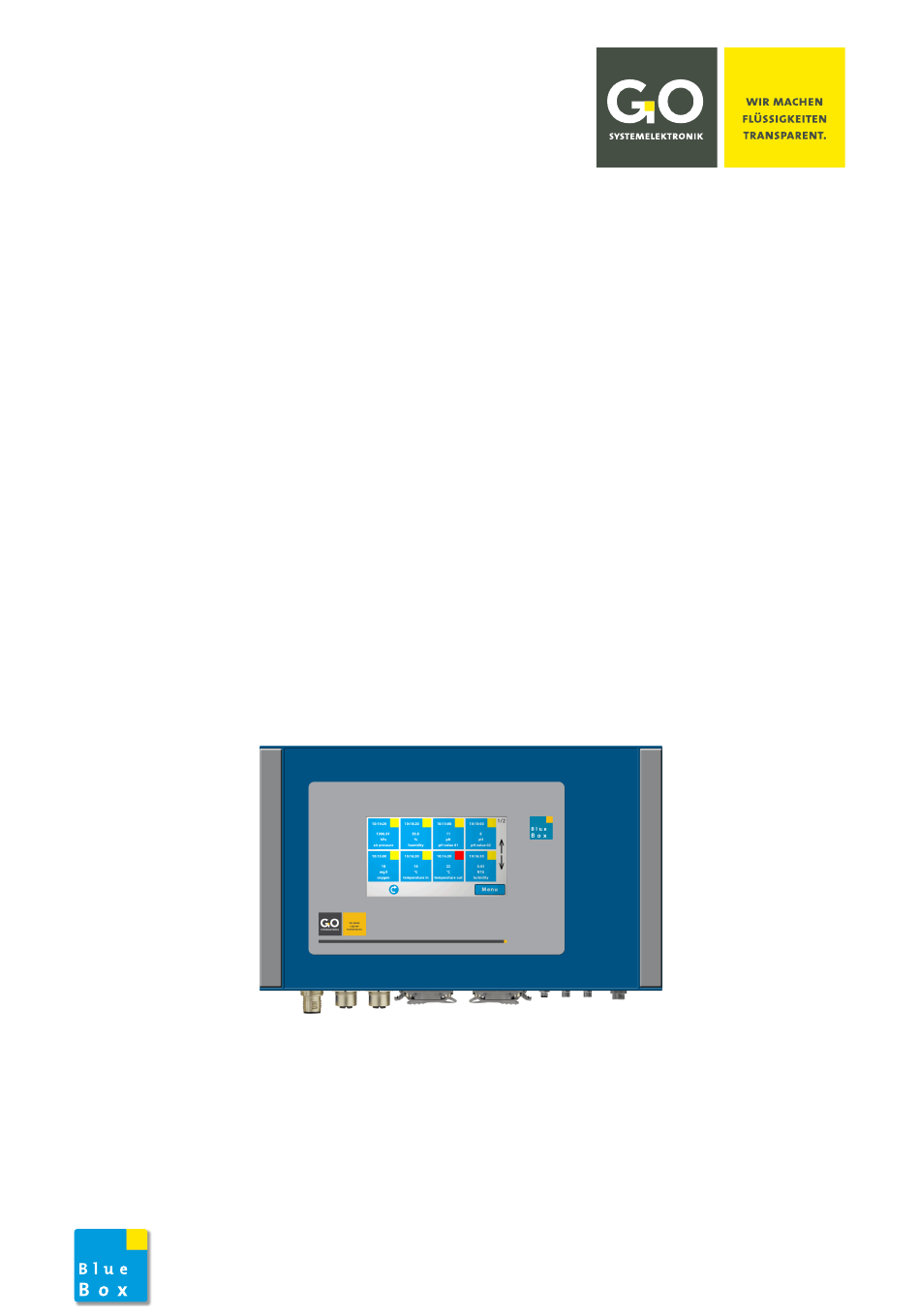

  • Page 1 Manual BlueBox T4 Version of this manual: 1.8 en www.go-sys.de...
  • Page 2 GO Systemelektronik GmbH. Changes GO Systemelektronik GmbH retains the right to modify the contents of the manual without prior notice. Liability exclusion GO Systemelektronik GmbH takes no responsibility for correct system operation under all possible operating conditions.
  • Page 3 B l u e B o x blank page Page 3 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de info@go-sys.de...

  • Page 4: Table Of Contents

    3.2.2 Connector Pin Assignment at the BlueBox T4 ..........................15 3.3 Connections BlueBox T4 Basic ................................17 3.3.1 Connection Options BlueBox T4 Basic ............................17 3.3.2 Connector Pin Assignment at the BlueBox T4 Basic ........................18 3.3 Connecting of the Power Supply ................................19 3.5 LAN-connection ..................................... 20 3.6 Note for the IP Code ....................................
  • Page 5 Appendix G – Power Supply 150 W Switch 110/230 VAC ..........................92 Appendix H – Mainboard Connectors BlueBox T4 ............................94 Appendix I – Mainboard Connectors BlueBox T4 Basic ..........................96 Appendix J – Status and Error Messages ............................... 98 Appendix K –...

  • Page 6: Overview

    B l u e B o x 1 Overview The BlueBox is available in four versions, as BlueBox T4, BlueBox T4 Basic, BlueBox TS and BlueBox TC. This manual describes the versions T4 and T4 Basic, different properties of the other versions are described in separate manuals.

  • Page 7: Essential Properties Of The Bluebox System

    It is possible to connect multiple sensors/actuators to a sensor module. A star circuit can only be used with a repeater (see 5 Connection of the CAN-bus repeater). optional Page 7 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...
  • Page 8 B l u e B o x System setup: Network setup: Page 8 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de info@go-sys.de...

  • Page 9: Technical Data Bluebox T4

    B l u e B o x 1.2 Technical Data BlueBox T4 Computer: PC 104, 200 MHz to 500 MHz Article-No. 486 0004 Operation system: Embedded Linux® Main memory 256 MB Display: Touchpanel 480 x 272 pixel; coloured Storage media: Industrial CompactFlash card 256 MB;...

  • Page 10: Technical Data Bluebox T4 Basic

    B l u e B o x 1.3 Technical Data BlueBox T4 Basic Computer: PC 104, 200 MHz to 500 MHz Article-No. 486 0003 Operation system: Embedded Linux® Main memory 256 MB Display black and white: Touchpanel 240 x 128 pixel...

  • Page 11: Notes On The Pulse Inputs

    The pulse inputs 1 and 2 are provided for the connection of PNP or NPN encoders. The delivery state is NPN, the selection is set with the associated jumpers. see Appendix H – Mainboard Connectors BlueBox T4 or bottom label in the BlueBox •...

  • Page 12: Safety Notes And Warnings

    • was exposed to improper transport conditions. In cases of doubt give notice to GO Systemelektronik GmbH. If necessary send the device to GO Systemelek- tronik for reparation respectively maintenance. Page 12 / 99...

  • Page 13: Installation

    A great advantage of the BlueBox is their design flexibility. Therefore construction of installation will vary by application. A description of the structure and assembly of the BlueBox can only serve as an example. ∗ UMTS, ISDN, analogue Page 13 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 14: Connections Bluebox T4

    B l u e B o x 3.2 Connections BlueBox T4 3.2.1 Connection Options BlueBox T4 The BlueBox has the following connection options: 1. Power supply (24 VDC) via a 4-pin M12 panel plug (male) 2. CAN-bus connection via a 5-pin M12 panel socket (female) Connection of BlueBox sensor-/actuator modules via a 4-wire CAN-bus connection cable 3.

  • Page 15: Connector Pin Assignment At The Bluebox T4

    B l u e B o x 3.2.2 Connector Pin Assignment at the BlueBox T4 Power supply 24 VDC panel plug (M12, male) +24 VDC GND 24 V CAN-bus panel socket (M12, female) CAN-H CAN-L +24 VDC GND 24 V...
  • Page 16 (M8, female) +24 VDC I-Return Pulse input panel plug (M8, male) 24 V Pulse input 1 2 Page 16 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de info@go-sys.de...

  • Page 17: Connections Bluebox T4 Basic

    B l u e B o x 3.3 Connections BlueBox T4 Basic 3.3.1 Connection Options BlueBox T4 Basic The BlueBox has the following connection options: Ground connection Power supply (24 VDC) via a 4-pin M12 panel plug (male) CAN-bus connection via a 5-pin M12 panel socket (female)

  • Page 18: Connector Pin Assignment At The Bluebox T4 Basic

    B l u e B o x 3.3.2 Connector Pin Assignment at the BlueBox T4 Basic Power supply 24 VDC panel plug (M12, male) +24 VDC GND 24 V CAN-bus panel socket (M12, female) CAN-H CAN-L +24 VDC GND 24 V...

  • Page 19: Connecting Of The Power Supply

    Stick the at 24 VDC power supply cable socket into the in the corresponding panel plug of the BlueBox. Page 19 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...

  • Page 20: Lan-Connection

    USB- and LAN-plugs with protection code IP65 or higher The plugs and protection caps delivered by GO Systemelektronik have protection code IP65. USB- and LAN plugs with protection code IP65 can be ordered from GO Systemelektronik. ∗ except of course the ground connection...

  • Page 21: Can-Bus Termination At The Bluebox

    If the BlueBox is factory presetted to RS-485, then the interface is terminated by the factory. ∗ see Appendix F – Opening of a BlueBox Housing Page 21 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 22: Connection Of Sensor And Actuator Modules

    (Controller Area Net- work). The connection at the BlueBox is a The other end of the CAN-connection cable can be M12-male-socket (see 3.2 Connections BlueBox T4 connected to a sensor-/actuator module in two respectively 3.3 Connections BlueBox T4 Basic) ways: In the most cases the CAN-network is built as a line-structure.

  • Page 23: Connection Via M12 Male Plug

    339 0001 sensor connection via Y-splitter M 12 male plug 338 1100 (pass module) M 12 Y-splitter 338 1500 Page 23 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de info@go-sys.de...

  • Page 24: Connection Via Spring Clips

    (YE) CAN-Low white (WH) +24 V DC brown (BN) 24 V GND sensor connection with spring clips (final module) Page 24 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de info@go-sys.de...

  • Page 25: Termination Of The Can-Bus

    If the Blue Box is in the middle of a CAN-bus, the termination of the BlueBox must be switched off. see: 3.5 CAN-bus Termination and RS-485 Termina- tion at the BlueBox Page 25 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 26: Checking The Termination

    (for example, only the BlueBox is terminated) correct termination >120 Ω no module is terminated or cable break Page 26 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de info@go-sys.de...

  • Page 27: Connection Of The Can-Bus Repeater

    The figure below shows which connections of the CAN-bus inside the CAN repeater have to be terminated. The figure can only be seen as an example. T: Termination with DIP switch DIP switch at "ON" Page 27 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 28: The Configuration Data Sheet

    6 The Configuration Data Sheet The configuration data sheet contains the necessary settings to run the BlueBox. ∗ Example BlueBox TS ∗ The BlueBox TS is a BlueBox T4 with build-in spectrometer. Page 28 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...
  • Page 29 Is needed to access the BlueBox via the AMS software.  set at the factory, not changeable ∗ 14111 / or when encryption is enabled 14110 Page 29 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...
  • Page 30 Serial number of the Zeiss spectrometer module  set at the factory, not changeable IP-Address of the GO webserver (default address) changeable only at the default address Page 30 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 31: Switching On The Bluebox And Password Input

    At delivery the touch panel is calibrated and ready for use. After a longer storage it may be necessary to adjust for the touch panel (see Appendix A). The setup of virtual sensors is done with the AMS software, see manual BlueBox PC Software. Page 31 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...
  • Page 32 < Verifies the password and switches to the System menu. <– If the password is incorrect, you receive an error message. Page 32 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 33: The Menu Operation

    8 The Menu Operation The BlueBox T4 has a coloured display. The BlueBox T4 Basic has in newer versions a coloured display, versions with black and white display are no longer available. The operation at the black and white display is almost identical to the operation on the colour display and differs most in the Parameter display (see 8.1 Parameter Display and following).

  • Page 34: Parameter Display Single

    Cycling off: In the upper right corner time and date of the last measurement is displayed. The bar graph on the left side of the display shows the current measured value. Page 34 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...

  • Page 35: Parameter Display 6-Way

    In the upper left corner you see the page number of the current display and the number of pages (in this case 1/2). In the upper right corner time and date is displayed. Page 35 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...

  • Page 36: Parameter Display 8-Way (Tiles)

    When there are current customer defined error messages, this button appears left of the menu button. The button calls up a list of current customer defined error messages . Switches to the Main menu. M enu Page 36 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 37: Main Menu

    Switches to the menu of the user variables. User Switches to the Help menu. Help Switches back to the Parameter display. <– Page 37 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 38: System Menu

    Switches to the Display menu. Displ ay Switches to the Language menu. Language Switches back to the Main menu. <– Page 38 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 39: Network Menu

    Switches to the settings of a direct Internet connection. Internet Switches to the Info menu. Info Switches back to the System menu. Page 39 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 40: Ip-Address Input

    6 The Configuration Data Sheet Deletes the last entered character. < Saves the IP address. Switches back to the Network menu. <– Page 40 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 41: Netmask Input

    6 Configuration Data Sheet Deletes the last entered character. < Saves the netmask. Switches back to the Network menu. <– Page 41 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 42: Gateway Ip-Address (Default Gateway)

    Deletes the last entered character. < Saves the IP address of the gateway Switches back to the Network menu. <– Page 42 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 43: Timeserver Input

    Switches between the three input menus back and forth. Deletes the last entered character. Switches back to the Network menu without saving the input. Page 43 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 44: Internet Settings

    Switches to the menu of the DynDNS settings of the Internet connection. Only by D ynDNS settings a connection via GPRS/UMTS modem. For service tasks GO Systemelektronik can access from the outside to the Ser vice enabled BlueBox. Service enabled: access to the operating system functions of BlueBox...

  • Page 45: Udp Settings

    Switches to the setting of the encryption password. Password Only visible at <Encryption on>. Switches back to the menu Internet settings. <– Page 45 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 46: Setting Ip Address (Udp)

    3. BlueGate Settings: 91.221.182.141 IP Address Password BlueGate xxxxx see 6 The Configuration Data Sheet see also 8.2.1.1.5.2 Gateway Settings (Internet) Page 46 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de info@go-sys.de...

  • Page 47: Determine The Password Of The Encryption

    Switches between the three input menus back and forth. Deletes the last entered character. Switches back to the Menu UDP settings without saving the input. Page 47 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 48: Gateway Settings (Internet)

    If the BlueBox shall communicate bidirectional with a computer in the Internet, enter here the IP address of your BlueBox gateway and the associated password. IP address and password you get from GO Systemelektronik (see 6 The Configuration Data Sheet). Gateway settings 09:19:39 10.07.10...

  • Page 49: Input Gateway Settings (Internet)

    Switches between the three input menus back and forth. Deletes the last entered character. Switches back to the Menu Gateway settings (Internet) without saving the input. Page 49 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 50: Dyndns Settings

    Precondition is: 1. Your GPRS / UMTS Internet connection has a public IP address. 2. The access is not blocked by the provider. Page 50 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 51: Input Dyndns Settings

    Switches between the three input menus back and forth. Deletes the last entered character. Switches back to the Menu DynDNS without saving the input. Page 51 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 52: Info Network

    Switches to the input of the time zone. Time zone Switches to the input of the time drift. Time drift Switches back to the System menu. <– Page 52 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 53: Date Input

    -1 selection +1 Switches back to the Time menu. <– First set the time zone before you set the time. Page 53 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 54: Time Drift Input

    Switches back to the Time menu. <– Please note that the setting described here only has impact on the displayed time zone and not on the data-bound time. Page 54 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 55: Shutdown

    You can turn off the BlueBox by interrupting the power supply. If the BlueBox is not disconnected from the power supply after shutdown, it restarts again auto- matically after 10 minutes. Page 55 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...

  • Page 56: Modem Menu / Modem Settings

    (see: 8.2.1.4.3 Modem Type Settings). Switches to the Info menu of the modem settings. Info Switches back to the System menu. <– Page 56 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 57: Modem Port Setup

    USB 1 For special cases, e.g. if USB 1 is allocated to a GPS receiver. Switches back to the Modem Menu. <– Page 57 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 58: Input Of The Pin Number

    < Saves the input and switches back to the Modem Menu. Switches back to the Modem Menu without saving the input. <– Page 58 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 59: Modem Type Settings

    GPRS/UM TS GPRS/UM TS Saves the input and switches back to the Modem Menu. <– ∗ optional extra equipment Page 59 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de info@go-sys.de...

  • Page 60: Umts Settings

    BlueBox other BlueBoxes send measured values. Please note that the connected BlueBoxes must use the IP address of the routing BlueBox as the address of the default gateway see 8.2.1.1.3). Page 60 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...

  • Page 61: Input Umts Settings

    Menu UMTS settings. put menus back and forth. Deletes the last entered character. Switches back to the Menu UMTS settings without saving the input. Page 61 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 62: Modem Info (Umts)

    Switches to the information menu of the GPS connection, here are the relevant GPS data Info listed. Switches back to the System menu <– Page 62 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 63: Gps Port Setup

    GPS module at serial interface via CAN-bus CAN3 Interface: CAN-bus serial 3 CAN3 Switches back to the GPS menu. <– Page 63 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 64: Display

    <– Appears only at a BlueBox with a colour display. The status of an actuators can also be understood as a measurement value. Page 64 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 65: Language Settings

    Polski Selection menu language Turkish, the button is also a status indicator. Türkçe Switches back to the system menu. <– Page 65 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 66: Sensors List

    The two internal current outputs are listed as sensors. The calibration of the current outputs is done only with the AMS software (AMS is part of the BlueBox PC Software). see also 8.2.5 Current Output Page 66 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...

  • Page 67: Sensor Menu

    Cal. mode Only visible with sensors, in which a selection of calibration mode is possible. Switches back to the Sensor menu. <– Page 67 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 68: Interval And Average

    < Saves the input and switches back to the Sensor menu. Switches back to the Sensor menu without saving the input. <– Page 68 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 69: Calibration

    A detailed description of the calibration can be found at: Appendix B – Calibrating of a pH Sensor Appendix C – Calibration of an Oxygen Sensor Page 69 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...
  • Page 70 Displays the measurement values of the previous day. < Displays the measurement values of the nest day. > Switches to the Sensor menu. <– Page 70 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 71: Diagram Display (Sensor Values)

    Measurement values over the past 21 - 24 hours (depending on the range of values). Pushing on the display switches to the sensor menu. Page 71 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 72: Sensor Info

    Unit unit of the parameter Last update date of the last measurement Switches back to the Sensor menu. <– Page 72 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de info@go-sys.de...

  • Page 73: Selection Calibration Mode

    B l u e B o x – M e n u O p e r a t i o n 8.2.2.1.6 Selection Calibration Mode Sensor menu 8.2.2.1 Cal. mode Here you can set the calibration mode of a sensor. GO Systemelektronik recommends using the default setting. One point calib ration y0=0 One point calib ration y0=fix Two point calib ration <–...

  • Page 74: User Variables

    Saves the input and switches back to the menu of the user variable. Switches back to the menu of the user variable without saving the entry. <– Page 74 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...

  • Page 75: Actuators List

    Switches to the menu of the second current output. Current output 2 see 8.2.5 Current Output Scrolls the list. Switches back to the Main menu. Page 75 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 76: Actuator Menu

    Selects the actuator for the multiple parameter display or not. Selected see also 8.2.1.6 Display Selected Switches back to the Main menu. <– Page 76 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 77: Actuator Setting

    Switches the relay on, the button is also a status indicator. Switches the relay off, the button is also a status indicator. Switches back to the Actuator menu. <– Page 77 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 78: Diagram Display (Actuator)

    The update function is used for a function query and happens after each inspection interval. Switches back to the Actuator menu. <– Page 78 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 79: Current Output 1

    Switches to the menu for the selection of the calibration mode. Cal. mode see 8.2.2.1.6 Selection Calibration Mode Switches back to the Sensor/Actuator list. <– Page 79 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 80: Service Mode

    Time+ Switches back to the Main menu. <– Once the maintenance time has elapsed, the display switches back to the main menu. Page 80 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 81: Help Menu

    Serial number and firmware version of the BlueBox  Display whether an uninterruptible power supply (UPS) is connected.  Switches back to the Help menu. <– GO Systemelektronik GmbH Page 81 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...

  • Page 82: Appendix A - Adjustment Of The Touch Display

    A blinking dot appears at bottom right. touch this blinking dot -> Press the blinking dot bottom right. The adjustment is finished. Page 82 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 83: Appendix B - Calibrating Of A Ph Sensor

    In this two-point calibration it is always the lower value first and then the higher value is measured. The BlueBox calculates the calibration curve automatically. The calibration fluids are available as accessories under the article no. 418 400X from GO Systemelektronik. In addition you need clean tap water for rinsing of the electrodes between the calibration steps.
  • Page 84 At the right border of the last menu there is a quality factor displayed. Calculated from offset and slope. ∗ Buffer solution for calibration of pH sensors from GO Systemelektronik Page 84 / 99 GO Systemelektronik GmbH Faluner Weg 1...
  • Page 85 Switches back to the Calibration menu pH sensor without saving the entry. Cancel Saves the entry and switches back to the Calibration menu pH sensor. Page 85 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...
  • Page 86 Switches back to the Calibration menu pH sensor without saving the entry. Cancel Saves the entry and switches back to the Calibration menu pH sensor. Page 86 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 87: Appendix C - Calibration Of An Oxygen Sensor

    The temperature adjustment can be accelerated by immersing the sensor in water, which has approximately the temperature of the ambient air, before performing the saturation calibration. Moreover, abrupt temperature changes (e.g., by direct exposure to the sun) must be avoided. Page 87 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...
  • Page 88 [NO] ∗ If the offset calibration menu appears and the sensor should produce values > 3 mV, the sensor may be defective. Page 88 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 89: Appendix D - Bluegate Server Configuration Example

    Unencrypted communication with the BlueBox is only possible from the following networks: • 10.0.0.0/8 Class A network • 172.16.0.0/12 Class B network • 192.168.0.0/16 Class C network Page 89 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de info@go-sys.de...

  • Page 90: Appendix E - Measurement Data Transmission With The Program Usbimport

    <Start>. The program USBImport is part of the BlueBox PC Software. strictly spoken: USB storage device note upper and lower case Page 90 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 91: Appendix F - Opening Of A Bluebox Housing

    3. Open the housing by hinging the cover from the back to the front. In the cover there is the mainboard. This work must be carried out by qualified persons using suitable tools. Page 91 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...

  • Page 92: Appendix G - Power Supply 150 W Switch 110/230 Vac

    3. Open the housing by lifting the cover from front to back top. ∗ As shown in Appendix F – Opening of a BlueBox Housing on the previous page. Page 92 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...
  • Page 93 Slide switch to the right  230 VAC Slide switch to the left  110 VAC Push the slide of the switch with a suitable tool in the desired position. Page 93 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...

  • Page 94: Appendix H - Mainboard Connectors Bluebox T4

    B l u e B o x – M a i n b o a r d C o n n e c t o r s T 4 Appendix H – Mainboard Connectors BlueBox T4 BlueBox serial number beginning from T40200...
  • Page 95 B l u e B o x – M a i n b o a r d C o n n e c t o r s T 4 BlueBox serial number until T40199 Page 95 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...

  • Page 96: Appendix I - Mainboard Connectors Bluebox T4 Basic

    B l u e B o x – M a i n b o a r d C o n n e c t o r s T 4 B a s i c Appendix I – Mainboard Connectors BlueBox T4 Basic...
  • Page 97 B l u e B o x – M a i n b o a r d C o n n e c t o r s T 4 B a s i c BlueBox serial number until T40199 Page 97 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...

  • Page 98: Appendix J - Status And Error Messages

    At virtual sensors the underrun and the overrun is marked by a < or >, only the Min. Value and the Max. Value are stored. At real sensors the underrun and the overrun the measured value is displayed and stored. Page 98 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...

  • Page 99: Appendix K - Sensor Status

    53 Underrun of the lower limit of the AD converter 54 Overrun of the upper limit of the AD converter 55 General device error Page 99 / 99 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...
