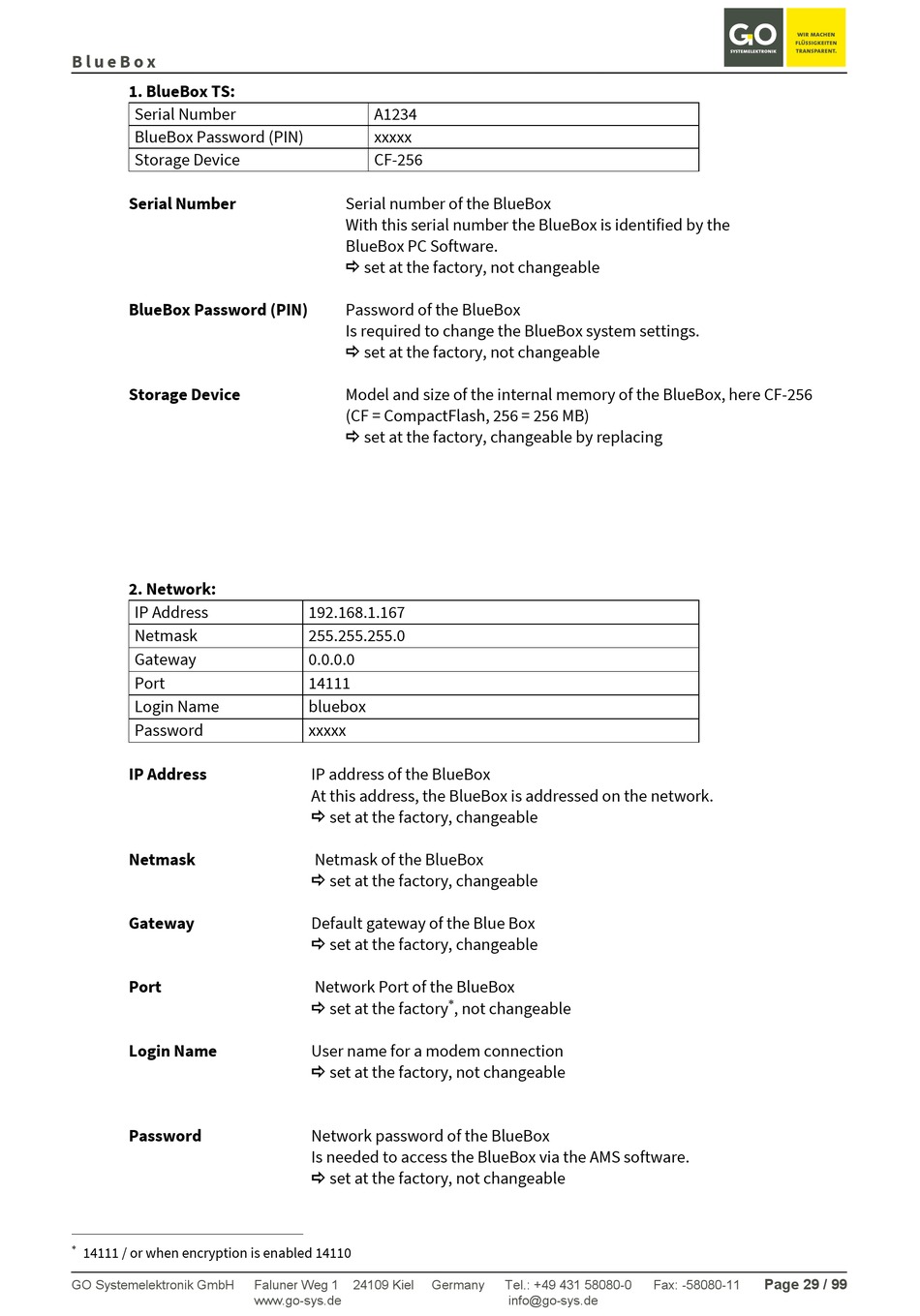

GO Systemelektronik BlueBox T4 Manual page 29

B l u e B o x
1. BlueBox TS:
Serial Number
BlueBox Password (PIN)
Storage Device
Serial Number
BlueBox Password (PIN)
Storage Device
2. Network:
IP Address
Netmask
Gateway
Port
Login Name
Password
IP Address
Netmask
Gateway
Port
Login Name
Password
∗
14111 / or when encryption is enabled 14110
GO Systemelektronik GmbH
A1234
xxxxx
CF-256
Serial number of the BlueBox
With this serial number the BlueBox is identified by the
BlueBox PC Software.
 set at the factory, not changeable
Password of the BlueBox
Is required to change the BlueBox system settings.
 set at the factory, not changeable
Model and size of the internal memory of the BlueBox, here CF-256
(CF = CompactFlash, 256 = 256 MB)
 set at the factory, changeable by replacing
192.168.1.167
255.255.255.0
0.0.0.0
14111
bluebox
xxxxx
IP address of the BlueBox
At this address, the BlueBox is addressed on the network.
 set at the factory, changeable
Netmask of the BlueBox
 set at the factory, changeable
Default gateway of the Blue Box
 set at the factory, changeable
Network Port of the BlueBox
 set at the factory
User name for a modem connection
 set at the factory, not changeable
Network password of the BlueBox
Is needed to access the BlueBox via the AMS software.
 set at the factory, not changeable
Faluner Weg 1 24109 Kiel
www.go-sys.de
∗
, not changeable
Germany Tel.: +49 431 58080-0
info@go-sys.de
Page 29 / 99
Fax: -58080-11
