B l u e B o x

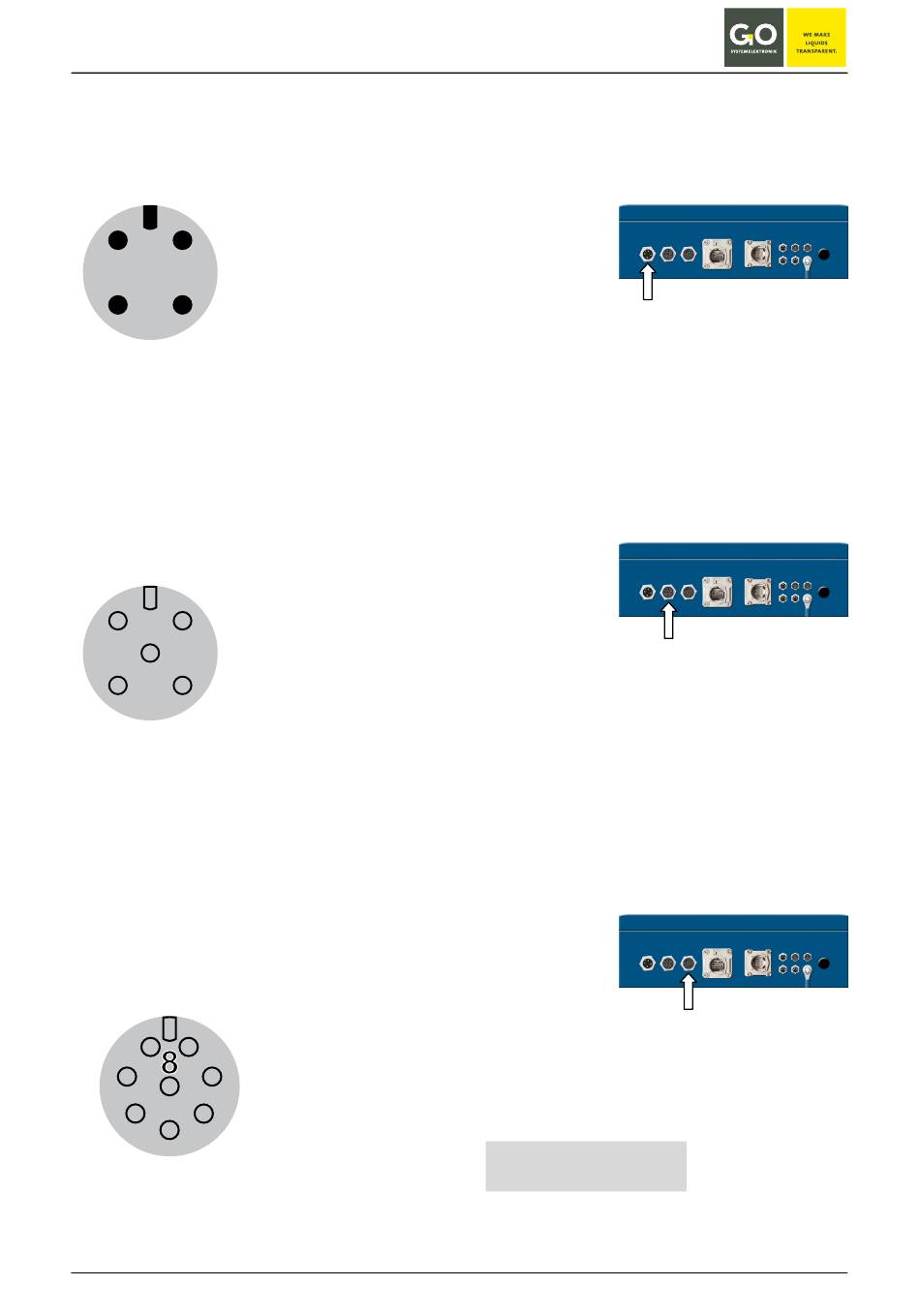

3.2.2 Connector Pin Assignment at the BlueBox T4
3
4
1
2
4
3
1
2
7
3
4
6
5
GO Systemelektronik GmbH
Power supply 24 VDC
panel plug (M12, male)
3
+24 VDC
4
GND 24 V
CAN-bus
panel socket (M12, female)
1
CAN-H
2
CAN-L
3
+24 VDC
4
GND 24 V
Relay outputs
panel socket (M12, female)
1
NC1
2
NO1
3
P1
4
NC2
5
NO2
6
P2
7
GND
8
+24 VDC
Faluner Weg 1
24109 Kiel
www.go-sys.de
normally closed 1
normally open 1
switch 1
normally closed 2
normally open 2
switch 2
7 and 8 are assigned beginning
from serial number T40200.
Germany
Tel.: +49 431 58080-0
info@go-sys.de
Page 15 / 99
Fax: -58080-11
