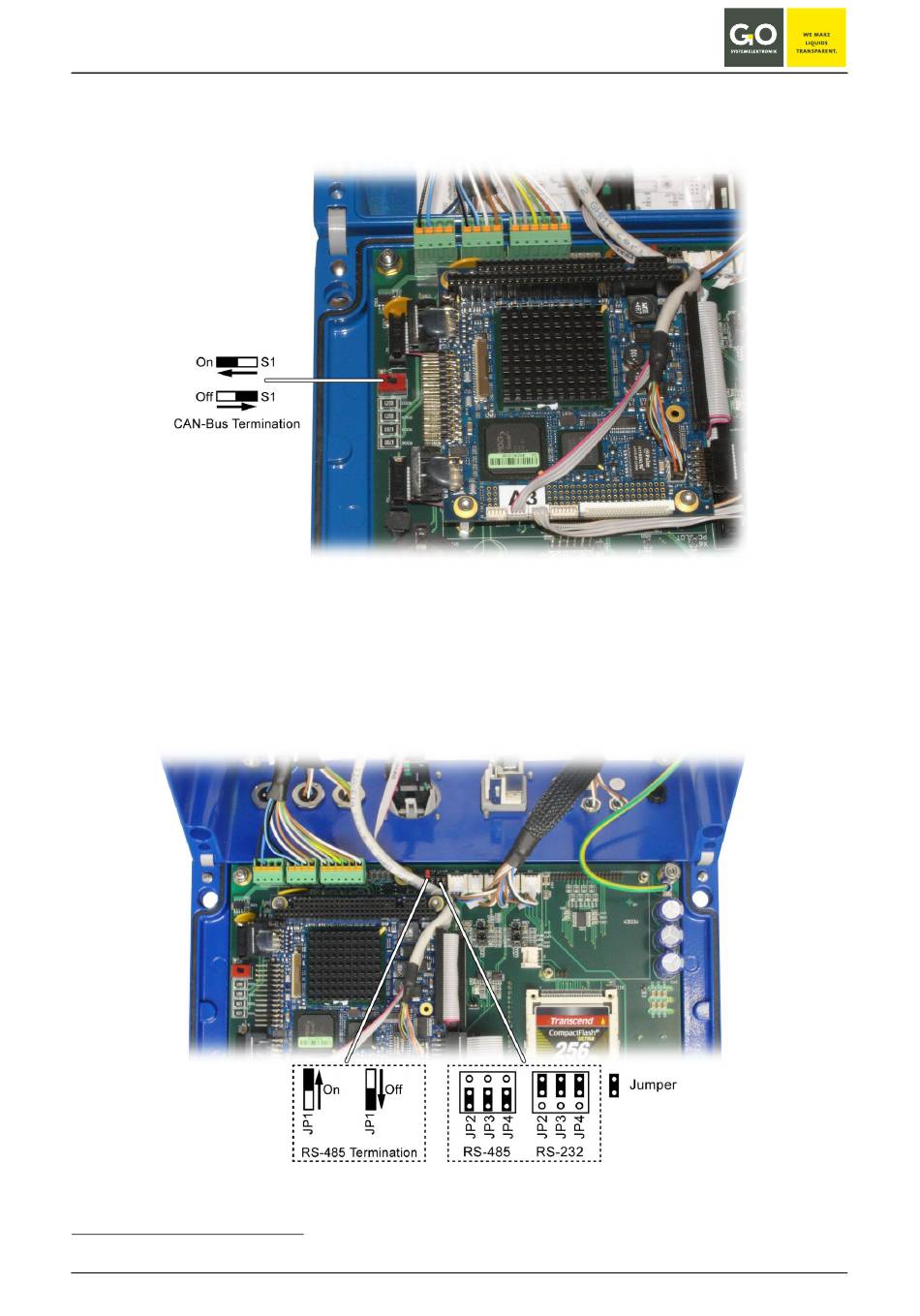

3.7 CAN-bus Termination at the BlueBox

The CAN-bus is factory preset terminated. If you need to change the termination, open the housing
the respective termination switch to either On or Off.

3.8 Jumper Position RS-232/RS-485 and RS-485 Termination at the BlueBox

The serial interface of the BlueBox is factory preset to RS-232, unless requested otherwise by the customer.
If you need to change the jumper positions, open the housing
If the BlueBox is factory presetted to RS-485, then the interface is terminated by the factory.
see Appendix F – Opening of a BlueBox Housing
GO Systemelektronik GmbH
Faluner Weg 1
24109 Kiel
www.go-sys.de
and place the jumpers correspondingly.
Germany
Tel.: +49 431 58080-0
info@go-sys.de
and set
Page 21 / 99
