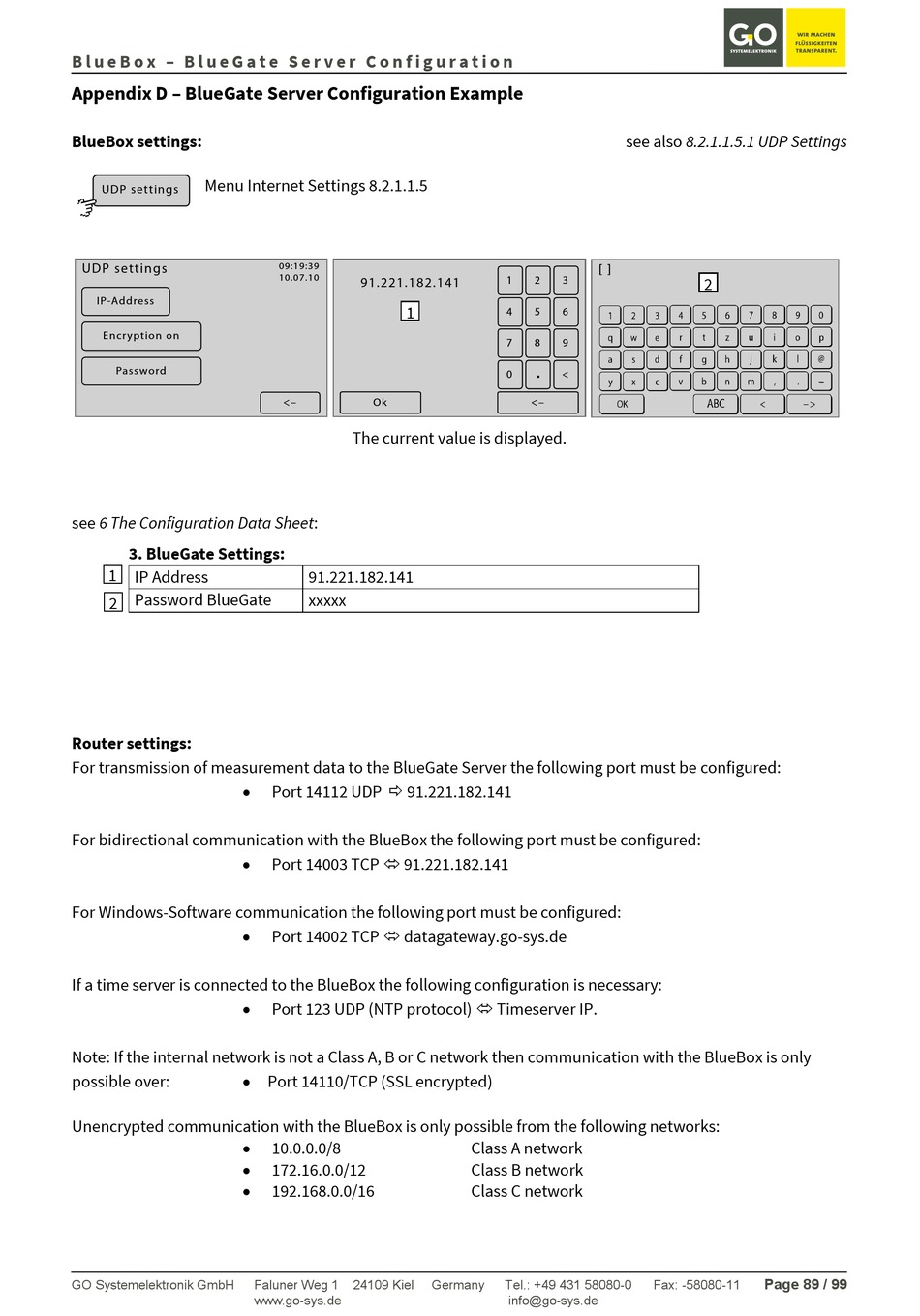

Appendix D – BlueGate Server Configuration Example
BlueBox settings:
Menu Internet Settings 8.2.1.1.5
UDP settings
UDP settings
IP-Address
Encr yption on
Password
see 6 The Configuration Data Sheet:
3. BlueGate Settings:
1
IP Address
Password BlueGate
2
Router settings:
For transmission of measurement data to the BlueGate Server the following port must be configured:
•
For bidirectional communication with the BlueBox the following port must be configured:
•
For Windows-Software communication the following port must be configured:
•
If a time server is connected to the BlueBox the following configuration is necessary:
•
Note: If the internal network is not a Class A, B or C network then communication with the BlueBox is only
possible over: • Port 14110/TCP (SSL encrypted)
Unencrypted communication with the BlueBox is only possible from the following networks:
•
•
•
