3.3 Connecting of the Power Supply

For connecting the power to the BlueBox you need an external power supply.

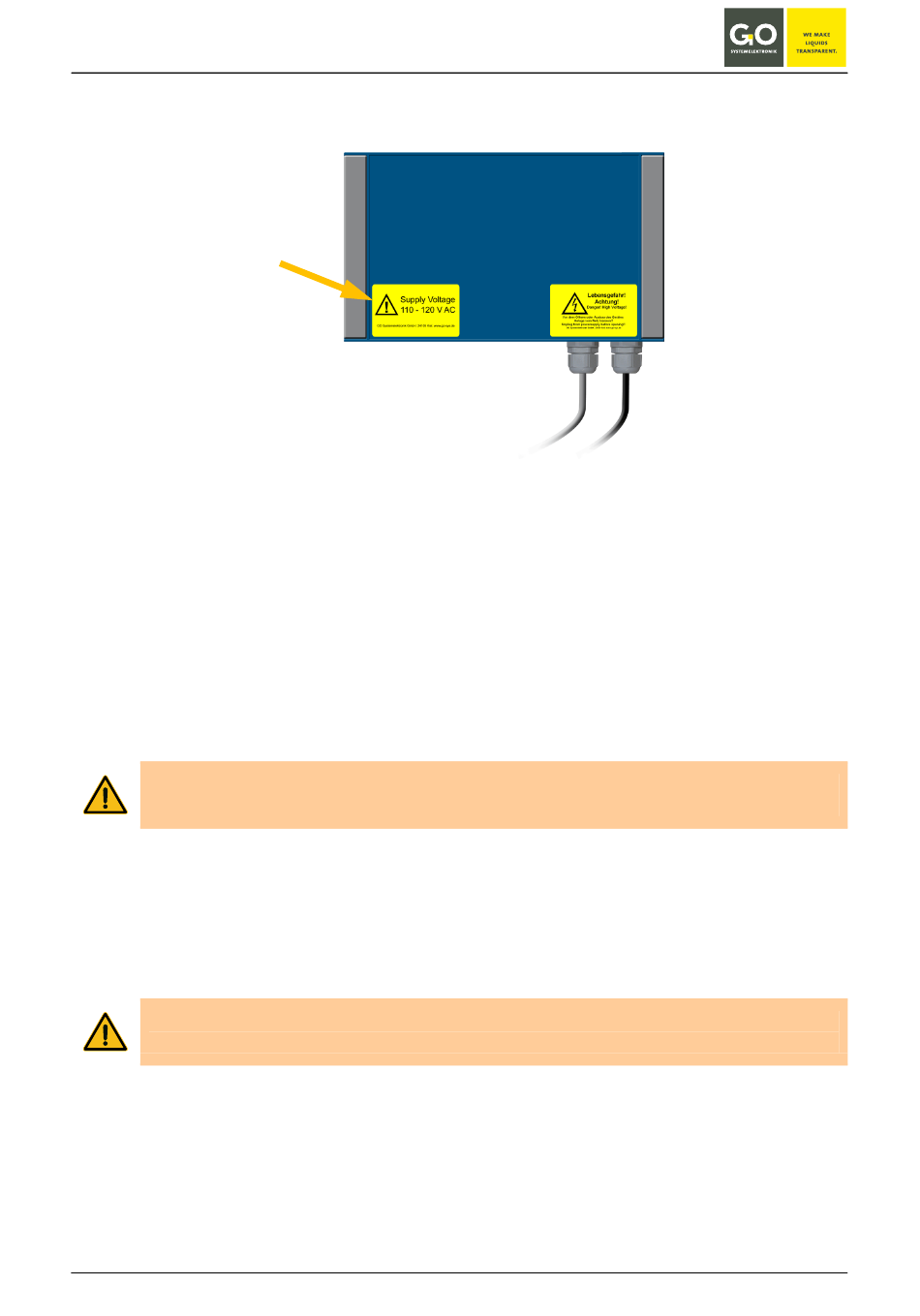

If the power supply is factory set to
110 – 120 VAC, there is a sticker here.
The power supply is available in two versions:
1. Power supply for the BlueBox (Article-No. 486 K000)
2. Power supply for the BlueBox (Article-No. 486 K001)
The BlueBox should only be installed by a qualified person using suitable tools. Incorrect installa-
tion can result in serious malfunction and could damage the instrument.
Make sure that your power grid has suitable values.
Please notice that the power supply unit is placed close to the BlueBox because the voltage is declining with
the length of the connecting cable.
Please notice that it is necessary to use the appropriate conductor cable for the environment. In
the outside area it is advisable to use a rubber cable that is approved for the usage site.
Stick the at 24 VDC power supply cable socket into the in the corresponding panel plug of the BlueBox.
GO Systemelektronik GmbH
Faluner Weg 1
24109 Kiel
www.go-sys.de
24 VDC cable
75 W
150 W
Frequency range of both versions: 0 Hz und 47 – 63 Hz
Germany
Tel.: +49 431 58080-0
info@go-sys.de
220 VAC cable
Input voltage:
88 – 264 VAC 2.
Input voltage:
176 – 264 VAC
switchable
Input voltage:
88 – 132 VAC
Page 19 / 99
