B l u e B o x – C a l i b r a t i o n p H S e n s o r

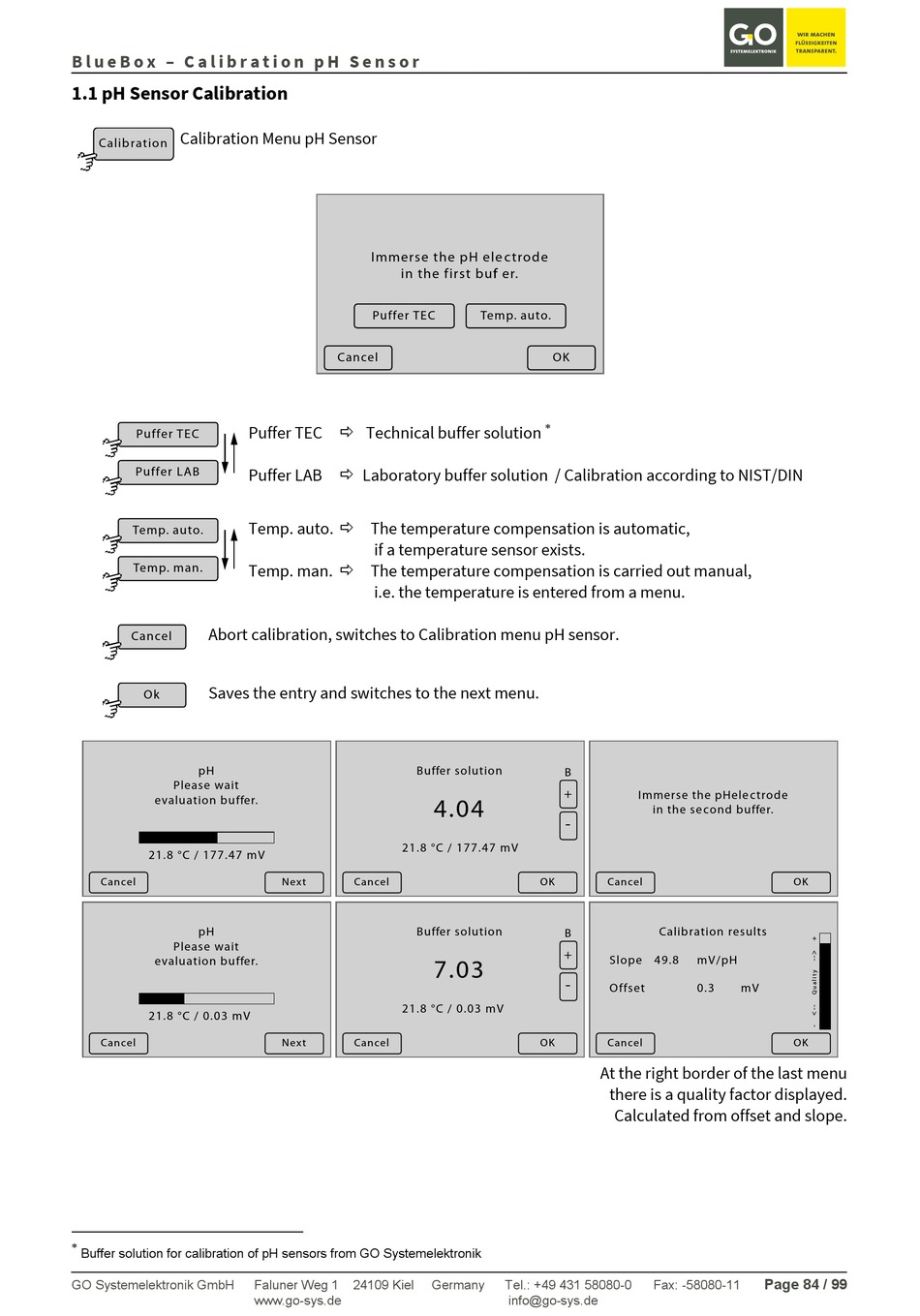

1.1 pH Sensor Calibration
Calibration Menu pH Sensor
Calib ration
Puffer TEC
Puffer LAB
Temp. auto.
Temp. man.
Abort calibration, switches to Calibration menu pH sensor.
Cancel
Saves the entry and switches to the next menu.
Ok
pH
Please wait
evaluation buffer.
21.8 °C / 177.47 mV
Cancel
pH
Please wait
evaluation buffer.
21.8 °C / 0.03 mV
Cancel
∗
Buffer solution for calibration of pH sensors from GO Systemelektronik
GO Systemelektronik GmbH
Immerse the pH ele ctrode
in the first buf f er.
Puffer TEC
Cancel
Puffer TEC Technical buffer solution
Puffer LAB Laboratory buffer solution / Calibration according to NIST/DIN
Temp. auto. The temperature compensation is automatic,
if a temperature sensor exists.
Temp. man. The temperature compensation is carried out manual,
i.e. the temperature is entered from a menu.
Buffer solution
21.8 °C / 177.47 mV
Next
Cancel
Buffer solution
21.8 °C / 0.03 mV
Next
Cancel
Faluner Weg 1
24109 Kiel
www.go-sys.de
Temp. auto.
OK
∗
B
+
4.04
-
OK
B
+
7.03
-
OK
At the right border of the last menu
Germany
Tel.: +49 431 58080-0
info@go-sys.de
Immerse the pHele ctrode
in the se cond buffer.
Cancel
Calib ration results
Slope 49.8
mV/pH
Offset
0.3
mV
Cancel
there is a quality factor displayed.
Calculated from offset and slope.
Page 84 / 99
Fax: -58080-11
OK
OK
