8.1.1 Parameter display 8-way (tiles)

Only appears at a BlueBox with a colour display.

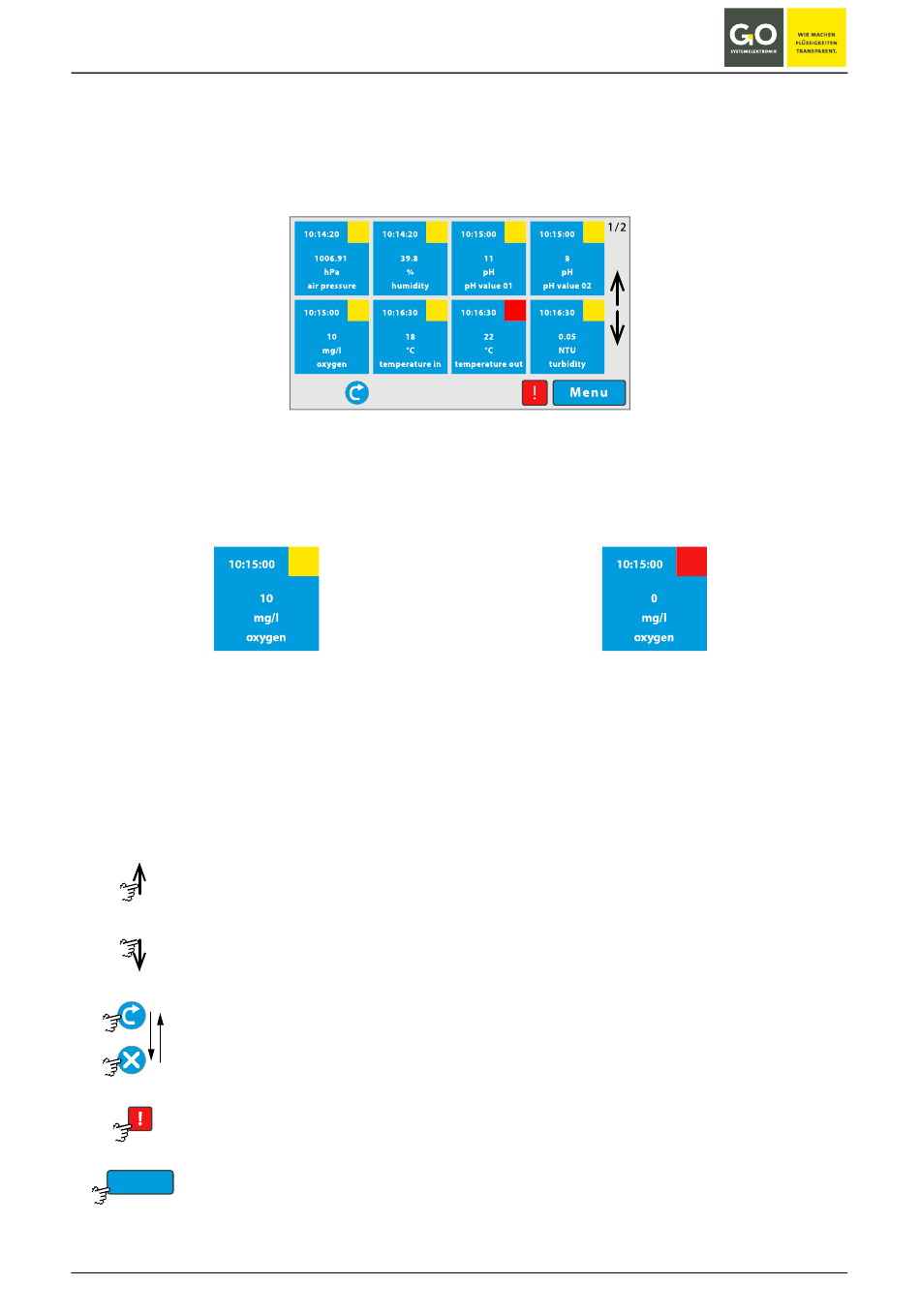

Here, as an example, the Parameter display with more than 8 sensors/actuators.
The first 8 elements are displayed for 6 s, the order is alphabetical. Thereafter the display cycles to the display
of the next elements.
In the upper left corner you see the page number of the current display and the number of pages (in this case
1/2).
• Time of day of the measurement value
• Numerical value of the measurement value
• Unit of the measurement value
• Sensor name
Push buttons
Switches to the display of the previous sensors/actuators.
Switches the cycling of the Parameter display off.
Switches to the display of the next sensors/actuators.
Switches the cycling of the Parameter display off.
Switches the cycling of the Parameter display on and off.
The button is also a status indicator
When there are current customer defined error messages, this button appears left of the
menu button. The button calls up a list of current customer defined error messages .
Switches to the Main menu.
M enu
GO Systemelektronik GmbH
The sensors/actuators are shown as tiles.
yellow
Faluner Weg 1 24109 Kiel
www.go-sys.de
If there is a sensor error, the yellow part of the tile is
coloured red. A sensor error is here each sensor status
greater than 0 (see Appendix E – Sensor Status).
.
