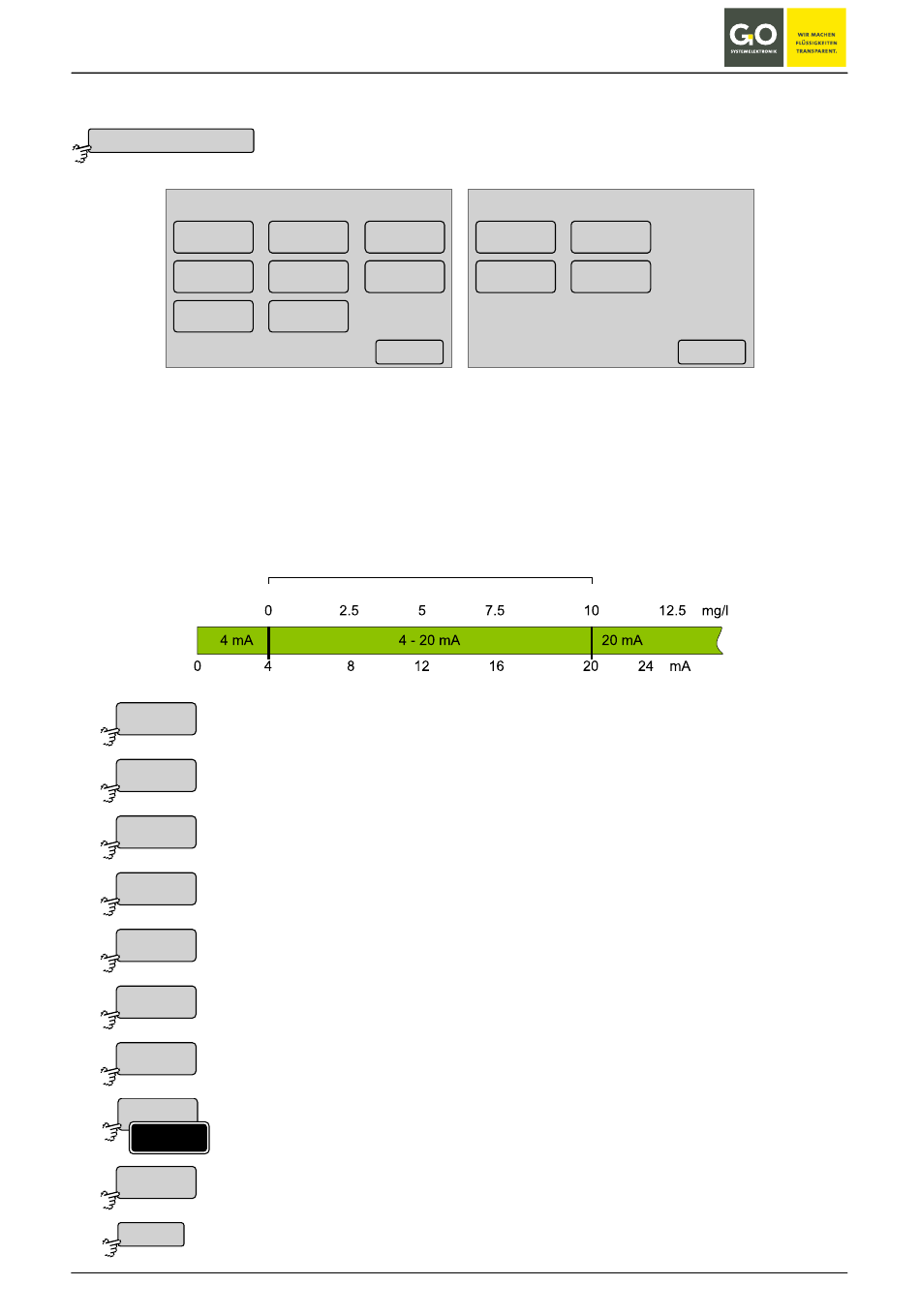

B l u e B o x – M e n u O p e r a t i o n
8.2.5 Current Output

Current output 1

etc.
Current output 1
Inter val
Average
Calib ration
Menu at call up from sensor list
Here you parameterize a current output of a BlueBox. The measurement values of an allocated sensor control
a current output. The allocation of a sensor to a current output is performed with the AMS program (AMS is
part of the BlueBox PC Software).
The sensor signal must be accurately represented by the current output, therefore you must set a measure-
ment range.
Use these menus to determine the measurement range with the input of a minimum and a maximum value.
Example:
Minimum value
Switches to the input of the measurement interval.
Inter val
Switches to the input of the measurement average.
Average
Switches to the setting of an output values.
Set
Switches to the calibration menus.
Calib ration
Switches to the table display.
Table
Switches to the diagram display.
Diag ram
Switches to the sensor information.
Info
Selects the sensor for the multiple parameter display or not.
Selected
see also 8.2.1.6 Display
Selected
Switches to the menu for the selection of the calibration mode.
Cal. mode
see 8.2.2.1.6 Selection Calibration Mode
Switches back to the Sensor/Actuator list.
<–
GO Systemelektronik GmbH
Sensors List 8.2.2 und Actuators List 8.2.4
Table
Selected
Diag ram
Cal. Mode
Info
<–
Measuremet range
Faluner Weg 1
24109 Kiel
www.go-sys.de
Current output 1
Set
Diag ram
Calib ration
Info
Menu at call up from actuator list
Maximum value
Germany
Tel.: +49 431 58080-0
info@go-sys.de
<–
Page 79 / 99
Fax: -58080-11
