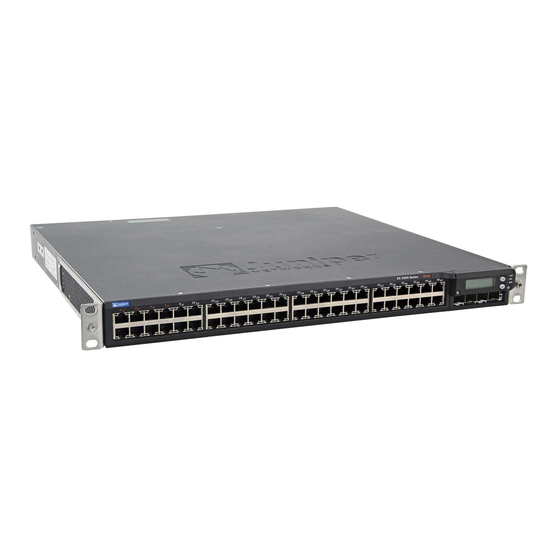

Page 1 EX4200 Switch Hardware Guide Published 2020-12-15...
Page 2 END USER LICENSE AGREEMENT The Juniper Networks product that is the subject of this technical documentation consists of (or is intended for use with) Juniper Networks software. Use of such software is subject to the terms and conditions of the End User License Agreement (“EULA”) posted at https://support.juniper.net/support/eula/.
Page 3: Table Of Contents
Uplink Modules | 21 Power over Ethernet Ports | 21 EX4200 Switch Models | 21 EX4200 Switch Hardware and CLI Terminology Mapping | 23 Chassis Physical Specifications for EX4200 Switches | 27 Field-Replaceable Units in EX4200 Switches | 28 EX4200 Chassis | 29...
Page 4 Rack Requirements | 66 Cabinet Requirements | 67 Requirements for Mounting an EX4200 Switch on a Desktop or Wall | 68 Clearance Requirements for Airflow and Hardware Maintenance for EX4200 Switches | 69 EX4200 Network Cable and Transceiver Planning | 70...
Page 5 RJ-45 to DB-9 Serial Port Adapter Pinout Information | 85 Uplink Modules Connector Pinout Information for EX4200 Switches | 86 Virtual Chassis Ports Connector Pinout Information for EX4200 Switches | 95 EX4200 Virtual Chassis | 99 Understanding EX4200, EX4500, and EX4550 Virtual Chassis Hardware Configurations | 99...
Page 6 Mounting an EX4200 Switch on Two Posts in a Rack or Cabinet | 117 Mounting an EX4200 Switch on Four Posts in a Rack or Cabinet | 120 Mounting an EX4200 Switch in a Recessed Position in a Rack or Cabinet | 123 Mounting an EX4200 Switch on a Wall | 124...
Page 7 Replacing a Member Switch to Virtual Chassis | 216 Adding a New EX4200 Switch to an Existing EX4200 Virtual Chassis (CLI Procedure) | 217 Adding a New Switch to an Existing Virtual Chassis Within the Same Wiring Closet | 217...
Page 8 Listing the Switch and Components Details with the CLI | 257 Locating the Chassis Serial Number ID Label on an EX4200 Switch | 258 Locating the Serial Number ID Labels on FRUs in an EX4200 Switch | 258 Contact Customer Support to Obtain Return Material Authorization | 258...
Page 9 Safety and Compliance Information General Safety Guidelines and Warnings | 264 Definitions of Safety Warning Levels | 265 Qualified Personnel Warning | 268 Warning Statement for Norway and Sweden | 269 Fire Safety Requirements | 269 Fire Suppression | 269 Fire Suppression Equipment | 269 Installation Instructions Warning | 271 Chassis and Component Lifting Guidelines | 271...
Page 10 Japan | 317 Korea | 318 United States | 318 FCC Part 15 Statement | 318 Nonregulatory Environmental Standards | 319 Compliance Statements for Acoustic Noise for EX Series Switches | 320 Statements of Volatility for Juniper Network Devices | 320...
Page 11: About The Documentation
Use this guide to install hardware and perform initial software configuration, routine maintenance, and troubleshooting for the EX4200 switch. After completing the installation and basic configuration procedures covered in this guide, refer to the Junos OS documentation for information about further software configuration.
Page 12: Merging A Full Example
If the example configuration contains the top level of the hierarchy (or multiple hierarchies), the example is a full example. In this case, use the load merge command. If the example configuration does not start at the top level of the hierarchy, the example is a snippet. In this case, use the load merge relative command.
Page 13: Merging A Snippet
xiii Merging a Snippet To merge a snippet, follow these steps: 1. From the HTML or PDF version of the manual, copy a configuration snippet into a text file, save the file with a name, and copy the file to a directory on your routing platform. For example, copy the following snippet to a file and name the file ex-script-snippet.conf.
Page 14 Table 1: Notice Icons Icon Meaning Description Informational note Indicates important features or instructions. Caution Indicates a situation that might result in loss of data or hardware damage. Warning Alerts you to the risk of personal injury or death. Laser warning Alerts you to the risk of personal injury from a laser.
Page 15 Table 2: Text and Syntax Conventions (continued) Convention Description Examples Italic text like this Represents variables (options for Configure the machine’s domain which you substitute a value) in name: commands or configuration [edit] statements. root@# set system domain-name domain-name Text like this Represents names of configuration To configure a stub area, include statements, commands, files, and...
Page 16: Documentation Feedback
URL or page number, and software version (if applicable). Requesting Technical Support Technical product support is available through the Juniper Networks Technical Assistance Center (JTAC). If you are a customer with an active Juniper Care or Partner Support Services support contract, or are...
Page 17: Self-Help Online Tools And Resources
JTAC hours of operation—The JTAC centers have resources available 24 hours a day, 7 days a week, 365 days a year. Self-Help Online Tools and Resources For quick and easy problem resolution, Juniper Networks has designed an online self-service portal called the Customer Support Center (CSC) that provides you with the following features: Find CSC offerings: https://www.juniper.net/customers/support/...
Page 18: Overview
C HAPTER Overview EX4200 System Overview | 19 EX4200 Chassis | 29 EX4200 Cooling System | 45 EX4200 Power System | 47...
Page 19: Ex4200 System Overview
(Junos OS), which provides Layer 2 and Layer 3 switching, routing, and security services. The same Junos OS code base that runs on EX Series switches also runs on all Juniper Networks M Series, MX Series, and T Series routers and SRX Series devices.
Page 20: Ex4200 Switches
Support for Virtual Chassis—EX4200 switches support Virtual Chassis technology. You can interconnect up to 10 EX4200 switches to form a Virtual Chassis and manage and operate them as a single network entity. EX4200 Switches Juniper Networks EX4200 Ethernet Switches provide connectivity for medium- and high-density environments and scalability for growing networks.
Page 21: Uplink Modules
EX4200 Switch Models The EX4200 switch is available with 24 or 48 ports and with partial or full Power over Ethernet (PoE) capability. EX4200 switches with a DC power supply installed do not provide PoE.
Page 22 This topic uses the term PoE to refer to both PoE and PoE+ unless there is a need to distinguish between the two. Table 3 on page 22 lists the EX4200 switch models. Table 3: EX4200 Switch Models Number of...
Page 23: Ex4200 Switch Hardware And Cli Terminology Mapping
Mixing different types (AC and DC) of power supplies in the same chassis is not supported. EX4200 Switch Hardware and CLI Terminology Mapping This topic describes the hardware terms used in EX4200 switch documentation and the corresponding terms used in the Junos OS CLI. See Table 4 on page...
Page 24 Table 4: CLI Equivalents of Terms Used in Documentation for EX4200 Switches Hardware Description Value Item in Item (CLI) (CLI) (CLI) D o c u m e n t a t i o n Additional Information Chassis One of the –...
Page 25 Table 4: CLI Equivalents of Terms Used in Documentation for EX4200 Switches (continued) Hardware Description Value Item in Item (CLI) (CLI) (CLI) D o c u m e n t a t i o n Additional Information FPC (n) Value of n...
Page 26 Table 4: CLI Equivalents of Terms Used in Documentation for EX4200 Switches (continued) Hardware Description Value Item in Item (CLI) (CLI) (CLI) D o c u m e n t a t i o n Additional Information PIC (n) Abbreviated...
Page 27: Chassis Physical Specifications For Ex4200 Switches
“EX4200 Cooling System” on page 45 Chassis Physical Specifications for EX4200 Switches The EX4200 switch chassis is a rigid sheet-metal structure that houses the hardware components. Table 5 on page 27 summarizes the physical specifications of the EX4200 switch chassis.
Page 28: Field-Replaceable Units In Ex4200 Switches
600 W and 930 W AC power supplies: 3.1 lb (1.4 kg) 190 W DC power supply: 2.5 lb (1.1 kg) NOTE: The weight of an EX4200 switch with one power supply installed is between 16–18 lb (7.2–8.2 kg). Field-Replaceable Units in EX4200 Switches Field-replaceable units (FRUs) are components that you can replace at your site.
Page 29: Ex4200 Chassis
NOTE: If you have a Juniper J-Care service contract, register any addition, change, or upgrade of hardware components at https://www.juniper.net/customers/support/tools/updateinstallbase/ . Failure to do so can result in significant delays if you need replacement parts. This note does not apply if you replace existing components with the same type of component.
Page 30: Rear Panel Of An Ex4200 Switch
EX4200 switch with 24 Gigabit Ethernet ports. Figure 3 on page 30 shows the front panel of an EX4200-24F switch with 24 SFP ports for use with fiber-optic connectors. Figure 1: EX4200 Switch with 48 Gigabit Ethernet Ports...
Page 31: Lcd Panel In Ex4200 Switches
Power supply or power supplies Figure 4 on page 31 shows the rear panel of an EX4200 switch with power supplies and fan tray installed. The rear panel of all the EX4200 switches except EX4200-24F-S and EX4200-48T-S switches are similar.
Page 32: Lcd Panel Modes
LCD panel automatically reverts to the Idle menu. In an EX4200 switch that is not a member of a Virtual Chassis, the first line of the LCD panel displays the slot number, the role of the switch, and hostname. For a standalone EX4200 switch, the slot number is always 00 and the role is always RE (for primary).
Page 33: Uplink Modules In Ex4200 Switches
The number of alarms is updated every second. In the status mode, the second line displays: Virtual Chassis port (VCP) status (for an EX4200 switch that is a member of a Virtual Chassis) Status of the power supply...
Page 34: Sfp Uplink Module
(SFP) transceivers when configured to operate in 1-gigabit mode. The model number of the uplink module is EX-UM-2X4SFP. SFP+ Media Access Control Security (MACsec) uplink module—Provides two ports for 10-gigabit small form-factor pluggable (SFP+) transceivers when configured to operate in 10-gigabit mode or four ports for 1-gigabit small form-factor pluggable (SFP) transceivers when configured to operate in 1-gigabit mode.
Page 35: Sfp+ Uplink Module And Sfp+ Macsec Uplink Module
Figure 6: SFP Uplink Module SFP uplink modules are shipped with dust covers preinstalled in the ports. The SFP uplink module requires Junos OS for EX Series switches, Release 9.0 or later. SFP+ Uplink Module and SFP+ MACsec Uplink Module The SFP+ uplink module and the SFP+ MACsec uplink module can be used for either SFP+ or SFP transceivers.
Page 36 Figure 7: SFP+ and SFP+ MACsec Uplink Module The following transceivers can be installed in the uplink module ports: SFP+ transceivers are supported in ports 0 and 2. SFP transceivers are supported in all four ports. The ports that support SFP+ transceivers are labeled 10 G on the uplink module’s faceplate (see Figure 7 on page 36).
Page 37: Xfp Uplink Module
Troubleshooting Virtual Chassis Port Connectivity on an EX4200 Switch | 247 Chassis Status LEDs in EX4200 Switches The front panel of an EX4200 switch has three LEDs on the far right side of the panel, next to the LCD panel (see Figure 9 on page 38).
Page 38 Figure 9: Chassis Status LEDs in an EX4200 Switch Table 6 on page 38 describes the chassis status LEDs in an EX4200 switch, their colors and states, and the status they indicate. You can view the colors of the three LEDs remotely through the CLI by issuing the operational mode command show chassis lcd.
Page 39: Management Port Leds In Ex4200 Switches
All three LEDs can be lit simultaneously. Management Port LEDs in EX4200 Switches The management port on EX4200 switches has two LEDs that indicate link/activity and port status (see Figure 10 on page 40). The management port is set to full-duplex and the speed is set to 100 Mbps.
Page 40: Network Port Leds In Ex4200 Switches
Figure 10: LEDs on the Management Port on an EX4200 Switch Table 7 on page 40 describes the Link/Activity LED. Table 7: Link/Activity LED on the Management Port on EX4200 Switches Color State and Description Link/Activity Green Blinking—The port and the link are active, and there is link activity.
Page 41 Figure 13 on page 42 shows the location of the LEDs on the uplink module ports on the SFP+ and SFP+ MACsec uplink modules. Figure 14 on page 42 shows the location of the LEDs on the uplink module ports on the XFP uplink module.
Page 42 Figure 13: LEDs on the Uplink Module Ports on the SFP+ and SFP+ MACsec Uplink Modules Figure 14: LEDs on the Uplink Module Ports on the XFP Uplink Module Status LED Status LED Port 0 Port 1 Link/Activity Link/Activity The LEDs labeled Link/Activity LED in Figure 11 on page Figure 12 on page Figure 13 on page...
Page 43 Table 9: Link/Activity LED on Network Ports Color State and Description Link/Activity Green Blinking—The port and the link are active, and there is link activity. On steadily—The port and the link are active, but there is no link activity. Off—The port is not active. Table 10 on page 44 describes the Status LED.
Page 44 Table 10: Status LED on Network Ports LCD Indicator State and Description Status LED: ADM Indicates the administrative status (enabled or disabled). The status indicators are: Green—Administrative status enabled. Unlit—Administrative status disabled. LED: DPX Indicates the duplex mode. The uplink module ports are always set to full-duplex; therefore, the LED is always green.
Page 45: Ex4200 Cooling System
IN THIS SECTION Fan Tray | 46 Airflow Direction in the EX4200 Switch Chassis | 46 The cooling system in an EX4200 switch consists of a field-replaceable unit (FRU) fan tray with three fans (see Figure 15 on page 46). All the EX4200 switch models, except the EX4200-24F-S and EX4200-48T-S switches are shipped with one fan tray pre-installed in the rear panel of the switches.
Page 46: Fan Tray
Fan Tray The fan tray is located at the rear of the chassis. Figure 15: Fan Tray Used in an EX4200 Switch Airflow Direction in the EX4200 Switch Chassis The fan tray located at the rear of the chassis provides side-to-rear chassis cooling (see Figure 16 on page 46).
Page 47: Ex4200 Power System
The fan tray used in an EX4200 switch comes with load-sharing redundancy that can tolerate a single fan failure at room temperature (below 45° C/113° F) to still provide sufficient cooling. Temperature sensors in the chassis monitor the temperature within the chassis. The system raises an alarm if the fan fails or if the temperature inside the chassis rises above permitted levels.
Page 48: Ac Power Supplies
This topic uses the term PoE to refer to both PoE and PoE+ unless there is a need to distinguish between the two. EX4200 switches use power supplies that provides two DC output voltages: 12 V for system and logic power and 48–51 V (or higher, to compensate for voltage drops along the path from the power supplies to the RJ-45 connector) for PoE ports.
Page 49: Dc Power Supplies
All the EX4200 switches that are powered by DC power supplies except the EX4200-24F-S and EX4200-48T-S switches are shipped with one DC power supply pre-installed in the rear panel of the switches. EX4200-24F-S and EX4200-48T-S switches are not shipped with pre-installed power supplies;...
Page 50: Poe Power Budget And Ac Power Supplies
PoE Power Budget and AC Power Supplies The PoE power budget for a PoE switch model is determined by the capacity of its power supply. For EX4200 switches, the capacity of the power supply provided with a PoE model is sufficient to supply each...
Page 51 PoE-capable port with up to 15.4 W in compliance with the IEEE 802.3af PoE standard. Table 11 on page 51 lists the power supply ratings, and the associated PoE power budgets for EX4200 switch models that support PoE. Starting with Junos OS Release 11.1, EX4200 switches support enhanced PoE, a Juniper Networks extension to the IEEE 802.3af PoE standard.
Page 52: Ac Power Supply Leds In Ex4200 Switches
AC Power Supply LEDs in EX4200 Switches Table 12 on page 52 describes the LEDs on the AC power supplies. Table 12: AC Power Supply LEDs State and Description AC OK Off—Disconnected from power or power is not coming into the power supply.
Page 53: Power Specifications For Ex4200 Switches
There is no input; there is no output. LED B Power Specifications for EX4200 Switches This topic describes power specifications for power supplies for EX4200 switches. Table 14 on page 53 provides the AC power supply electrical specifications for EX4200 switches.
Page 54: Ac Power Cord Specifications For Ex4200 Switches
1 ms minimum NOTE: The DC power supply in EX4200 switches does not support Power over Ethernet (PoE); you can use either an external power injector or an AC power supply to supply power to PoE devices that you connect to the switch.
Page 55 AC power cord specifications for the countries and regions listed in the table. Table 16: AC Power Cord Specifications Country/Region Electrical Specifications Plug Standards Juniper Model Number Argentina 250 VAC, 10 A, 50 Hz IRAM 2073 Type RA/3 CBL-EX-PWR-C13-AR Australia...
Page 56 Figure 20 on page 56 illustrates the plug on the power cord for some of the countries or regions listed in Table 16 on page Figure 20: AC Plug Types...
Page 57: Site Planning, Preparation, And Specifications
C HAPTER Site Planning, Preparation, and Specifications Site Preparation Checklist for EX4200 Switches | 58 EX4200 Site Guidelines and Requirements | 59 EX4200 Network Cable and Transceiver Planning | 70 EX4200 Management Cable Specifications and Pinouts | 78 EX4200 Virtual Chassis | 99...
Page 58: Site Preparation Checklist For Ex4200 Switches
“Cabinet Requirements” on page 67 of the switch. Plan rack or cabinet location, including “Clearance Requirements for Airflow and Hardware Maintenance for EX4200 Switches” required space clearances. Secure the rack or cabinet to the floor and building structure.
Page 59: Ex4200 Site Guidelines And Requirements
Item or Task For More Information Verify that the wall meets the minimum “Requirements for Mounting an EX4200 Switch on a Desktop or Wall” on page 68 requirements for the installation of the switch. Verify that there is appropriate clearance in “Clearance Requirements for Airflow and Hardware Maintenance for EX4200 Switches”...
Page 60: Environmental Requirements And Specifications For Ex Series Switches
Environmental Requirements and Specifications for EX Series Switches The switch must be installed in a rack or cabinet housed in a dry, clean, well-ventilated, and temperature-controlled environment. Ensure that these environmental guidelines are followed: The site must be as dust-free as possible, because dust can clog air intake vents and filters, reducing the efficiency of the switch cooling system.
Page 61 10% through 85% 32° F (0° C) through 113° requirements as per (3048 meters) (noncondensing) F (45° C) GR-63, Issue 4. EX4200 No performance Normal operation ensured Normal operation ensured Complies with Zone degradation up to in the relative humidity...
Page 62 Table 18: EX Series Switch Environmental Tolerances (continued) Environment Tolerance Switch or device Altitude Relative Humidity Temperature Seismic EX4300 EX4300 switches EX4300 switches except Normal operation ensured Complies with Zone except the the EX4300-48MP in the temperature range 4 earthquake EX4300-48MP model—...
Page 63 Table 18: EX Series Switch Environmental Tolerances (continued) Environment Tolerance Switch or device Altitude Relative Humidity Temperature Seismic EX4600 No performance Normal operation ensured Normal operation Complies with Zone degradation to in the relative humidity ensured in the 4 earthquake 6,562 feet range 5% through 90%, temperature range 32°...
Page 64 Table 18: EX Series Switch Environmental Tolerances (continued) Environment Tolerance Switch or device Altitude Relative Humidity Temperature Seismic EX9204 No performance Normal operation ensured Normal operation is ensured Complies with Zone degradation up to in the relative humidity in the temperature range 4 earthquake 10,000 feet range 5% through 90%...
Page 65: General Site Guidelines
Table 18: EX Series Switch Environmental Tolerances (continued) Environment Tolerance Switch or device Altitude Relative Humidity Temperature Seismic XRE200 No performance Normal operation ensured Normal operation ensured Complies with Zone degradation up to in the relative humidity in the temperature range 4 earthquake 10,000 feet range 10% through 85%...
Page 66: Rack Requirements
WARNING: You must provide a properly grounded and shielded environment and use electrical surge-suppression devices. Avertissement Vous devez établir un environnement protégé et convenablement mis à la terre et utiliser des dispositifs de parasurtension. Table 19: Site Electrical Wiring Guidelines Site Wiring Factor Guidelines...
Page 67: Cabinet Requirements
Rack size and strength Rack connection to the building structure Table 20 on page 67 provides the rack requirements and specifications. Table 20: Rack Requirements and Specifications Rack Requirement Guidelines Rack type You can mount the device on a rack that provides bracket holes or hole patterns spaced at 1-U (1.75 in.
Page 68: Requirements For Mounting An Ex4200 Switch On A Desktop Or Wall
A cabinet larger than the minimum required provides better airflow and reduces the chance of overheating. Requirements for Mounting an EX4200 Switch on a Desktop or Wall You can install the switch on or under a desk or other level surface or on a wall. When choosing a location, allow at least 6 in.
Page 69: Clearance Requirements For Airflow And Hardware Maintenance For Ex4200 Switches
Insert the screws into wall studs wherever possible to provide added support for the chassis. Use the wall-mount kit from Juniper Networks to mount the switch on a wall. The wall-mount kit is not part of the standard package and must be ordered separately.
Page 70: Ex4200 Network Cable And Transceiver Planning
Figure 22: Airflow Through the EX4200 Switch Chassis Allow at least 6 in. (15.2 cm) of clearance on the side between devices that have fans or blowers installed. Allow 2.8 in. (7 cm) between the side of the chassis and any non-heat-producing surface such as a wall.
Page 71: Pluggable Transceivers Supported On Ex4200 Switches
Calculating the Fiber-Optic Cable Power Margin for EX Series Devices | 76 Pluggable Transceivers Supported on EX4200 Switches Optional uplink modules for EX4200 switches support SFP, SFP+, or XFP transceivers. You can find the list of transceivers supported on EX4200 switches and information about those transceivers at the...
Page 72: Sfp+ Direct Attach Copper Cables For Ex Series Switches
NOTE: We recommend that you use only SFP+ DAC cables purchased from Juniper Networks with your Juniper Networks device. CAUTION: If you face a problem running a Juniper Networks device that uses a third-party optic or cable, the Juniper Networks Technical Assistance Center (JTAC) can help you diagnose the source of the problem.
Page 73: List Of Dac Cables Supported On Ex Series Switches
EX3200—Hardware Compatibility Tool page for EX3200 EX3300—Hardware Compatibility Tool page for EX3300 EX3400—Hardware Compatibility Tool page for EX3400 EX4200—Hardware Compatibility Tool page for EX4200 EX4300—Hardware Compatibility Tool page for EX4300 EX4500—Hardware Compatibility Tool page for EX4500 EX4550—Hardware Compatibility Tool page for EX4550 EX4600—Hardware Compatibility Tool page for EX4600...
Page 74: Understanding Ex Series Switches Fiber-Optic Cable Signal Loss, Attenuation, And Dispersion
SFP+ Multi-Source Alliance (MSA) standards Understanding EX Series Switches Fiber-Optic Cable Signal Loss, Attenuation, and Dispersion IN THIS SECTION Signal Loss in Multimode and Single-Mode Fiber-Optic Cable | 74 Attenuation and Dispersion in Fiber-Optic Cable | 74 To determine the power budget and power margin needed for fiber-optic connections, you need to understand how signal loss, attenuation, and dispersion affect transmission.
Page 75: Calculating The Fiber-Optic Cable Power Budget For Ex Series Devices
transmission. Passive media components such as cables, cable splices, and connectors cause attenuation. Although attenuation is significantly lower for optical fiber than for other media, it still occurs in both multimode and single-mode transmission. An efficient optical data link must transmit enough light to overcome attenuation.
Page 76: Calculating The Fiber-Optic Cable Power Margin For Ex Series Devices
NOTE: See the specifications for your transmitter and receiver to find the minimum transmitter power and minimum receiver sensitivity. 2. Calculate the power budget (P ) by subtracting (P ) from (P – 15 dBm – (–28 dBm) = 13 dBm Calculating the Fiber-Optic Cable Power Margin for EX Series Devices Calculate the link's power margin when planning fiber-optic cable layout and distances to ensure that fiber-optic connections have sufficient signal power to overcome system losses and still satisfy the minimum...
Page 77 Table 22: Estimated Values for Factors Causing Link Loss (continued) Link-Loss Factor Estimated Link-Loss Value Sample (LL) Calculation Values Modal and chromatic dispersion Multimode—None, if product of 0 dBm bandwidth and distance is less than 0 dBm 500 MHz/km Single mode—None Connector 0.5 dBm This example assumes 5 connectors.
Page 78: Ex4200 Management Cable Specifications And Pinouts
RJ-45 Port, SFP Port, SFP+ Port, QSFP+ Port, and QSFP28 Port Connector Pinout Information | 81 RJ-45 to DB-9 Serial Port Adapter Pinout Information | 85 Uplink Modules Connector Pinout Information for EX4200 Switches | 86 Virtual Chassis Ports Connector Pinout Information for EX4200 Switches | 95 Management Cable Specifications Table 23 on page 78 lists the specifications for the cables that connect the console and management ports to management devices.
Page 79: Console Port Connector Pinout Information
Console Port Connector Pinout Information The console port on a Juniper Networks device is an RS-232 serial interface that uses an RJ-45 connector to connect to a console management device. The default baud rate for the console port is 9600 baud.
Page 80: Rj-45 Management Port Connector Pinout Information
CAUTION: Any USB memory product not listed as supported for EX Series switches has not been tested by Juniper Networks. The use of any unsupported USB memory product could expose your EX Series switch to unpredictable behavior. Juniper Networks Technical Assistance Center (JTAC) can provide only limited support for issues related to unsupported hardware.
Page 81: Port, Sfp Port, Sfp+ Port, Qsfp+ Port, And Qsfp28 Port Connector Pinout Information
RJ-45 Port, SFP Port, SFP+ Port, QSFP+ Port, and QSFP28 Port Connector Pinout Information The tables in this topic describe the connector pinout information for the RJ-45, QSFP+, QSFP28, SFP+, and SFP ports. Table 26 on page 81—10/100/1000BASE-T Ethernet network port connector pinout information Table 27 on page 81—SFP network port connector pinout information Table 28 on page...
Page 82 Table 27: SFP Network Port Connector Pinout Information (continued) Signal Description TX_Fault Module transmitter fault TX_Disable Transmitter disabled 2-wire serial interface data line SCL- 2-wire serial interface clock MOD_ABS Module absent Rate select RX_LOS Receiver loss of signal indication VeeR Module receiver ground VeeR Module receiver ground...
Page 83 Table 28: SFP+ Network Port Connector Pinout Information Signal Description VeeT Module transmitter ground TX_Fault Module transmitter fault TX_Disable Transmitter disabled 2-wire serial interface data line SCL- 2-wire serial interface clock MOD_ABS Module absent Rate select 0, optionally controls SFP+ module receiver RX_LOS Receiver loss of signal indication Rate select 1, optionally controls SFP+ transmitter...
Page 84 Table 29: QSFP+ and QSFP28 Network Port Connector Pinout Information Signal TX2n TX2p TX4n TX4p ModSelL LPMode_Reset VccRx RX3p RX3n RX1p RX1n RX2n...
Page 85: Rj-45 To Db-9 Serial Port Adapter Pinout Information
Table 29: QSFP+ and QSFP28 Network Port Connector Pinout Information (continued) Signal RX2p RX4n RX4p ModPrsL IntL VccTx Vcc1 Reserved TX3p TX3n TX1p TX1n RJ-45 to DB-9 Serial Port Adapter Pinout Information The console port is an RS-232 serial interface that uses an RJ-45 connector to connect to a management device such as a laptop or a desktop PC.
Page 86: Uplink Modules Connector Pinout Information For Ex4200 Switches
Signal DB-9 Pin Signal Uplink Modules Connector Pinout Information for EX4200 Switches EX4200 switches have a field-replaceable unit (FRU) uplink module on the front panel. Table 31 on page 86 provides the uplink modules connector pinout information. NOTE: You can use these ports to connect an access switch to a distribution switch. You can also use optional uplink module ports to connect members of a Virtual Chassis across multiple wiring closets.
Page 87 Table 31: Uplink Modules Connector Pinout Information (continued) Pin Number Pin Name Uplink_I2C_SCK Uplink_PD POWER (12V) XAUI0_RX0N XAUI0_RX2N...
Page 88 Table 31: Uplink Modules Connector Pinout Information (continued) Pin Number Pin Name Uplink_P25_LED2 XAUI1_RX0N Uplink_P27_LED2 XAUI1_RX2N SRX28N Uplink_XAUI_XMDIO SRX26N SGMIIRXN Uplink_I2C_Rst Uplink_Intr Uplink_Pwr_En Uplink_P26_LED0 POWER (12V) POWER (12V) XAUI0_RX0P XAUI0_RX2P...
Page 89 Table 31: Uplink Modules Connector Pinout Information (continued) Pin Number Pin Name XAUI1_RX0P XAUI1_RX2P SRX28P SRX26P SGMIIRXP CPU_UPLINK_MDC Uplink_I2C_SDA CPU_UPLINK_MDIO Uplink_P26_LED1 UPLNK_PWR_OK POWER (12V) XAUI0_TX1N XAUI0_TX3N...
Page 90 Table 31: Uplink Modules Connector Pinout Information (continued) Pin Number Pin Name XAUI1_TX1N XAUI1_TX3N STX27N STX25N Uplink_Rst Uplink_Status_LED0 POWER (12V) XAUI0_TX0N XAUI0_TX1P XAUI0_TX2N XAUI0_TX3P XAUI1_TX0N XAUI1_TX1P...
Page 91 Table 31: Uplink Modules Connector Pinout Information (continued) Pin Number Pin Name XAUI1_TX2N XAUI1_TX3P STX28N STX27P STX26N STX25P SGMIITXN Uplink_Hotswap_LED Uplink_Spare_Intr Uplink_Status_LED1 Uplink_P27_LED0 POWER (12V) POWER (12V) XAUI0_TX0P XAUI0_TX2P XAUI1_TX0P XAUI_TX2P...
Page 92 Table 31: Uplink Modules Connector Pinout Information (continued) Pin Number Pin Name STX28P STX26P SGMIITXP Uplink_Expander_Intr Uplink_P27_LED1 POWER (12V) XAUI0_RX1N XAUI0_RX3N XAUI1_RX1N XAUI1_RX3N...
Page 93 Table 31: Uplink Modules Connector Pinout Information (continued) Pin Number Pin Name SRX27N SRX25N Uplink_P25_LED0 POWER (12V) Uplink_PD_Loopback XAUI0_RX1P XAUI0_RX3P Uplink_P26_ LED2 XAUI1_RX1P Uplink_P28_ LED2 XAUI1_RX3P...
Page 94 Table 31: Uplink Modules Connector Pinout Information (continued) Pin Number Pin Name SRX27P Uplink_XAUI_MDC SRX25P Serial_RX Uplink_P25_LED1 Uplink_P28_LED0 POWER (12V) POWER (12V)
Page 95: Virtual Chassis Ports Connector Pinout Information For Ex4200 Switches
Uplink Modules in EX4200 Switches | 33 Virtual Chassis Ports Connector Pinout Information for EX4200 Switches EX4200 switches use a 68-pin connector cable to interconnect switches to form a Virtual Chassis. The cable is provided with the switch. Table 32 on page 95 provides the Virtual Chassis ports (VCPs) connector pinout information.
Page 96 Table 32: Virtual Chassis Ports (VCPs) Connector Pinout Information (continued) Pin Number Pin Name P1TXP1 P1TXN1 P1TXP2 P1TXN2 P1TXP3 P1TXN3 P2TXP0 P2TXN0...
Page 97 Table 32: Virtual Chassis Ports (VCPs) Connector Pinout Information (continued) Pin Number Pin Name P2TXP1 P2TXN1 P2TXP2 P2TXN2 P2TXP3 P2TXN3 P1RXP0 P1RXN0 P1RXP1 P1RXN1 P1RXP2 P1RXN2 P1RXP3...
Page 98 Table 32: Virtual Chassis Ports (VCPs) Connector Pinout Information (continued) Pin Number Pin Name P1RXN3 P2RXP0 P2RXN0 P2RXP1 P2RXN1 P2RXP2 P2RXN2 P2RXP3...
Page 99: Ex4200 Virtual Chassis
Pin Name P2RXN3 SEE ALSO Understanding Virtual Chassis Components Connecting a Virtual Chassis Cable to an EX4200 Switch | 231 EX4200 Virtual Chassis IN THIS SECTION Understanding EX4200, EX4500, and EX4550 Virtual Chassis Hardware Configurations | 99 Planning EX4200, EX4500, and EX4550 Virtual Chassis | 103...
Page 100: Ports Used To Interconnect Virtual Chassis Members
You can interconnect EX4200 switches together to form a Virtual Chassis composed exclusively of EX4200 switches. You can interconnect EX4500 switches together to form a Virtual Chassis composed exclusively of EX4500 switches. You can interconnect EX4550 switches together to form a Virtual Chassis composed exclusively of EX4550 switches.
Page 101: Number Of Switches, Required Software Releases, And Member Roles That You Configure In The Virtual Chassis
Table 35 on page 101—EX4550 Virtual Chassis Table 36 on page 102—Mixed EX4200, EX4500, and EX4550 Virtual Chassis Table 33: Number of Switches and Switch Roles for an EX4200 Virtual Chassis, per Junos OS Release Junos OS Release Number of Switches Role 9.0 or later...
Page 102: Virtual Chassis Module
Table 36: Number of Switches and Switch Roles for a Mixed EX4200, EX4500, and EX4550 Virtual Chassis, per Junos OS Release Junos OS Release Number of Switches Role 11.1 Up to 2 EX4500 switches EX4500 switches must be in the primary and backup roles and and up to 8 EX4200 EX4200 switches in the linecard role.
Page 103: Planning Ex4200, Ex4500, And Ex4550 Virtual Chassis
Table 37 on page 103 describes the Virtual Chassis components and the Junos OS release running on switches that you need to consider when you plan your EX4200, EX4500, and EX4550 Virtual Chassis configuration. Table 37: Virtual Chassis Components to Consider When Planning an EX4200, EX4500, and EX4550 Virtual...
Page 104 Table 37: Virtual Chassis Components to Consider When Planning an EX4200, EX4500, and EX4550 Virtual Chassis (continued) Junos OS Release Virtual Chassis Running on the Member Components Switches Virtual Chassis Details EX4200, EX4500, and Junos OS Release 11.1 You can interconnect up to two EX4500 switches and EX4550 switches up to eight EX4200 switches into a mixed Virtual Chassis.
Page 105: Virtual Chassis Cabling Configuration Examples For Ex4200 Switches
VCPs. The maximum cable length for interconnecting the dedicated VCPs is 5 meters. If you want to interconnect EX4200 switches that are located beyond the reach of the dedicated VCP cables, you can install the XFP uplink module, the SFP uplink module, or the SFP+ uplink module and set the uplink module ports as VCP interfaces.
Page 106 Virtual Chassis cables and one long Virtual Chassis cable. Figure 24: EX4200 Switches Mounted on a Single Rack and Connected in a Ring Topology Using Short and Long Cables: Option 1...
Page 107 Figure 25: EX4200 Switches Mounted on a Single Rack and Connected in a Ring Topology Using Short and Long Cables: Option 2 Figure 26 on page 107 shows five EX4200 switches stacked vertically in a rack and interconnected in a ring topology using short-length and medium-length Virtual Chassis cables.
Page 108 Figure 28: EX4200 Switches Mounted on Adjacent Racks and Connected in a Ring Topology Using Medium and Long Cables: Option 2 SEE ALSO Example: Configuring an EX4200 Virtual Chassis Interconnected Across Multiple Wiring Closets...
Page 109: Initial Installation And Configuration
C HAPTER Initial Installation and Configuration Unpacking and Mounting the EX4200 Switch | 110 Connecting the EX4200 to Power | 126 Connecting the EX4200 to External Devices | 141 Connecting the EX4200 to the Network | 143 Configuring Junos OS on the EX4200 | 147...
Page 110: Unpacking And Mounting The Ex4200 Switch
Mounting an EX4200 Switch on Two Posts in a Rack or Cabinet | 117 Mounting an EX4200 Switch on Four Posts in a Rack or Cabinet | 120 Mounting an EX4200 Switch in a Recessed Position in a Rack or Cabinet | 123 Mounting an EX4200 Switch on a Wall | 124 Unpacking an EX4200 Switch The EX4200 switch chassis is a rigid sheet-metal structure that houses the hardware components.
Page 111: Parts Inventory (Packing List) For An Ex4200 Switch
Figure 29: Unpacking an EX4200 Switch Parts Inventory (Packing List) for an EX4200 Switch The EX4200 switches are shipped in a cardboard carton, secured with foam packing material. The carton contains an accessory box. The switch shipment includes a packing list. Check the parts you receive in the switch shipping carton...
Page 112 If any part on the packing list is missing, contact your customer service representative or contact Juniper customer care from within the U.S. or Canada by telephone at 1-888-314-5822. For international-dial or direct-dial options in countries without toll-free numbers, see https://www.juniper.net/support/requesting-support.html...
Page 113 Table 39: Packing List for an EX4200 Switch (continued) Component Quantity Power cord retainer EX4200-24T, EX4200-24T-DC, clip (only for AC switch EX4200-24P, EX4200-24PX, models) EX4200-24F, EX4200-24F-DC, EX4200-48T, EX4200-48T-DC, EX4200-48P, and EX4200-48PX switches. EX4200-24F-S and EX4200-48T-S Power cord retainer clip for these models is not switches shipped by default;...
Page 114: Register Products-Mandatory To Validate Slas
“Mounting an EX4200 Switch on Four Posts in a Rack or Cabinet” on page 120 (using the separately orderable four-post rack-mount kit) “Mounting an EX4200 Switch in a Recessed Position in a Rack or Cabinet” on page 123 (using the 2-in.-recess front brackets from the separately orderable four-post rack-mount kit)
Page 115: Mounting An Ex4200 Switch
“Mounting an EX4200 Switch on a Desk or Other Level Surface” on page 116 (using the rubber feet provided) “Mounting an EX4200 Switch on a Wall” on page 124 (using the separately orderable wall-mount kit) 5. Follow instructions in “Connect Earth Ground to an EX Series Switch” on page 127.
Page 116: Mounting An Ex4200 Switch On A Desk Or Other Level Surface
Mounting an EX4200 Switch on a Desk or Other Level Surface You can mount an EX4200 switch on a desk or other level surface by using the 4 rubber feet that are shipped with the switch. The rubber feet stabilize the chassis.
Page 117: Mounting An Ex4200 Switch On Two Posts In A Rack Or Cabinet
Mounting an EX4200 Switch on Two Posts in a Rack or Cabinet You can mount an EX4200 switch on two posts of a 19-in. rack (either a two-post or a four-post rack) or a 19-in. cabinet by using the mounting brackets provided with the switch. (The remainder of this topic uses “rack”...
Page 118 2-in.-recess front brackets if you will mount the switch in a recessed position (brackets are from the separately orderable four-post rack-mount kit). Dust covers for ports (for EX4200-24F switches only; optional) NOTE: One person must be available to lift the switch while another secures the switch to the rack.
Page 119 8. Ensure that the switch chassis is level by verifying that all screws on one side of the rack are aligned with the screws on the other side. NOTE: If the switch is an EX4200-24F model, we recommend that you insert dust covers in any unused SFP ports. SEE ALSO...
Page 120: Mounting An Ex4200 Switch On Four Posts In A Rack Or Cabinet
Mounting an EX4200 Switch on Four Posts in a Rack or Cabinet You can mount an EX4200 switch on four posts of a 19-in. rack or cabinet by using the separately orderable four-post rack-mount kit. (The remainder of this topic uses “rack” to mean “rack or cabinet.”) You can mount the switch on two posts in either a two-post rack or a four-post rack by using the mounting brackets provided with the switch.
Page 121 One pair of rear mounting-blades (provided with the four-post rack-mount kit) Screws to secure the chassis and the rear mounting-blades to the rack (not provided) Dust covers for ports (for EX4200-24F switches only; optional) NOTE: One person must be available to lift the switch while another secures it to the rack.
Page 122 4. Insert 4x6-mm Phillips flat-head mounting screws into the two aligned holes and tighten the screws. Ensure that the remaining four holes in the side mounting-rails are aligned with the four holes in the side panel. See Figure 34 on page 122.
Page 123: Mounting An Ex4200 Switch In A Recessed Position In A Rack Or Cabinet
Mounting an EX4200 Switch in a Recessed Position in a Rack or Cabinet You can mount an EX4200 switch in a rack or cabinet such that the switch is recessed inside the rack from the rack front by 2 inches. You can use the 2-in.-recess front brackets provided in the separately orderable four-post rack-mount kit to mount the switch in a recessed position.
Page 124: Mounting An Ex4200 Switch On A Wall
Mounting an EX4200 Switch on a Wall You can mount an EX4200 switch on a wall by using the separately orderable wall-mount kit. Before mounting the switch on a wall: Verify that the site meets the requirements described in “Site Preparation Checklist for EX4200 Switches”...
Page 125 1. Attach the wall-mount brackets to the sides of the chassis using four of the wall-mount bracket screws on each side, as shown in Figure 37 on page 125. Figure 37: Attaching Wall-Mount Brackets to the Switch Chassis 2. If you are mounting two switches together, line the second switch on top of the first and attach it to the mounting brackets using two wall-mount bracket screws on each side (see Figure 38 on page 126).
Page 126: Connecting The Ex4200 To Power
Front panel 5. Tighten the mounting screws. NOTE: If it is an EX4200-24F switch, we recommend you insert dust covers in unused SFP ports. SEE ALSO Wall-Mounting Warning for EX4200 Switches Connecting the EX4200 to Power IN THIS SECTION...
Page 127: Connect Earth Ground To An Ex Series Switch
Connect Earth Ground to an EX Series Switch IN THIS SECTION Parts and Tools Required for Connecting an EX Series Switch to Earth Ground | 127 Special Instructions to Follow Before Connecting Earth Ground to an EX Series Switch | 132 Connecting Earth Ground to an EX Series Switch | 133 To ensure proper operation and to meet safety and electromagnetic interference (EMI) requirements, you must connect an EX Series switch to earth ground before you connect power to the switch.
Page 128 Table 40: Parts Required for Connecting an EX Series Switch to Earth Ground Earthing Grounding Terminal Cable Grounding Lug Screws and Additional Switch Location Requirements Specifications Washers Information EX2200 Rear panel of 14 AWG (2 mm²), Panduit the chassis minimum 90° C LCC10-14BWL or 10-32 x .25 in.
Page 129 Table 40: Parts Required for Connecting an EX Series Switch to Earth Ground (continued) Earthing Grounding Terminal Cable Grounding Lug Screws and Additional Switch Location Requirements Specifications Washers Information EX2300 Rear panel of EX2300 EX2300 switches EX2300 the chassis switches except switches except...
Page 130 Terminal Cable Grounding Lug Screws and Additional Switch Location Requirements Specifications Washers Information EX4200, Left side of 14 AWG (2 mm²), Panduit Two 10-32 “Special EX4500, the chassis minimum 90° C LCC10-14BWL or x .25 in. screws Instructions to Follow wire, or as equivalent—...
Page 131 Table 40: Parts Required for Connecting an EX Series Switch to Earth Ground (continued) Earthing Grounding Terminal Cable Grounding Lug Screws and Additional Switch Location Requirements Specifications Washers Information EX8216 Two earthing 2 AWG Panduit LCD2-14A-Q Two ¼ -20 x terminals: (33.6 mm²), or equivalent...
Page 132: Special Instructions To Follow Before Connecting Earth Ground To An Ex Series Switch
Table 41: Special Instructions to Follow Before Connecting Earth Ground to an EX Series Switch Switch Special Instructions EX3200 and Some early variants of EX3200 and EX4200 switches for which the Juniper Networks model EX4200 number on the label next to the protective earthing terminal is from 750-021xxx through 750-030xxx require 10-24x.25 in. screws.
Page 133: Connecting Earth Ground To An Ex Series Switch
Table 41: Special Instructions to Follow Before Connecting Earth Ground to an EX Series Switch (continued) Switch Special Instructions EX4200, EX4500, If you plan to mount your switch on four posts of a rack or cabinet, mount your switch in the and EX4550 rack or cabinet before attaching the grounding lug to the switch.
Page 134: Connecting Ac Power To An Ex4200 Switch
Connecting AC Power to an EX4200 Switch The power supply in an EX4200 switch is a hot-removable and hot-insertable field-replaceable unit (FRU) located on the rear panel: You can remove and replace it without powering off the switch or disrupting switch functions.
Page 135 “Connect Earth Ground to an EX Series Switch” on page 127. Install the power supply in the chassis. For instructions on installing a power supply in an EX4200 switch, “Installing a Power Supply in an EX4200 Switch” on page 197.
Page 136 ALM LED. The LED remains red until the switch is connected to a network. Figure 41: Connecting the AC Power Cord Retainer Clip to an AC Power Supply in an EX4200 Switch Figure 42: Connecting an AC Power Cord to an AC Power Supply in an EX4200 Switch...
Page 137: Connecting Dc Power To An Ex4200 Switch
Connecting DC Power to an EX4200 Switch The power supply in an EX4200 switch is a hot-removable and hot-insertable field-replaceable unit (FRU) located on the rear panel: You can remove and replace it without powering off the switch or disrupting switch functions.
Page 138 “Connect Earth Ground to an EX Series Switch” on page 127. Install the power supply in the chassis. For instructions on installing a power supply in an EX4200 switch, “Installing a Power Supply in an EX4200 Switch” on page 197.
Page 139 3. Remove the screw securing the terminal block cover using the screwdriver and remove the terminal block cover (see Figure 44 on page 139). Save the screw. Figure 44: Removing the Terminal Block Cover from a DC Power Supply 4. Remove the screws on the terminals using the screwdriver. Save the screws. WARNING: Ensure that the power cables do not block access to switch components or drape where people can trip on them.
Page 140 c. Secure the ring lug of the negative (–) DC power source cable to the A– or B– terminal on the DC power supply. d. Tighten the screws on the power supply terminals until snug using the screwdriver. Do not overtighten—apply between 8 lb-in.
Page 141: Connecting The Ex4200 To External Devices
7. Close the input circuit breaker. 8. Verify that the LEDs on the power supply are lit green and are on steadily. Connecting the EX4200 to External Devices IN THIS SECTION Connect a Device to a Network for Out-of-Band Management | 141...
Page 142: Connect A Device To A Management Console Using An Rj-45 Connector
Figure 47: Connect a Device to a Network for Out-of-Band Management Management PC Management Network Management PC To Management Port (on Device) Management PC Connect a Device to a Management Console Using an RJ-45 Connector You can configure and manage devices using a dedicated management channel. Each device has a console port which you can connect to using an Ethernet cable with an RJ-45 connector.
Page 143: Connecting The Ex4200 To The Network
Install a Transceiver | 143 Connect a Fiber-Optic Cable | 146 Install a Transceiver The transceivers for Juniper Networks devices are hot-removable and hot-insertable field-replaceable units (FRUs): You can remove and replace them without powering off the device or disrupting the device functions.
Page 144 Juniper Networks with your Juniper Networks device. CAUTION: If you face a problem running a Juniper Networks device that uses a third-party optic or cable, the Juniper Networks Technical Assistance Center (JTAC) can help you diagnose the source of the problem. Your JTAC engineer might recommend that you check the third-party optic or cable and potentially replace it with an equivalent Juniper Networks optic or cable that is qualified for the device.
Page 145 WARNING: Do not leave a fiber-optic transceiver uncovered except when inserting or removing a cable. The rubber safety cap keeps the port clean and prevents accidental exposure to laser light. 4. If the port in which you want to install the transceiver is covered with a dust cover, remove the dust cover and save it in case you need to cover the port later.
Page 146: Connect A Fiber-Optic Cable
CAUTION: Do not let fiber-optic cable hang free from the connector. Do not allow fastened loops of cable to dangle, which stresses the cable at the fastening point. CAUTION: Avoid bending fiber-optic cable beyond its minimum bend radius. An arc smaller than a few inches in diameter can damage the cable and cause problems that are difficult to diagnose.
Page 147: Configuring Junos Os On The Ex4200
Do not let fiber-optic cables hang free from the connector. Do not allow fastened loops of cables to dangle, which stresses the cables at the fastening point. Configuring Junos OS on the EX4200 IN THIS SECTION EX4200 Default Configuration | 148...
Page 148: Ex4200 Default Configuration
You can always revert to the factory default configuration. See Reverting to the Default Factory Configuration for the EX Series Switch. The following factory default configuration file is for an EX4200 switch with 24 ports (for models that have more ports, this default configuration file has more interfaces): NOTE: In this example, ge-0/0/0 through ge-0/0/23 are the network interface ports.
Page 149 unit 0 { family ethernet-switching; ge-0/0/1 { unit 0 { family ethernet-switching; ge-0/0/2 { unit 0 { family ethernet-switching; ge-0/0/3 { unit 0 { family ethernet-switching; ge-0/0/4 { unit 0 { family ethernet-switching; ge-0/0/5 { unit 0 { family ethernet-switching; ge-0/0/6 { unit 0 { family ethernet-switching;...
Page 150 ge-0/0/9 { unit 0 { family ethernet-switching; ge-0/0/10 { unit 0 { family ethernet-switching; ge-0/0/11 { unit 0 { family ethernet-switching; ge-0/0/12 { unit 0 { family ethernet-switching; ge-0/0/13 { unit 0 { family ethernet-switching; ge-0/0/14 { unit 0 { family ethernet-switching;...
Page 151 ge-0/0/18 { unit 0 { family ethernet-switching; ge-0/0/19 { unit 0 { family ethernet-switching; ge-0/0/20 { unit 0 { family ethernet-switching; ge-0/0/21 { unit 0 { family ethernet-switching; ge-0/0/22 { unit 0 { family ethernet-switching; ge-0/0/23 { unit 0 { family ethernet-switching;...
Page 152 ge-0/1/1 { unit 0 { family ethernet-switching; ge-0/1/2 { unit 0 { family ethernet-switching; ge-0/1/3 { unit 0 { family ethernet-switching; protocols { igmp-snooping{ vlan all; lldp { interface all; lldp-med { interface all; rstp; ethernet-switching-options { storm-control { interface all; poe { interface all;...
Page 153: Connecting And Configuring An Ex Series Switch (Cli Procedure)
Connecting and Configuring an EX Series Switch (CLI Procedure) There are two ways to connect and configure an EX Series switch: one method is through the console by using the CLI and the other is by using the J-Web interface. NOTE: EX2200-24T-4G-DC switches do not support switch connection and configuration through the J-Web interface.
Page 154 See Rear Panel of an EX3200 Switch. See Rear Panel of an EX3300 Switch. See Rear Panel of an EX3400 Switch. “Rear Panel of an EX4200 Switch” on page See EX4300 Switches Hardware Overview See Front Panel of an EX4500 Switch.
Page 155 5. Enable services such as SSH and Telnet. NOTE: You will not be able to log in to the switch as the root user through Telnet. Root login is allowed only through SSH. The default option for SSH is yes. Select this to enable SSH. The default option for Telnet is no.
Page 156: Connecting And Configuring An Ex Series Switch (J-Web Procedure)
Installing and Connecting an EX3200 Switch Installing and Connecting an EX3300 Switch Installing and Connecting an EX3400 Switch Installing and Connecting an EX4200 Switch | 114 Installing and Connecting an EX4300 Switch Installing and Connecting an EX4550 Switch Installing and Connecting an EX4500 Switch...
Page 157 EX2200 and EX2200-C switch—The LEDs on the network ports on the front panel blink when the switch is in the initial setup mode. EX3200, EX3300, EX4200, EX4300 switches except EX4300-48MP and EX4300-48MP-S switches, EX4500, EX4550, EX6200, or EX8200 switch—The LCD panel displays a count-down timer when the switch is in initial setup mode.
Page 158 3. Press Enter to confirm setup and continue with EZSetup. 2. Connect the Ethernet cable from the Ethernet port on the PC to the switch. EX2200, EX3200, or EX4200 switch—Connect the cable to port 0 (ge-0/0/0) on the front panel of the switch.
Page 159 EX4500 or EX4550 switch—Connect the cable to the port labeled MGMT on the front panel (LCD panel side) of the switch. EX4650 switches—Connect the cable to the port labeled CON on the rear panel of the switch. EX6200 switch—Connect the cable to one of the ports labeled MGMT on the Switch Fabric and Routing Engine (SRE) module in slot 4 or 5 in an EX6210 switch.
Page 160: Configuring The Lcd Panel On Ex Series Switches (Cli Procedure)
Use the automatically created VLAN default for management—Select this option to configure all data interfaces as members of the default VLAN. Specify the management IP address and the default gateway. Create a new VLAN for management—Select this option to create a management VLAN. Specify the VLAN name, VLAN ID, management IP address, and default gateway.
Page 161: Disabling Or Enabling Menus And Menu Options On The Lcd Panel
The LCD panel on the front panel of EX Series switches displays a variety of information about the switch in the Status menu and provides the Maintenance menu to enable you to perform basic operations such as initial setup and reboot. You can disable these menus or individual menu options if you do not want switch users to use them.
Page 162: Configuring A Custom Display Message
To display a custom message temporarily: On an EX3200 switch, a standalone EX3300 switch, a standalone EX4200 switch, a standalone EX4300 switch except EX4300-48MP and EX4300-48MP-S switches, a standalone EX4500 switch, a standalone EX4550 switch, an EX6200 switch, an EX8200 switch, or an XRE200 External Routing Engine: user@switch>...
Page 163: Dashboard For Ex Series Switches
NOTE: This topic applies only to the J-Web Application package. When you log in to the J-Web user interface, the dashboard for the Juniper Networks EX Series Ethernet Switches appears. Use the dashboard to view system information. The Update Available window appears if there is a latest update of the J-Web Application package available on the Juniper Networks server.
Page 164: Graphical Chassis Viewer
Graphical Chassis Viewer The Dashboard panel displays a graphical view of the chassis of a switch. In a Virtual Chassis, it displays a graphical view of each member switch. In a Virtual Chassis, the default values are shown on the Dashboard panel when no chassis image is clicked. The panel displays the value for a switch if you click its image.
Page 165 The status of the member switch is displayed on the image of the switch. If the member switch appears dimmed, it means the switch is not present, is inactive, or is not provisioned in the Virtual Chassis. If the member switch does not appear dimmed, it means the switch is present and is active. Table 43 on page 165 describes the possible status of a member switch.
Page 166: System Information Panel
System Information Panel Table 44: System Information Field Description System name Indicates the local name of the EX Series switch. The local name of the EX Series switches changes when an individual image is clicked. For EX4650 switches, indicates the host name of the switch.
Page 167 Table 44: System Information (continued) Field Description Inventory details...
Page 168 Chassis, the value displayed in Inventory details field is always 1 FPC. FPC is a legacy term for a slot in a large Juniper Networks chassis; which simply refers to the standalone switch. For EX2200 and EX2200-C switches configured as a Virtual Chassis, the value displayed in the Inventory details field is 1–4 FPC, with the number corresponding...
Page 169: Health Status Panel
For EX4650 switches, click the image of the switch to display the uptime. Last configured time Indicates the time when the switch was last configured. Health Status Panel Table 45: Health Status Field Description EX2200, EX2200-C, EX3200, EX3300, EX4200, and EX4300 Switches...
Page 170 Table 45: Health Status (continued) Field Description Memory util. Indicates the memory used in the Routing Engine. In a Virtual Chassis configuration, the memory utilization value of the primary Routing Engine is displayed. NOTE: In EX4300 and EX4600 Virtual Chassis, to display the Routing Engine memory utilization of the primary or backup, click the respective image.
Page 171 Table 45: Health Status (continued) Field Description Fan status Indicates the status of the fans in the fan tray. The possible values are OK, Failed, and Absent. In a Virtual Chassis configuration, the fan status of the primary switch is displayed by default. To display the fan status for any switch , click the image of that switch.
Page 172 Table 45: Health Status (continued) Field Description Memory util. Indicates the memory used in the primary Routing Engine. Click the backup Routing Engine to view the memory used in the backup Routing Engine. CPU load Indicates the average CPU usage over 15 minutes. Flash Indicates the usage and capacity of internal flash memory and any external USB flash drive.
Page 173: Capacity Utilization Panel
Table 45: Health Status (continued) Field Description Fan Status Indicates the status of the fans in the fan tray. The possible values are OK, Failed, and Absent. Capacity Utilization Panel Table 46: Capacity Utilization Field Description Number of active ports Indicates the number of active ports in the switch.
Page 174: Alarms Panel
Table 48 on page 175—Describes the chassis viewer for EX2200-C switches. Table 49 on page 176—Describes the chassis viewer for EX3200, EX3300, and EX4200 switches. Table 50 on page 178—Describes the chassis viewer for EX4300 switches. Table 51 on page 180—Describes the chassis viewer for EX4500 switches.
Page 175 USB port Indicates the USB port for the switch. NOTE: We recommend that you use USB flash drives purchased from Juniper Networks for your EX Series switch. Fan tray Mouse over the fan tray icon to display name, status, and description information.
Page 176 (You might do this for initial switch configuration.) USB port Indicates the USB port for the switch. NOTE: We recommend that you use USB flash drives purchased from Juniper Networks for your EX Series switch. Rear View Power supply Mouse over the power outlet icon to display name, status, and description information.
Page 177 Table 49: Chassis Viewer for EX3200, EX3300, and EX4200 Switches (continued) Field Description Interface status In the image, the following colors denote the interface status: Green—Interface is up and operational. Yellow—Interface is up but is nonoperational. Gray—Interface is down and nonoperational.
Page 178 Virtual Chassis, the status of the fans of the selected member switch is displayed. Virtual Chassis port Displayed only when EX4200 switches are configured as a Virtual Chassis. The following colors denote the Virtual Chassis port (VCP) status: Green—VCP is up and operational.
Page 179 USB port Indicates the USB port for the switch. NOTE: We recommend that you use USB flash drives purchased from Juniper Networks for your EX Series switch. Fan tray Mouse over the fan tray icons to display name, status, and description information.
Page 180 Table 50: Chassis Viewer for EX4300 Switches (continued) Field Description PIC 1 slot The rear panel of a 24-port and a 48-port EX4300 switch has four (built-in) 40-Gigabit QSFP+ ports, and the rear panel of an EX4300-32F switch has two (built-in) 40-Gigabit QSFP+ ports, in which you can install QSFP+ transceivers.
Page 181 Use this port for initial switch configuration. USB port Indicates the USB port for the switch. NOTE: We recommend that you use USB flash drives purchased from Juniper Networks for your EX Series switch. Rear View of the EX4500 Switch Fan tray Mouse over the fan tray icon to display status of the fans and airflow direction information.
Page 182 (uplink or Virtual Chassis). USB port Indicates the USB port for the switch. NOTE: We recommend that you use USB flash drives purchased from Juniper Networks for your EX Series switch. Rear View of the EX4550 Switch Fan tray Mouse over the fan tray icon to display the status of the fans and airflow direction information.
Page 183 Table 52: Chassis Viewer for EX4550 Switches (continued) Field Description Virtual Chassis port Displayed only when switches are configured as a Virtual Chassis. In the image, the colors listed below denote the Virtual Chassis port (VCP) status: Green—VCP is up and operational. Yellow—VCP is up but is nonoperational.
Page 184 USB port Indicates the USB port for the switch. NOTE: We recommend that you use USB flash drives purchased from Juniper Networks for your EX Series switch. Fan tray Mouse over the fan tray icons to display name, status, and description information.
Page 185 You can view status for the following ports on the SRE module: USB port—Indicates the USB port for the switch. NOTE: We recommend that you use USB flash drives purchased from Juniper Networks for your EX Series switch. Management (me0) port—The management port is used to connect the switch to a management device for out-of-band management.
Page 186 You can view status for the following ports on the SRE module: USB port—Indicates the USB port for the switch. NOTE: We recommend that you use USB flash drives purchased from Juniper Networks for your EX Series switch. Auxiliary port—This port is unavailable.
Page 187 Table 56: Chassis Viewer for EX8208 Switches (continued) Field Description Slot numbers Slots on the switch are labeled, from the top of the switch down: 0–3 (line cards) SRE0, SF, SRE1 (SRE and SF modules) 4–7 (line cards) Temperature The active slots contain a gray temperature icon. Mouse over the icon to display temperature information for the slot.
Page 188 You can view status for the following ports on the RE module: USB port—Indicates the USB port for the switch. NOTE: We recommend that you use USB flash drives purchased from Juniper Networks for your EX Series switch. Auxiliary port—This port is unavailable.
Page 189 USB port Indicates the USB port for the switch. NOTE: We recommend that you use USB flash drives purchased from Juniper Networks for your EX Series switch. PIC1 slot You can install a Virtual Chassis module in the PIC1 slot. Mouse over the Virtual Chassis ports to display the port status details.
Page 190 J-Web User Interface for EX Series Switches Overview EX2200 Switches Hardware Overview EX2300 Switches Hardware Overview EX3200 Switches Hardware Overview EX3300 Switches Hardware Overview EX4200 Switches Hardware Overview | 19 EX4300 Switches Hardware Overview EX4500 Switches Hardware Overview EX6210 Switch Hardware Overview EX8208 Switch Hardware Overview...
Page 191 EX8216 Switch Hardware Overview Check Active Alarms with the J-Web Interface | 240 XRE200 External Routing Engine Hardware Guide...
Page 192: Maintaining Components
C HAPTER Maintaining Components Maintaining the EX4200 Cooling System | 193 Maintaining the EX4200 Power System | 195 Maintain Transceivers | 199 Maintaining EX4200 Uplink Module | 208 Maintain Fiber-Optic Cables | 213 Replacing a Member Switch to Virtual Chassis | 216...
Page 193: Maintaining The Ex4200 Cooling System
Removing a Fan Tray from an EX4200 Switch The fan tray in an EX4200 switch is a hot-removable and hot-insertable field-replaceable unit (FRU) located on the rear panel of the switch: You can remove and replace it without powering off the switch or disrupting switch functions.
Page 194: Installing A Fan Tray In An Ex4200 Switch
All the EX4200 switch models, except the EX4200-24F-S and EX4200-48T-S switches are shipped with one fan tray pre-installed in the rear panel of the switches. EX4200-24F-S and EX4200-48T-S switches are not shipped with pre-installed fan tray; you must order them separately.
Page 195: Maintaining The Ex4200 Power System
Removing a Power Supply from an EX4200 Switch The power supply in an EX4200 switch is a hot-removable and hot-insertable field-replaceable unit (FRU) located on the rear panel of the switch: You can remove and replace it without powering off the switch or disrupting switch functions.
Page 196 To remove a power supply from the switch (see Figure 57 on page 196): 1. Place the antistatic bag or the antistatic mat on a flat, stable surface. 2. Disconnect power to the switch by performing one of the following: AC power supply—If the AC power source outlet has a power switch, set it to the OFF (0) position.
Page 197: Installing A Power Supply In An Ex4200 Switch
Installing a Power Supply in an EX4200 Switch The power supply in EX4200 switches is a hot-removable and hot-insertable field-replaceable unit (FRU): You can remove and replace it without powering off the switch or disrupting switch functions. All the EX4200 AC powered or DC powered switches, except the EX4200-24F-S and EX4200-48T-S switches are shipped with one AC or DC power supply pre-installed in the rear panel of the switches.
Page 198 NOTE: EX4200-24PX and EX4200-48PX switches do not support the 930 W (EX-PWR-930-AC) or the 600 W (EX-PWR-600-AC) AC power supplies that are used in the EX4200-48P and the EX4200-24P switch models. EX4200-24PX and EX4200-48PX switches work only with the power supply labeled EX-PWR2-930-AC. You can find the label on the top of the power supply (see “Removing a Power Supply from an EX4200 Switch”...
Page 199: Maintain Transceivers
Install a Transceiver | 204 Install a QSFP28 Transceiver | 206 Remove a Transceiver The transceivers for Juniper Networks devices are hot-removable and hot-insertable field-replaceable units (FRUs): You can remove and replace them without powering off the device or disrupting device functions.
Page 200 3. Label the cable connected to the transceiver so that you can reconnect it correctly. WARNING: Do not look directly into a fiber-optic transceiver or into the ends of fiber-optic cables. Fiber-optic transceivers and fiber-optic cables connected to transceivers emit laser light that can damage your eyes. WARNING: Do not leave a fiber-optic transceiver uncovered except when inserting or removing a cable.
Page 201 6. To remove an SFP, SFP+, XFP, or a QSFP+ transceiver: a. By using your fingers, pull open the ejector lever on the transceiver to unlock the transceiver. CAUTION: Before removing the transceiver, make sure that you open the ejector lever completely until you hear it click. This prevents damage to the transceiver.
Page 202: Remove A Qsfp28 Transceiver
9. Place the dust cover over the empty port or install the replacement transceiver. Remove a QSFP28 Transceiver The transceivers for Juniper Networks devices are hot-removable and hot-insertable field-replaceable units (FRUs). You can remove and replace them without powering off the device or disrupting the device functions.
Page 203 4. Disconnect the cable from the transceiver. Immediately cover the transceiver and the end of the cable with a rubber safety cap. CAUTION: Do not leave a fiber-optic transceiver uncovered except when inserting or removing a cable. The safety cap keeps the port clean and prevents accidental exposure to laser light.
Page 204: Install A Transceiver
Juniper Networks with your Juniper Networks device. CAUTION: If you face a problem running a Juniper Networks device that uses a third-party optic or cable, the Juniper Networks Technical Assistance Center (JTAC) can help you diagnose the source of the problem. Your JTAC engineer might recommend that you check the third-party optic or cable and potentially replace it with an equivalent Juniper Networks optic or cable that is qualified for the device.
Page 205 3. Check to see whether the transceiver is covered with a rubber safety cap. If it is not, cover the transceiver with a rubber safety cap. WARNING: Do not leave a fiber-optic transceiver uncovered except when inserting or removing a cable. The rubber safety cap keeps the port clean and prevents accidental exposure to laser light.
Page 206: Install A Qsfp28 Transceiver
Figure 61: Install a Transceiver Ejector lever — Install a QSFP28 Transceiver The transceivers for Juniper Networks devices are hot-removable and hot-insertable field-replaceable units (FRUs): You can remove and replace them without powering off the device or disrupting the device functions. NOTE: After you insert a transceiver or after you change the media-type configuration, wait for 6 seconds for the interface to display operational commands.
Page 207 CAUTION: If you face a problem running a Juniper Networks device that uses a third-party optic or cable, the Juniper Networks Technical Assistance Center (JTAC) can help you diagnose the source of the problem. Your JTAC engineer might recommend that you check the third-party optic or cable and potentially replace it with an equivalent Juniper Networks optic or cable that is qualified for the device.
Page 208: Maintaining Ex4200 Uplink Module
Installing an Uplink Module in an EX4200 Switch | 211 Removing an Uplink Module from an EX4200 Switch If your EX4200 switch includes an optional uplink module, it is installed in the switch's front panel. The different types of uplink modules are described in...
Page 209 The uplink module in EX4200 switches is a hot-removable and hot-insertable unit (FRU): You can remove and replace it without powering off the switch. NOTE: The packet forwarding process (pfem) restarts and causes traffic loss, if you: Install an uplink module (SFP, SFP+, or XFP)
Page 210 3. Insert the ball end of the screwdriver in the keyhole on the front panel of the uplink module and slide the screwdriver to the narrow part of the keyhole (see Figure 63 on page 210). CAUTION: Ensure the screwdriver does not slip out of the keyhole when you pull the uplink module out of the switch chassis.
Page 211: Installing An Uplink Module In An Ex4200 Switch
Figure 64: Removing an Uplink Module from an EX4200 Switch Installing an Uplink Module in an EX4200 Switch If your EX4200 switch includes an optional uplink module, you install it in the switch's front panel. The different types of uplink modules are described in “Uplink Modules Connector Pinout Information for...
Page 212 Before you begin installing an uplink module in the switch: Ensure that you have taken the necessary precautions to prevent ESD damage (see “Prevention of Electrostatic Discharge Damage” on page 298). Ensure that you have the following parts and tools available: Electrostatic discharge (ESD) grounding strap (If a grounding strap is not available, follow the alternative grounding method described in Step 1 of the following procedure.) Cross-head screwdriver (provided in the uplink module kit)
Page 213: Maintain Fiber-Optic Cables
Port Connectivity on an EX4200 Switch” on page 247. Figure 65: Installing an Uplink Module in an EX4200 Switch NOTE: If you have a Juniper J-Care service contract, register any addition, change, or upgrade of hardware components at https://www.juniper.net/customers/support/tools/updateinstallbase/ . Failure to do so can result in significant delays if you need replacement parts.
Page 214: Connect A Fiber-Optic Cable
Connect a Fiber-Optic Cable Before you connect a fiber-optic cable to an optical transceiver installed in a device, ensure that you have taken the necessary precautions for safe handling of lasers (see “Laser and LED Safety Guidelines and Warnings” on page 283).
Page 215: Disconnect A Fiber-Optic Cable
Disconnect a Fiber-Optic Cable Juniper Networks devices have optical transceivers to which you can connect fiber-optic cables. Before you disconnect a fiber-optic cable from an optical transceiver, ensure that you have taken the necessary precautions for safe handling of lasers. See “Laser and LED Safety Guidelines and Warnings”...
Page 216: Replacing A Member Switch To Virtual Chassis
Follow the instructions in the cleaning kit you use. Replacing a Member Switch to Virtual Chassis IN THIS SECTION Adding a New EX4200 Switch to an Existing EX4200 Virtual Chassis (CLI Procedure) | 217 Removing or Replacing a Member Switch of a Virtual Chassis Configuration | 223...
Page 217: Adding A New Ex4200 Switch To An Existing Ex4200 Virtual Chassis (Cli Procedure)
This topic explains how to add an EX4200 switch to an existing EX4200 Virtual Chassis. For information about adding an EX4200 switch to an EX4500 Virtual Chassis or a mixed Virtual Chassis, see Adding an EX4200 Switch to a Preprovisioned EX4500 Virtual Chassis or a Preprovisioned Mixed EX4200 and EX4500 Virtual Chassis (CLI Procedure).
Page 218 An active member switch might temporarily go down before coming back up as part of this procedure. Having traffic load-balanced across member switches using a LAG helps alleviate traffic loss during this procedure. To add a new member switch to an existing Virtual Chassis configuration within the same wiring closet: 1.
Page 219: Adding A New Switch From A Different Wiring Closet To An Existing Virtual Chassis
Adding a New Switch from a Different Wiring Closet to an Existing Virtual Chassis This procedure can be used to add an EX4200 switch to an EX4200 Virtual Chassis from a different wiring closet to an existing Virtual Chassis. To add a new switch from a different wiring closet to an existing Virtual Chassis configuration, you must use a long cable to connect the members switches across wiring closets.
Page 220 user@switch> request virtual-chassis vc-port set pic-slot 1 port 0 NOTE: If you are using a nonprovisioned configuration, you might configure the new member switch with a primary-role priority value that is less than that of the existing member switches. Doing so ensures that the new member switch will function in a linecard role when it is included within the Virtual Chassis configuration.
Page 221: Adding A New Switch To An Existing Preprovisioned Virtual Chassis Using Autoprovisioning And Automatic Vcp Conversion
Adding a New Switch to an Existing Preprovisioned Virtual Chassis Using Autoprovisioning and Automatic VCP Conversion This procedure can be used to add an EX4200 switch to an existing EX4200 Virtual Chassis using autoprovisioning, where after the new switch is provisioned and cabled into the Virtual Chassis, the interconnecting links automatically convert into VCP links.
Page 222 SEE ALSO Example: Expanding an EX4200 Virtual Chassis in a Single Wiring Closet Example: Setting Up a Multimember EX4200 Virtual Chassis Access Switch with a Default Configuration Example: Configuring an EX4200 Virtual Chassis Interconnected Across Multiple Wiring Closets Example: Configuring an EX4200 Virtual Chassis Using a Preprovisioned Configuration File...
Page 223: Removing Or Replacing A Member Switch Of A Virtual Chassis Configuration
Instead, see Removing a Device From a Virtual Chassis Fabric for VCF information. A mixed Virtual Chassis that contains EX4200, EX4500, or EX4550 switches. Instead, see Removing an EX4200, EX4500, or EX4550 Switch From a Mixed Virtual Chassis (CLI Procedure). An EX8200 Virtual Chassis.
Page 224: Remove A Member Switch And Make Its Member Id Available For Reassignment To A Different Switch
Remove a Member Switch and Make Its Member ID Available for Reassignment to a Different Switch To remove a switch from a Virtual Chassis without replacing it: 1. Power off and disconnect the member switch you want to remove from the Virtual Chassis. 2.
Page 225: Remove, Repair, And Reinstall The Same Switch
user@vc-master> request virtual-chassis recycle member-id member-id 7. If you want to use the removed switch as a standalone switch, you must remove any Virtual Chassis configuration items and settings on that switch. For a smooth transition to a new role as a standalone switch, we recommend to revert the switch to its default factory configuration using the request system zeroize command, and then apply the configuration items you want on the switch.
Page 226: Remove A Member Switch, Replace It With A Different Switch, And Reapply The Old Configuration
2. Repair, as necessary. 3. Reconnect the switch and power it on. Remove a Member Switch, Replace It with a Different Switch, and Reapply the Old Configuration If you are unable to repair a member switch, you can replace it with a different member switch of the same type while retaining the previous configuration.
Page 227 Virtual Chassis) Ensure that the correct version of Junos OS is or will be installed on the new member switch by performing either of the following tasks: Enable automatic software update on the Virtual Chassis. See Configuring Automatic Software Update on Virtual Chassis Member Switches.
Page 228 NOTE: You can set optical port VCPs on a standalone switch before interconnecting one link into an existing Virtual Chassis, or set them after connecting the link. In either case, you must set the ports as VCPs for the primary to detect and complete the process of adding the switch as a member.
Page 229: Replace A Member Switch With A Different Type Of Switch That Changes The Virtual Chassis To Mixed Mode
Adding a New Switch to an Existing EX4650 or QFX Series Virtual Chassis Adding a New EX4200 Switch to an Existing EX4200 Virtual Chassis (CLI Procedure) | 217 Adding an EX4200 Switch to a Preprovisioned EX4500 Virtual Chassis or a Preprovisioned Mixed EX4200...
Page 230: Maintaining Virtual Chassis Cable
Connecting a Virtual Chassis Cable to an EX4200 Switch | 231 Disconnecting a Virtual Chassis Cable from an EX4200 Switch If you need to disconnect an EX4200 switch from a Virtual Chassis configuration, you need to disconnect the Virtual Chassis cable from the Virtual Chassis ports (VCPs).
Page 231: Connecting A Virtual Chassis Cable To An Ex4200 Switch
Connecting a Virtual Chassis Cable to an EX4200 Switch EX4200 switches have two Virtual Chassis ports on the rear panel. You can use the Virtual Chassis ports to interconnect up to 10 EX4200 switches, enabling them to operate as a unified single high bandwidth switch.
Page 232 To connect a Virtual Chassis cable to an EX4200 switch (see Figure 68 on page 232): 1. Taking care not to touch module components, pins, leads, or solder connections, remove the Virtual Chassis cable from its bag. 2. Using both hands, place the Virtual Chassis cable connector in the empty Virtual Chassis port and slide it in gently until it is fully seated.
Page 233: Troubleshooting Hardware
C HAPTER Troubleshooting Hardware Troubleshooting EX4200 Components | 234...
Page 234: Troubleshooting Ex4200 Components
This topic applies only to the J-Web Application package. Alarms alert you to conditions that might prevent normal operation of the switch. Before monitoring alarms on a Juniper Networks EX Series Ethernet switch, become familiar with the terms defined in Table 59 on page 234.
Page 235 Table 59: Alarm Terms (continued) Term Definition chassis alarm Preset alarm triggered by a physical condition on the switch such as a power supply failure, excessive component temperature, or media failure. system alarm Preset alarm triggered by a missing rescue configuration or failure to install a license for a licensed software feature.
Page 236: Chassis Component Alarm Conditions On Ex4200 Switches
This topic describes the chassis component alarm conditions on EX4200 switches. Table 60 on page 236 lists the alarms that the chassis components can generate on EX4200 switches, their severity levels, and the actions you can take to respond to them.
Page 237 Table 60: Chassis Component Alarm Conditions on EX4200 Switches (continued) Chassis Alarm Component Alarm Condition Severity Remedy Temperature The temperature inside Major (red) Check the room temperature. the chassis has exceeded Check the fan. 203° F (95° C). If the above two checks show no problems, open a support case using the Case Manager link at https://www.juniper.net/support/...
Page 238 Table 60: Chassis Component Alarm Conditions on EX4200 Switches (continued) Chassis Alarm Component Alarm Condition Severity Remedy Media Device booted from Minor Open a support case using the Case Manager link at backup root. (yellow) https://www.juniper.net/support/ or call 1-888-314-5822 (toll-free within the United States and Canada) or 1-408-745-9500 (from outside the United States).
Page 239 Table 60: Chassis Component Alarm Conditions on EX4200 Switches (continued) Chassis Alarm Component Alarm Condition Severity Remedy Redundant RPS is disconnected. Major (red) Check the RPS connection. power RPS fan has failed. Major (red) Open a support case using the Case Manager link at system (RPS) https://www.juniper.net/support/...
Page 240: Check Active Alarms With The J-Web Interface
Table 60: Chassis Component Alarm Conditions on EX4200 Switches (continued) Chassis Alarm Component Alarm Condition Severity Remedy Routing /var partition usage is Minor Clean up the system file storage space on the switch. high. (yellow) For more information, see Freeing Up System Storage Engine Space.
Page 241: Monitor System Log Messages
NOTE: When the switch is reset, the active alarms are displayed. Meaning Table 61 on page 241 lists the alarm output fields. Table 61: Summary of Key Alarm Output Fields Field Values Type Category of the alarm: Chassis—Indicates an alarm condition on the chassis (typically an environmental alarm such as one related to temperature).
Page 242 Apply a filter or a combination of filters to view messages. You can use filters to display relevant events. Table 62 on page 242 describes the different filters, their functions, and the associated actions. To view events in the CLI, enter the following command: show log Table 62: Filtering System Log Messages Field...
Page 243 Table 62: Filtering System Log Messages (continued) Field Function Your Action Event ID Specifies the event ID for which you want To specify events with a specific ID, type to display the messages. the partial or complete ID— for example, TFTPD_AF_ERR.
Page 244 Table 62: Filtering System Log Messages (continued) Field Function Your Action Generate Raw Report Generates a list of event log messages in To generate a raw report: nontabular format. NOTE: Click Generate Raw Report. Starting in Junos OS The Opening filteredEvents.html window Release 14.1X53, a Raw appears.
Page 245 NOTE: By default, the View Events page in the J-Web interface displays the most recent 25 events, with severity levels highlighted in different colors. After you specify the filters, Event Summary displays the events matching the specified filters. Click the First, Next, Prev, and Last links to navigate through messages.
Page 246: Troubleshooting Network Interfaces On Ex4200 Switches
Understand Alarm Types and Severity Levels on EX Series Switches | 234 Troubleshooting Network Interfaces on EX4200 Switches This topic provides troubleshooting information for specific problems related to interfaces on EX4200 switches. The interface on the port in which an SFP or SFP+ transceiver is installed is down | 246...
Page 247: Troubleshooting Virtual Chassis Port Connectivity On An Ex4200 Switch
Virtual Chassis port (VCP) connection does not work | 247 Virtual Chassis port (VCP) connection does not work Problem Description: The Virtual Chassis port (VCP) connection configured in an EX4200 switch does not work. Environment: A port of the uplink module is set as a VCP. Cause The uplink module installed in the switch was replaced.
Page 248: Troubleshooting Power Supply Installation Alarms On Ex4200 Switches
The power supply you have installed is not compatible with the switch. EX4200-24PX and EX4200-48PX switches do not support the 930 W (EX-PWR-930-AC) or the 600 W (EX-PWR-600-AC) AC power supplies that are used in the EX4200-48P and the EX4200-24P switch models.
Page 249: Troubleshooting Poe Voltage Injection Failure In Ex2300, Ex3400, Or Ex4300 Switch Models With Poe Capability
When you connect EX2300, EX3400, or EX4300 switch models with PoE capability to EX2200, EX3200, or EX4200 switch models with PoE capability by using RJ-45 network ports, disable PoE on all the RJ-45 network ports used to connect the switches using the command: user@device>...
Page 250 CAUTION: To prevent the switch from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature. To prevent airflow restriction, allow at least 6 inches (15.2 cm) of clearance around the ventilation openings. 1. Connect to the switch by using Telnet and issue the show chassis environment command. This command displays environmental information about the switch chassis, including the temperature, and information about the fans, power supplies, and Routing Engines.
Page 251 FPC 3 XQ TSen 67 degrees C / 152 degrees F FPC 3 XQ Chip 63 degrees C / 145 degrees F FPC 3 XQ_XR0 TSen 67 degrees C / 152 degrees F FPC 3 XQ_XR0 Chip 68 degrees C / 154 degrees F FPC 3 XM TSen 67 degrees C / 152 degrees F FPC 3 XM Chip...
Page 252 Table 64: show chassis environment Output Fields (continued) Field Name Field Description Status Status of the specified chassis component. For example, if Class is Fans, the fan status can be: OK: The fans are operational. Testing: The fans are being tested during initial power-on. Failed: The fans have failed or the fans are not spinning.
Page 253 Table 65: show chassis temperature-thresholds Output Fields (continued) Field Name Field Description Yellow or amber alarm Temperature threshold, in degrees Celsius, that trigger a yellow or amber alarm. Normal—The temperature threshold that must be exceeded on the component to trigger a yellow o Bad fan—The temperature threshold that must be exceeded on the component to trigger a yellow o Red alarm Temperature threshold, in degrees Celsius, that trigger a red alarm.
Page 254 Replace the faulty fan module or fan tray. If the above two checks show no problems, open a support case using the Case Manager link at https://www.juniper.net/support/ or call 1-888-314-5822 (toll-free within the United States and Canada) or 1-408-745-9500 (from outside the United States).
Page 255: Contacting Customer Support And Returning The Chassis Or Components
C HAPTER Contacting Customer Support and Returning the Chassis or Components Returning an EX4200 Switch or Component for Repair or Replacement | 256...
Page 256: Returning An Ex4200 Switch Or Component For Repair Or Replacement
Packing an EX4200 Switch or Component for Shipping | 259 Returning an EX4200 Switch or Component for Repair or Replacement If you need to return a switch or hardware component to Juniper Networks for repair or replacement, follow this procedure: 1.
Page 257: Locating The Serial Number On An Ex4200 Switch Or Component
Locating the Serial Number ID Labels on FRUs in an EX4200 Switch | 258 If you are returning a switch or hardware component to Juniper Networks for repair or replacement, you must locate the serial number of the switch or component. You must provide the serial number to the Juniper Networks Technical Assistance Center (JTAC) when you contact them to obtain Return Materials Authorization (RMA).
Page 258: Locating The Chassis Serial Number Id Label On An Ex4200 Switch
For information about the show chassis hardware command, see show chassis hardware. Locating the Chassis Serial Number ID Label on an EX4200 Switch EX4200 switches have serial number ID labels located on the rear panel of the chassis (see Figure 69 on page 258).
Page 259: Packing An Ex4200 Switch Or Component For Shipping
Packing an EX4200 Switch for Shipping | 260 Packing EX4200 Switch Components for Shipping | 261 If you are returning an EX4200 switch or component to Juniper Networks for repair or replacement, pack the item as described in this topic.
Page 260: Packing An Ex4200 Switch For Shipping
Antistatic bag, one for each switch or component Phillips (+) screwdriver, number 2 Packing an EX4200 Switch for Shipping To pack a switch for shipping: 1. On the console or other management device connected to the switch (to the master switch in a Virtual...
Page 261: Packing Ex4200 Switch Components For Shipping
11. Close the top of the cardboard shipping box and seal it with packing tape. 12. Write the RMA number on the exterior of the box to ensure proper tracking. Packing EX4200 Switch Components for Shipping CAUTION: Do not stack switch components. Return individual components in separate boxes if they do not fit together on one level in the shipping box.
Page 262: Safety And Compliance Information
C HAPTER Safety and Compliance Information General Safety Guidelines and Warnings | 264 Definitions of Safety Warning Levels | 265 Qualified Personnel Warning | 268 Warning Statement for Norway and Sweden | 269 Fire Safety Requirements | 269 Installation Instructions Warning | 271 Chassis and Component Lifting Guidelines | 271 Restricted Access Warning | 273 Ramp Warning | 275...
Page 263 TN Power Warning | 314 Agency Approvals for EX Series Switches | 314 Compliance Statements for EMC Requirements for EX Series Switches | 315 Compliance Statements for Acoustic Noise for EX Series Switches | 320 Statements of Volatility for Juniper Network Devices | 320...
Page 264: General Safety Guidelines And Warnings
General Safety Guidelines and Warnings The following guidelines help ensure your safety and protect the device from damage. The list of guidelines might not address all potentially hazardous situations in your working environment, so be alert and exercise good judgment at all times. Perform only the procedures explicitly described in the hardware documentation for this device.
Page 265: Definitions Of Safety Warning Levels
Always ensure that all modules, power supplies, and cover panels are fully inserted and that the installation screws are fully tightened. Definitions of Safety Warning Levels The documentation uses the following levels of safety warnings (there are two Warning formats): NOTE: You might find this information helpful in a particular situation, or you might overlook this important information if it was not highlighted in a Note.
Page 267 WARNING: This symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Waarschuwing Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken.
Page 268: Qualified Personnel Warning
Varning! Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanligt förfarande för att förebygga skador. Qualified Personnel Warning WARNING: Only trained and qualified personnel should install or replace the device.
Page 269: Warning Statement For Norway And Sweden
In addition, you should establish procedures to protect your equipment in the event of a fire emergency. Juniper Networks products should be installed in an environment suitable for electronic equipment. We recommend that fire suppression equipment be available in the event of a fire in the vicinity of the equipment and that all local fire, safety, and electrical codes and ordinances be observed when you install and operate your equipment.
Page 270 To keep warranties effective, do not use a dry chemical fire extinguisher to control a fire at or near a Juniper Networks device. If a dry chemical fire extinguisher is used, the unit is no longer eligible for coverage under a service agreement.
Page 271: Installation Instructions Warning
Installation Instructions Warning WARNING: Read the installation instructions before you connect the device to a power source. Waarschuwing Raadpleeg de installatie-aanwijzingen voordat u het systeem met de voeding verbindt. Varoitus Lue asennusohjeet ennen järjestelmän yhdistämistä virtalähteeseen. Avertissement Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation.
Page 272 Up to 39.7 lbs (18 kg): One person. 39.7 lbs (18 kg) to 70.5 lbs (32 kg): Two or more people. 70.5 lbs (32 kg) to 121.2 lbs (55 kg): Three or more people. Above 121.2 lbs (55 kg): Material handling systems (such as levers, slings, lifts and so on) must be used. When this is not practical, specially trained persons or systems must be used (riggers or movers).
Page 273: Restricted Access Warning
Restricted Access Warning...
Page 274 WARNING: This unit is intended for installation in restricted access areas. A restricted access area is an area to which access can be gained only by service personnel through the use of a special tool, lock and key, or other means of security, and which is controlled by the authority responsible for the location.
Page 275: Ramp Warning
¡Atención! Esta unidad ha sido diseñada para instalarse en áreas de acceso restringido. Área de acceso restringido significa un área a la que solamente tiene acceso el personal de servicio mediante la utilización de una herramienta especial, cerradura con llave, o algún otro medio de seguridad, y que está...
Page 276: Rack-Mounting And Cabinet-Mounting Warnings
Rack-Mounting and Cabinet-Mounting Warnings Ensure that the rack or cabinet in which the device is installed is evenly and securely supported. Uneven mechanical loading could lead to a hazardous condition.
Page 278 De onderstaande richtlijnen worden verstrekt om uw veiligheid te verzekeren: De Juniper Networks switch moet in een stellage worden geïnstalleerd die aan een bouwsel is verankerd. Dit toestel dient onderaan in het rek gemonteerd te worden als het toestel het enige in het rek is.
Page 279 Les directives ci-dessous sont destinées à assurer la protection du personnel: Le rack sur lequel est monté le Juniper Networks switch doit être fixé à la structure du bâtiment. Si cette unité constitue la seule unité montée en casier, elle doit être placée dans le bas.
Page 280 Il Juniper Networks switch deve essere installato in un telaio, il quale deve essere fissato alla struttura dell'edificio. Questa unità deve venire montata sul fondo del supporto, se si tratta dell'unica unità da montare nel supporto. Quando questa unità viene montata in un supporto parzialmente pieno, caricare il supporto dal basso all'alto, con il componente più...
Page 281 El Juniper Networks switch debe instalarse en un bastidor fijado a la estructura del edificio. Colocar el equipo en la parte inferior del bastidor, cuando sea la única unidad en el mismo. Cuando este equipo se vaya a instalar en un bastidor parcialmente ocupado, comenzar la instalación desde la parte inferior hacia la superior colocando el equipo más pesado...
Page 282: Grounded Equipment Warning
Grounded Equipment Warning WARNING: This device must be properly grounded at all times. Follow the instructions in this guide to properly ground the device to earth. Waarschuwing Dit apparaat moet altijd goed geaard zijn. Volg de instructies in deze gids om het apparaat goed te aarden. Varoitus Laitteen on oltava pysyvästi maadoitettu.
Page 283: Laser And Led Safety Guidelines And Warnings
Class 1 LED Product Warning | 285 Laser Beam Warning | 286 Juniper Networks devices are equipped with laser transmitters, which are considered a Class 1 Laser Product by the U.S. Food and Drug Administration and are evaluated as a Class 1 Laser Product per EN 60825-1 requirements.
Page 284: Class 1 Laser Product Warning
Class 1 Laser Product Warning WARNING: Class 1 laser product. Waarschuwing Klasse-1 laser produkt. Varoitus Luokan 1 lasertuote. Avertissement Produit laser de classe I. Warnung Laserprodukt der Klasse 1. Avvertenza Prodotto laser di Classe 1. Advarsel Laserprodukt av klasse 1. Aviso Produto laser de classe 1.
Page 285: Class 1 Led Product Warning
Class 1 LED Product Warning WARNING: Class 1 LED product. Waarschuwing Klasse 1 LED-product. Varoitus Luokan 1 valodiodituote. Avertissement Alarme de produit LED Class I. Warnung Class 1 LED-Produktwarnung. Avvertenza Avvertenza prodotto LED di Classe 1. Advarsel LED-produkt i klasse 1. Aviso Produto de classe 1 com LED.
Page 286: Laser Beam Warning
Laser Beam Warning WARNING: Do not stare into the laser beam or view it directly with optical instruments. Waarschuwing Niet in de straal staren of hem rechtstreeks bekijken met optische instrumenten. Varoitus Älä katso säteeseen äläkä tarkastele sitä suoraan optisen laitteen avulla. Avertissement Ne pas fixer le faisceau des yeux, ni l'observer directement à...
Page 287: Radiation From Open Port Apertures Warning
Radiation from Open Port Apertures Warning WARNING: Because invisible radiation might be emitted from the aperture of the port when no fiber cable is connected, avoid exposure to radiation and do not stare into open apertures. Waarschuwing Aangezien onzichtbare straling vanuit de opening van de poort kan komen als er geen fiberkabel aangesloten is, dient blootstelling aan straling en het kijken in open openingen vermeden te worden.
Page 288: Maintenance And Operational Safety Guidelines And Warnings
Maintenance and Operational Safety Guidelines and Warnings IN THIS SECTION Battery Handling Warning | 289 Jewelry Removal Warning | 290 Lightning Activity Warning | 292 Operating Temperature Warning | 293 Product Disposal Warning | 295 While performing the maintenance activities for devices, observe the following guidelines and warnings:...
Page 289: Battery Handling Warning
Battery Handling Warning WARNING: Replacing a battery incorrectly might result in an explosion. Replace a battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. Waarschuwing Er is ontploffingsgevaar als de batterij verkeerd vervangen wordt. Vervang de batterij slechts met hetzelfde of een equivalent type dat door de fabrikant aanbevolen is.
Page 290: Jewelry Removal Warning
Jewelry Removal Warning...
Page 291 WARNING: Before working on equipment that is connected to power lines, remove jewelry, including rings, necklaces, and watches. Metal objects heat up when connected to power and ground and can cause serious burns or can be welded to the terminals. Waarschuwing Alvorens aan apparatuur te werken die met elektrische leidingen is verbonden, sieraden (inclusief ringen, kettingen en horloges) verwijderen.
Page 292: Lightning Activity Warning
se conectan a la alimentación y a tierra, lo que puede ocasionar quemaduras graves o que los objetos metálicos queden soldados a los bornes. Varning! Tag av alla smycken (inklusive ringar, halsband och armbandsur) innan du arbetar på utrustning som är kopplad till kraftledningar. Metallobjekt hettas upp när de kopplas ihop med ström och jord och kan förorsaka allvarliga brännskador;...
Page 293: Operating Temperature Warning
Operating Temperature Warning...
Page 294 40° C. Para evitar a restrição à circulação de ar, deixe pelo menos um espaço de 15,2 cm à volta das aberturas de ventilação. ¡Atención! Para impedir que un encaminador de la serie Juniper Networks switch se recaliente, no lo haga funcionar en un área en la que se supere la temperatura ambiente máxima recomendada de 40°...
Page 295: Product Disposal Warning
Varning! Förhindra att en Juniper Networks switch överhettas genom att inte använda den i ett område där den maximalt rekommenderade omgivningstemperaturen på 40° C överskrids. Förhindra att luftcirkulationen inskränks genom att se till att det finns fritt utrymme på minst 15,2 cm omkring ventilationsöppningarna.
Page 296: General Electrical Safety Guidelines And Warnings
General Electrical Safety Guidelines and Warnings WARNING: Certain ports on the device are designed for use as intrabuilding (within-the-building) interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE) and require isolation from the exposed outside plant (OSP) cabling. To comply with NEBS requirements and protect against lightning surges and commercial power disturbances, the intrabuilding ports must not be metallically connected to interfaces that connect to the OSP or its wiring.
Page 297: Action To Take After An Electrical Accident
Canada—Canadian Electrical Code, Part 1, CSA C22.1. Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National Electrical Code and NFPA 75. Peut être installé dans des salles de matériel de traitement de l’information conformément à l’article 645 du National Electrical Code et à...
Page 298: Prevention Of Electrostatic Discharge Damage
Prevention of Electrostatic Discharge Damage Device components that are shipped in antistatic bags are sensitive to damage from static electricity. Some components can be impaired by voltages as low as 30 V. You can easily generate potentially damaging static voltages whenever you handle plastic or foam packing material or if you move components across plastic or carpets.
Page 299: Ac Power Electrical Safety Guidelines
Figure 70: Placing a Component into an Antistatic Bag CAUTION ELECTROSTATIC SENSITIVE DEVICES DO NOT OPEN OR HANDLE EXCEPT AT A STATIC-FREE WORKSTATION CAUTION: ANSI/TIA/EIA-568 cables such as Category 5e and Category 6 can get electrostatically charged. To dissipate this charge, always ground the cables to a suitable and safe earth ground before connecting them to the system.
Page 300 The power cord serves as the main disconnecting device for the AC-powered device. The socket outlet must be near the AC-powered device and be easily accessible. For devices that have more than one power supply connection, you must ensure that all power connections are fully disconnected so that power to the device is completely removed to prevent electric shock.
Page 301: Ac Power Disconnection Warning
AC Power Disconnection Warning WARNING: Before working on the device or near power supplies, unplug all the power cords from an AC-powered device. Waarschuwing Voordat u aan een frame of in de nabijheid van voedingen werkt, dient u bij wisselstroom toestellen de stekker van het netsnoer uit het stopcontact te halen. Varoitus Kytke irti vaihtovirtalaitteiden virtajohto, ennen kuin teet mitään asennuspohjalle tai työskentelet virtalähteiden läheisyydessä.
Page 302: Dc Power Electrical Safety Guidelines
DC Power Electrical Safety Guidelines A DC-powered device is equipped with a DC terminal block that is rated for the power requirements of a maximally configured device. For permanently connected equipment, a readily accessible disconnect device shall be incorporated external to the equipment. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.
Page 303: Dc Power Disconnection Warning
DC Power Disconnection Warning...
Page 304 WARNING: Before performing any of the DC power procedures, ensure that power is removed from the DC circuit. To ensure that all power is off, locate the circuit breaker on the panel board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the device handle of the circuit breaker in the OFF position.
Page 305: Dc Power Grounding Requirements And Warning
que toda a corrente foi DESLIGADA, localize o disjuntor no painel que serve o circuito de corrente contínua e coloque-o na posição OFF (Desligado), segurando nessa posição a manivela do interruptor do disjuntor com fita isoladora. ¡Atención! Antes de proceder con los siguientes pasos, comprobar que la alimentación del circuito de corriente continua (CC) esté...
Page 306 WARNING: When you install the device, the ground connection must always be made first and disconnected last. Waarschuwing Bij de installatie van het toestel moet de aardverbinding altijd het eerste worden gemaakt en het laatste worden losgemaakt. Varoitus Laitetta asennettaessa on maahan yhdistäminen aina tehtävä ensiksi ja maadoituksen irti kytkeminen viimeiseksi.
Page 307: Dc Power Wiring Sequence Warning
DC Power Wiring Sequence Warning...
Page 308 WARNING: Wire the DC power supply using the appropriate lugs. When connecting power, the proper wiring sequence is ground to ground, +RTN to +RTN, then –48 V to –48 V. When disconnecting power, the proper wiring sequence is –48 V to –48 V, +RTN to +RTN, then ground to ground.
Page 309 para moler. Observe que el alambre de tierra se debe conectar siempre primero y desconectar por último. Observe que el alambre de tierra se debe conectar siempre primero y desconectar por último. ¡Atención! Wire a fonte de alimentação de DC Usando os talões apropriados nan EXtremidade da fiação.
Page 310: Dc Power Wiring Terminations Warning
DC Power Wiring Terminations Warning...
Page 311 WARNING: When stranded wiring is required, use approved wiring terminations, such as closed-loop or spade-type with upturned lugs. These terminations must be the appropriate size for the wires and must clamp both the insulation and conductor. Waarschuwing Wanneer geslagen bedrading vereist is, dient u bedrading te gebruiken die voorzien is van goedgekeurde aansluitingspunten, zoals het gesloten-lus type of het grijperschop type waarbij de aansluitpunten omhoog wijzen.
Page 312 conexión vueltas hacia arriba. Estos terminales deberán ser del tamaño apropiado para los cables que se utilicen, y tendrán que sujetar tanto el aislante como el conductor. Varning! När flertrådiga ledningar krävs måste godkända ledningskontakter användas, t.ex. kabelsko av sluten eller öppen typ med uppåtvänd tapp. Storleken på dessa kontakter måste vara avpassad till ledningarna och måste kunna hålla både isoleringen och ledaren fastklämda.
Page 313: Multiple Power Supplies Disconnection Warning
Multiple Power Supplies Disconnection Warning WARNING: The network device has more than one power supply connection. All connections must be removed completely to remove power from the unit completely. Waarschuwing Deze eenheid heeft meer dan één stroomtoevoerverbinding; alle verbindingen moeten volledig worden verwijderd om de stroom van deze eenheid volledig te verwijderen.
Page 314: Tn Power Warning
TN Power Warning WARNING: The device is designed to work with a TN power system. Waarschuwing Het apparaat is ontworpen om te functioneren met TN energiesystemen. Varoitus Koje on suunniteltu toimimaan TN-sähkövoimajärjestelmien yhteydessä. Avertissement Ce dispositif a été conçu pour fonctionner avec des systèmes d'alimentation TN.
Page 315: Compliance Statements For Emc Requirements For Ex Series Switches
FCC 47CFR Part 15 Class A (USA) EN 55022 Class A Emissions (Europe) ICES-003 Class A VCCI Class A (Japan) AS/NZS CISPR 22 Class A (Australia/New Zealand) CISPR 22 Class A EN 55024 EN 300386 EN 61000-3-2 Power Line Harmonics EN 61000-3-3 Voltage Fluctuations and Flicker EN 61000-4-2 ESD EN 61000-4-3 Radiated Immunity...
Page 316: Canada
United States | 318 FCC Part 15 Statement | 318 Nonregulatory Environmental Standards | 319 This topic applies to hardware devices in the EX Series product family, which includes EX Series switches, the EX Series Redundant Power System (RPS), and the XRE200 External Routing Engine. This topic describes the EMC requirements for these hardware devices.
Page 317: Taiwan
Taiwan 此為甲類資訊技術設備。於一般家居環境使用時，本設備可能導致射頻干擾，用戶請採取相應措施。 The preceding translates as follows: This is a Class A device. In a domestic environment, this device might cause radio interference, in which case the user needs to take adequate measures. European Community This is a Class A device. In a domestic environment this device might cause radio interference, in which case the user needs to take adequate measures.
Page 318: Korea
VCCI-A Korea Korean Class A Warning The preceding translates as follows: This equipment is Industrial (Class A) electromagnetic wave suitability equipment and seller or user should take notice of it, and this equipment is to be used in the places except for home United States The device has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
Page 319: Nonregulatory Environmental Standards
NEBS compliance—These EX Series switches are Network Equipment Building System (NEBS) compliant: EX2200-24T and EX2200-48T EX3200-24T, EX3200-48T EX3300-24T, EX3300-48T EX4200-24T, EX4200-24F, EX4200-24F-S, EX4200-48T and EX4200-48T-S EX4300-24T, EX4300-24T-S, EX4300-24P, EX4300-24P-S, EX4300-32F, EX4300-32F-S, EX4300-48T, EX4300-48T-AFI, EX4300-48T-S, EX4300-48P, and EX4300-48P-S All EX4500 switches with AC power supplies...
Page 320: Compliance Statements For Acoustic Noise For Ex Series Switches
Statements of Volatility for Juniper Network Devices A statement of volatility (SoV)—sometimes known as letter of volatility (LoV)—identifies the volatile and non-volatile storage components in Juniper Networks devices, and describes how to remove non-volatile storage components from the device. NOTE: Individual FRUs do not have separate SoV or LoV documents.
Page 321 CTP Series: CTP150 CTP2000 EX Series: EX2200 and EX2200-C EX2300-24P, EX2300-24T, and EX2300-24T-DC EX2300-48P and EX2300-48T EX2300-C EX3300 EX3400-24P, EX3400-24T, EX3400-24T-DC EX3400-48P, EX3400-48T, EX3400-48T-AFI EX4200 EX4300 EX4300-48MP EX4500 EX4550 EX4600 EX8200 XRE200 External Routing Engine LN Series: LN1000–CC MX Series:...
Page 322 MX10003 RE-A-2000 Route Engine RE-S-X6-64G Routing Engine QFX Series: QFX3008-I QFX3100 QFX3500 QFX3600 QFX5100-24Q QFX5100-48S QFX5100-48T QFX5110-32Q QFX5110-48S QFX5200 QFX5200-32C QFX10008 and QFX10016 SRX Series: SRX100 SRX110 SRX210B SRX210H-POE SRX210H-P-MGW SRX220 SRX240H SRX240H-POE SRX300 SRX320 SRX340 and SRX345 SRX550 SRX650...
Page 323 SRX1400 SRX1500 SRX3400 and SRX3600 SRX5400, SRX5600, and SRX5800 SRX-MP-1SERIAL SSG-520M T Series: RE-A-2000 Route Engine...
