CHAPTER 3 - CONFIGURING THE LIBRARY
9. Click Next. If you have enabled EE ports (see
page 83), the Assign EE Ports screen displays.

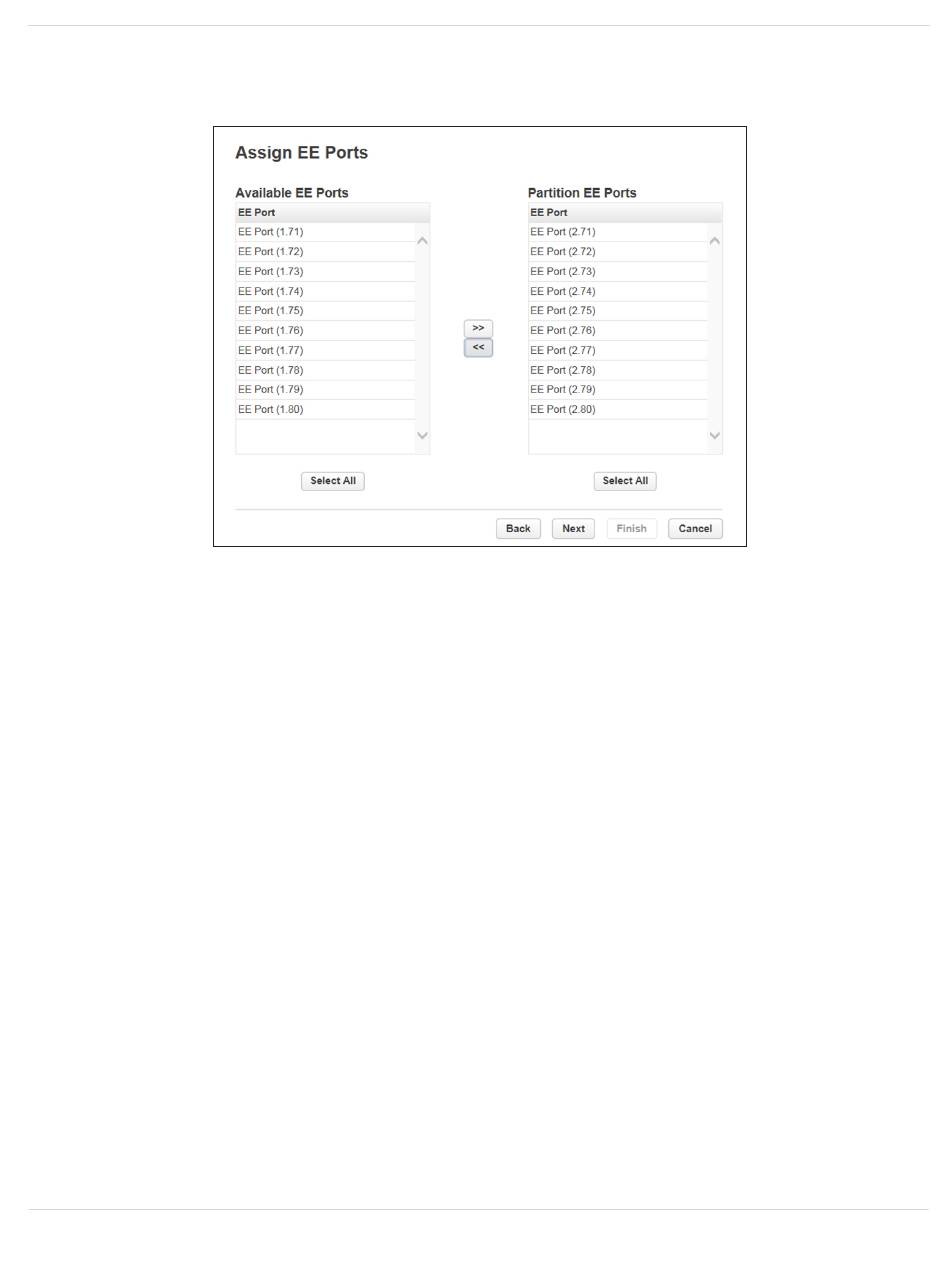

Figure 37 The Assign EE Ports screen.
In the Assign EE Ports screen, use the >> and << buttons to assign EE ports to the new
partition. EE Port locations are shown in the format
module.slot-module.slot where:
• module - The module number. Modules are numbered based on their location in
the physical library. The bottom module is Module 1.
• slot - The slot number as shown in
Note: The EE port can be shared by partitions, but individual slots cannot. Importing or
exporting cartridges in a partition without assigned EE slots requires magazine
access, which takes all partitions in the library offline. EE port access does not take
partitions offline.
JANUARY 2023
Enabling or Disabling EE Ports on
Figure 6 on page 39.
