T1/Dual T1 Installation Procedure

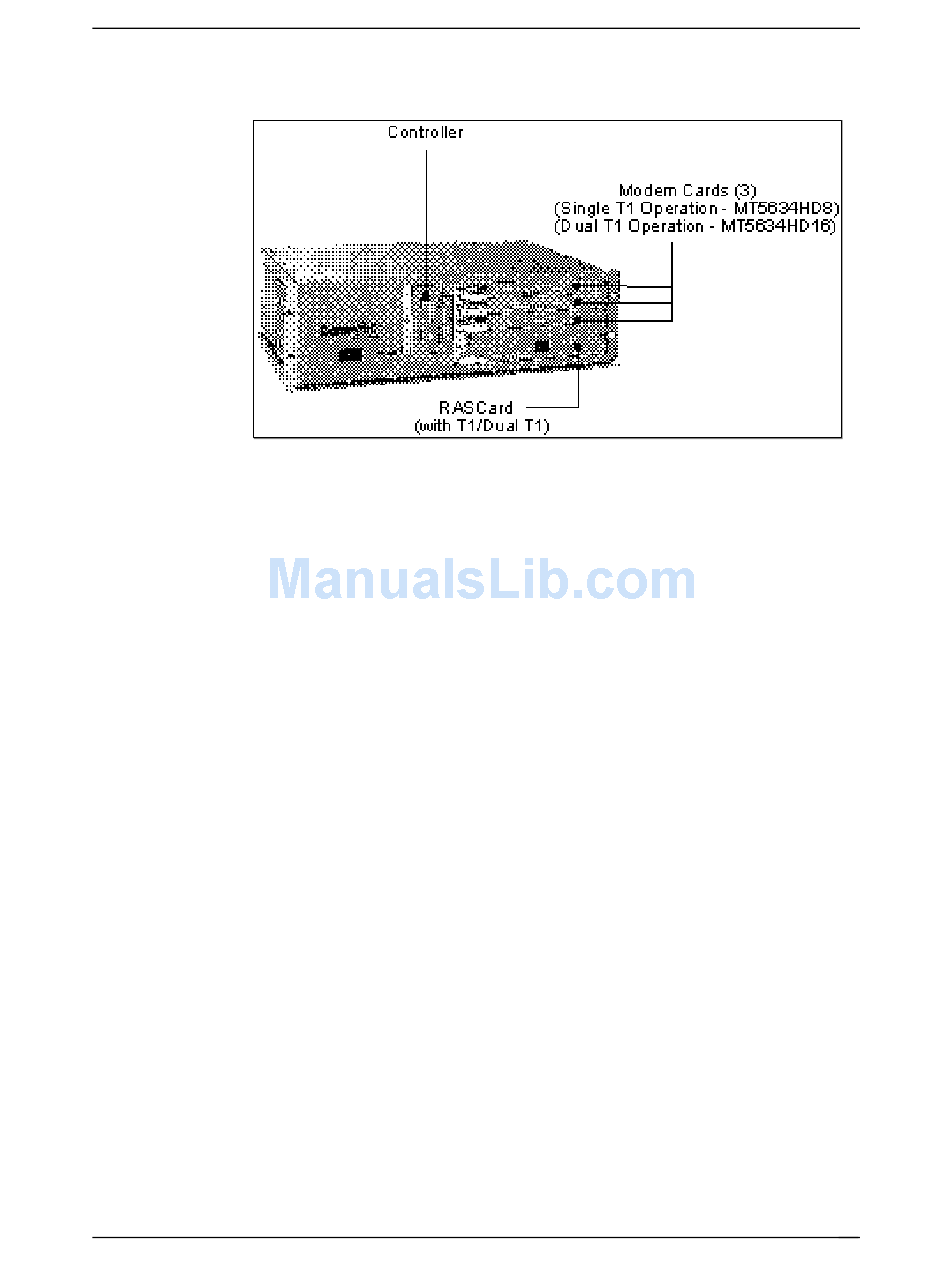

Figure 5. CommPlete CC2400 with One T1/Dual T1 Segment
1. Unpack the CC2400 chassis and place it on a bench or install it in a
2. Plug the power cord into the back of the chassis, but do not connect to
3. Unpack the MR9600 controller assembly, observing standard static
4. Unpack the RAS96 RASCard, observing standard static electricity
5. Insert the back panel for the RASCard into the rear of the chassis and
6. Unpack each modem card, observing standard static electricity
7. Plug the power cord set into AC outlets.
8. Plug one end of an Ethernet cable into the LAN Ethernet 10Base-T
9. Apply power to the CC2400. The power supply indicators should light
standard 19-inch rack. In addition to the chassis, the carton contains a
power cord set and the documentation set.
power yet.
electricity precautions. Insert it carefully into the plastic guides in the
chassis and slide it in until you feel it mate with the bus connectors
inside the chassis. Tighten the retaining screws. Retain the enclosed
serial cable for use in configuring the controller.
precautions. Engage the edges of the card in the metal card guides of slot
1 and slide it in until you feel it mate with the bus connectors inside the
chassis. Tighten the retaining screws.
tighten the retaining screw.
precautions. Engage the edges of the card in the metal card guides of a
device slot and slide it in until you feel it mate with the bus connectors
inside the chassis. Tighten the retaining screws.
connector on the back of the chassis. Plug the other end into the Ethernet
wall jack.
and the controller indicators should flash during the power-on self-test.
