System Installation and Quick Start Guide

T1/Dual T1 Installation Procedure

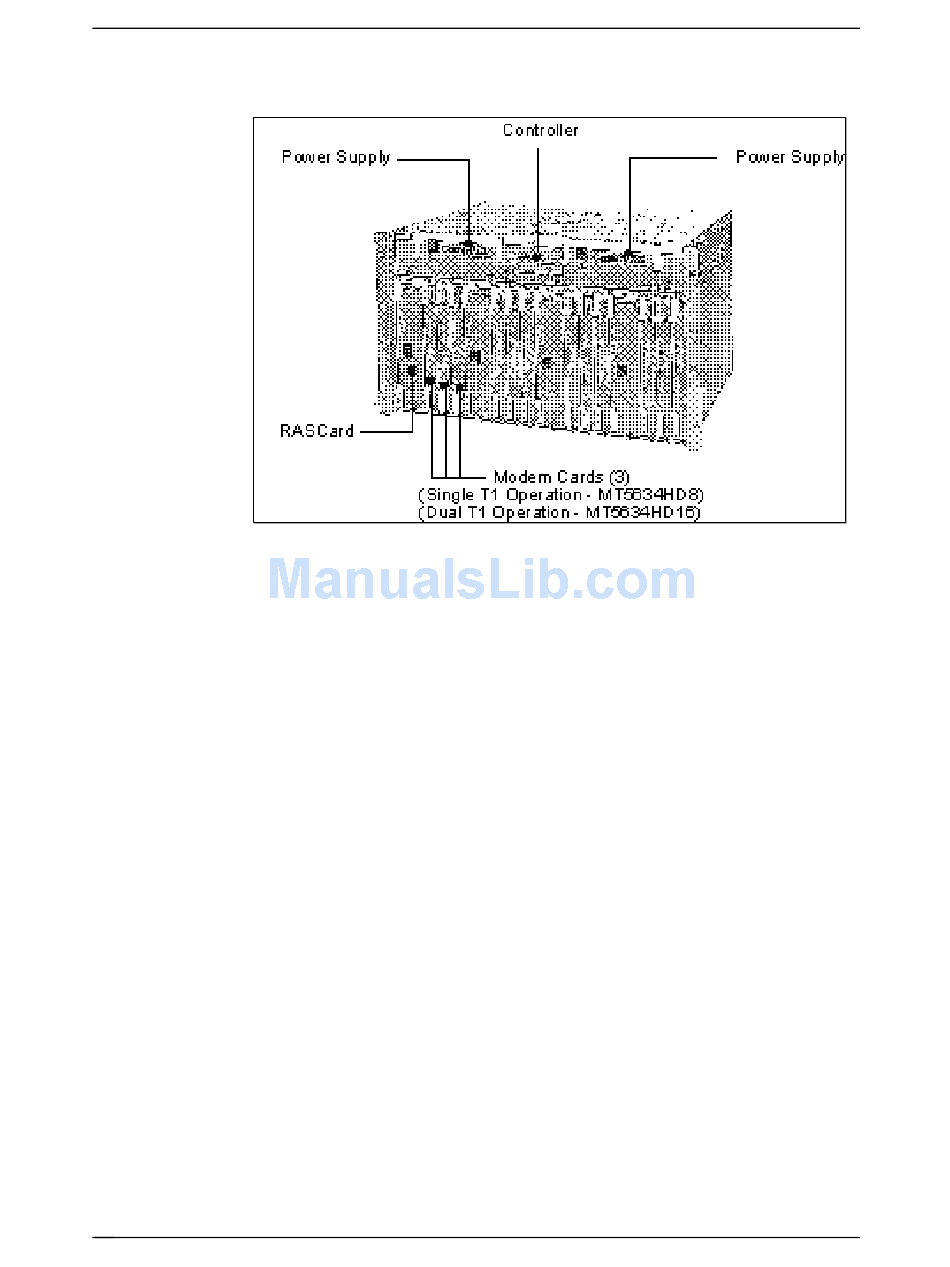

Figure 1. CommPlete CC9600 with Four T1/Dual T1 Segments
1. Unpack the CC9600 chassis and place it on a bench or install it in a
2. Plug the power cords into the back of the chassis, but do not connect
3. Unpack the MR9600 controller assembly, observing standard static
4. Unpack the PS9600 power supplies. Carefully insert them into the
5. Unpack each RAS96 RASCard, observing standard static electricity
6. Insert the back panel for each RASCard into the rear of the chassis and
7. Unpack each modem card, observing standard static electricity
8. Plug the two power cord sets into AC outlets.
12
standard 19-inch rack. In addition to the chassis, the carton contains two
power cord sets and the documentation set.
them to power yet.
electricity precautions. Insert it carefully into the plastic guides in the
chassis and slide it in until you feel it mate with the bus connectors
inside the chassis. Tighten the retaining screws. Retain the enclosed
serial cable for use in configuring the controller.
chassis and slide them in until you feel them mate with the bus
connectors inside the chassis. Tighten the retaining screws.
precautions. Engage the edges of the card in the metal card guides of slot
1, 5, 9, or 13, and slide it in until you feel it mate with the bus connectors
inside the chassis. Tighten the retaining screws.
tighten the retaining screw.
precautions. Engage the edges of the card in the metal card guides of a
device slot and slide it in until you feel it mate with the bus connectors
inside the chassis. Tighten the retaining screws.
