10.3 Functional Description

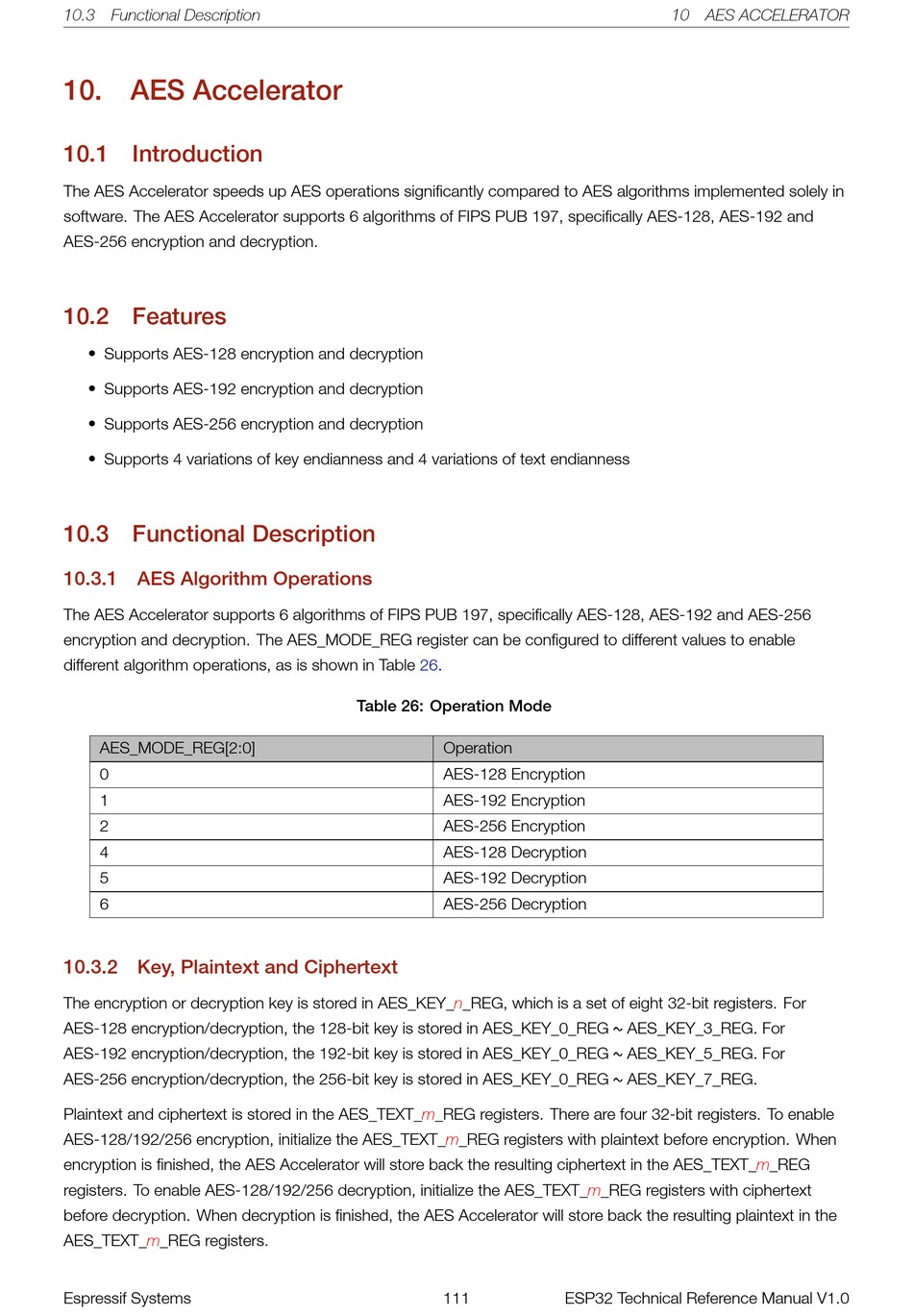

10. AES Accelerator
10.1 Introduction
The AES Accelerator speeds up AES operations significantly compared to AES algorithms implemented solely in
software. The AES Accelerator supports 6 algorithms of FIPS PUB 197, specifically AES-128, AES-192 and
AES-256 encryption and decryption.
10.2 Features
• Supports AES-128 encryption and decryption
• Supports AES-192 encryption and decryption
• Supports AES-256 encryption and decryption
• Supports 4 variations of key endianness and 4 variations of text endianness
10.3 Functional Description
10.3.1 AES Algorithm Operations
The AES Accelerator supports 6 algorithms of FIPS PUB 197, specifically AES-128, AES-192 and AES-256
encryption and decryption. The AES_MODE_REG register can be configured to different values to enable
different algorithm operations, as is shown in Table 26.
AES_MODE_REG[2:0]
0
1
2
4
5
6
10.3.2 Key, Plaintext and Ciphertext
The encryption or decryption key is stored in AES_KEY_n_REG, which is a set of eight 32-bit registers. For
AES-128 encryption/decryption, the 128-bit key is stored in AES_KEY_0_REG
AES-192 encryption/decryption, the 192-bit key is stored in AES_KEY_0_REG
AES-256 encryption/decryption, the 256-bit key is stored in AES_KEY_0_REG
Plaintext and ciphertext is stored in the AES_TEXT_m_REG registers. There are four 32-bit registers. To enable
AES-128/192/256 encryption, initialize the AES_TEXT_m_REG registers with plaintext before encryption. When
encryption is finished, the AES Accelerator will store back the resulting ciphertext in the AES_TEXT_m_REG
registers. To enable AES-128/192/256 decryption, initialize the AES_TEXT_m_REG registers with ciphertext
before decryption. When decryption is finished, the AES Accelerator will store back the resulting plaintext in the
AES_TEXT_m_REG registers.
Espressif Systems
Table 26: Operation Mode
Operation
AES-128 Encryption
AES-192 Encryption
AES-256 Encryption
AES-128 Decryption
AES-192 Decryption
AES-256 Decryption
111
10 AES ACCELERATOR
~ AES_KEY_3_REG. For
~ AES_KEY_5_REG. For
~ AES_KEY_7_REG.
