Figure 4-17. Connect Quick Connect Extremity Of Leak Test Hose(S) To Flexible Connection(S); Figure 4-18. Connect Other Extremity Of Leak Test Hose(S) To Endoscope(S) - Steris Reliance EPS Endoscope Processing System Operator's Manual

7. Push endoscope processing support back into chamber.
8. Close door.
PROCESSOR IS NOW READY TO PROCESS A CYCLE.
Flexible Connection
Leak Test Hose
Quick Connect Extremity
Quick Connect Locking
Sleeve

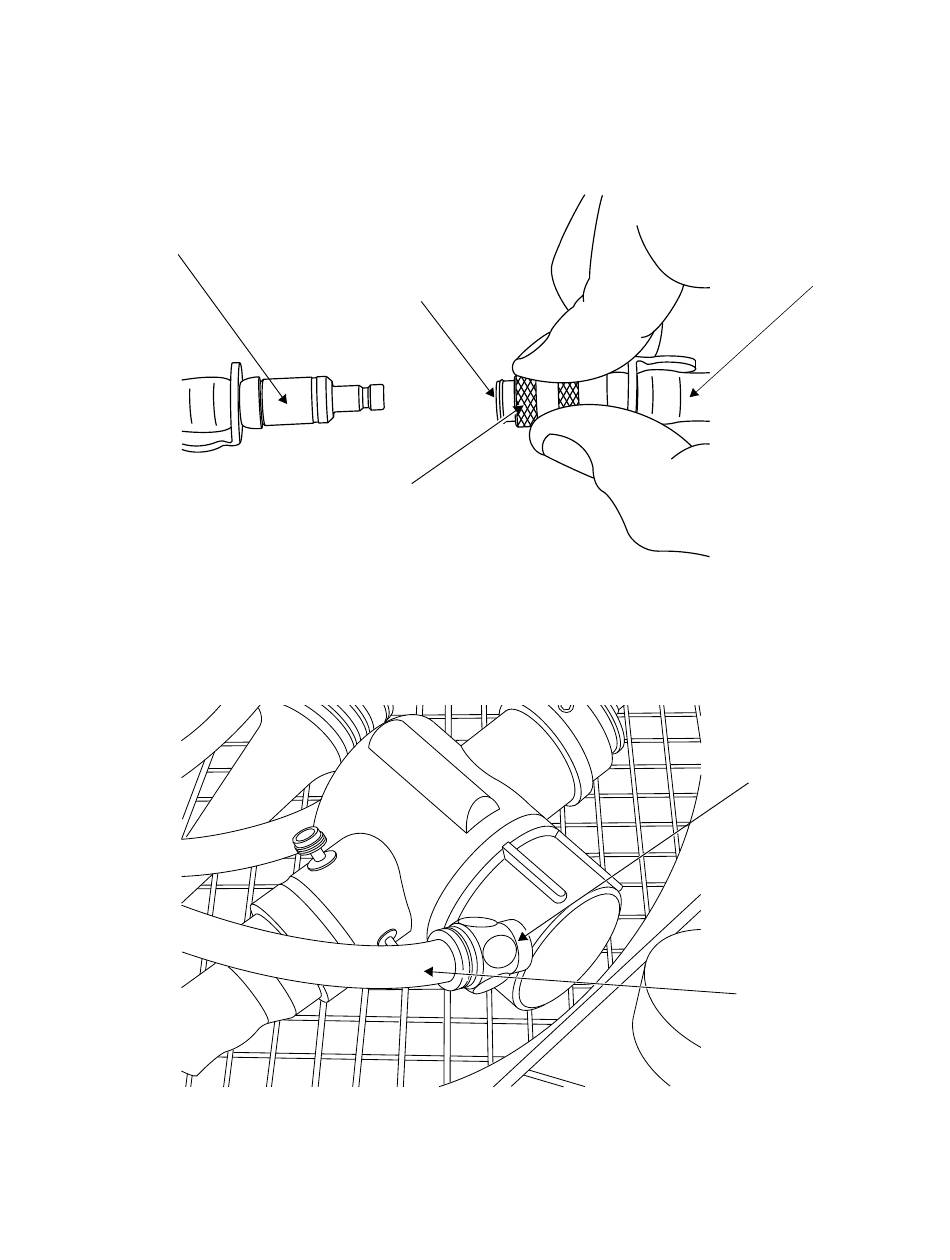

Figure 4-17. Connect Quick Connect Extremity of Leak Test Hose(s)
to Flexible Connection(s)
Endoscope Leak
Test Port
Leak Test Hose

Figure 4-18. Connect Other Extremity of Leak Test Hose(s) to Endoscope(s)
