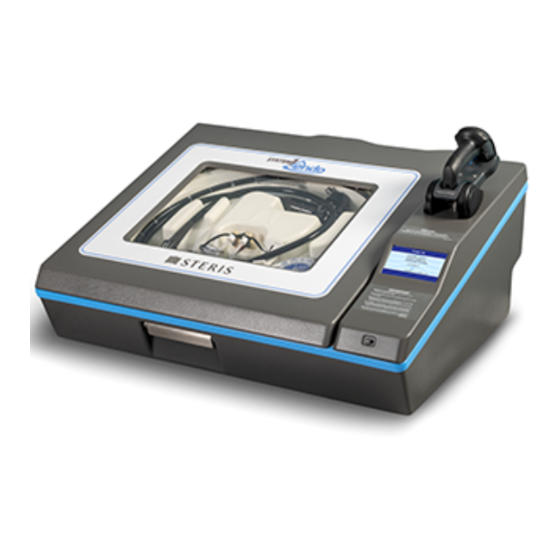

OPERATOR MANUAL
SYSTEM 1
endo LIQUID CHEMICAL
®
STERILANT PROCESSING SYSTEM
MODEL P6900
S40
STERILANT CONCENTRATE
®
CATALOG NO. S4000
T6900 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SYSTEM 1 endo and is the answer not in the manual?

Questions and answers

Related Manuals for Steris SYSTEM 1 endo

Summary of Contents for Steris SYSTEM 1 endo

  • Page 1 OPERATOR MANUAL SYSTEM 1 endo LIQUID CHEMICAL ® STERILANT PROCESSING SYSTEM MODEL P6900 STERILANT CONCENTRATE ® CATALOG NO. S4000 T6900 Rev A...
  • Page 2 WARNING — COPYING PROHIBITED This manual is protected by Federal Copyright Law, which provides for damages of up to USD $20000, as well as criminal fines and imprisonment for unauthorized copying.

  • Page 3: A Word From Steris

    SYSTEM 1 endo Processor is to be used only by trained personnel who are fully familiar with, and strictly comply with, the operating instructions and conditions detailed in the Operator Manual, as well as any applicable Quick Connect processing instructions.
  • Page 4 7,135,142 7,569,182 ©2019, STERIS Corporation. All rights reserved. This publication is protected by copyright. Copying, disclosure to others, or other use of this publication is prohibited without the express written consent of STERIS Corporation. STERIS Corporation reserves the right to make changes in specifications shown herein without notice or obligation.

  • Page 5: Table Of Contents

    Changing the Printer Paper for the Optional Printer ............9-13 Part 5: Changing Pre-filters ......................9-15 Part 6: Supervisor Mode ......................9-17 Part 7: Replacement Parts ......................9-23 Part 8: Routine Maintenance Parts ....................9-24 Introduction Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 6 10. PROCESS MONITORING ..................10-1 Part 1: Overview ..........................10-1 Part 2: Process Assurance Monitoring ..................10-2 11. INSERVICE ......................11-1 T6900 Rev A Operator Manual Introduction SYSTEM 1 endo Liquid Chemical Sterilant Processing System...

  • Page 7: Listing Of Warnings And Cautions

    Do not use the SYSTEM 1 endo Processor until it has been properly installed and its electro/mechanical performance is verified. The SYSTEM 1 endo Processor may be used only in hospital-grade rooms when it is installed according to the applicable specification (VDE 0107, Class 1 Group C NFPA Rating).
  • Page 8 Sterilant Concentrate to avoid personal injury. The SYSTEM 1 endo Processor must be installed by qualified personnel and according to correct national and local electrical safety codes. Failure to do so can result in shock hazard that could endanger the health of the Operator.
  • Page 9 If the carton of S40 Sterilant Concentrate is damaged, do not use the sterilant container inside the damaged carton. Listing of Warnings and Cautions Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 10 T6900 Rev A Operator Manual Listing of Warnings and Cautions SYSTEM 1 endo Liquid Chemical Sterilant Processing System...

  • Page 11: Site Specifications

    115 VAC, 20 A, 60 Hz dedicated circuit Hospital grade GFCI duplex receptacle WARNING: The SYSTEM 1 endo Processor must be installed by qualified personnel and according to correct national and local electrical safety codes. Failure to do so can result in shock hazard that could endanger the health of the Operator.
  • Page 12 MaxLife water filter inside the Processor. STERIS’s warranty will not apply to damage or early life failure of the MaxLife water filter resulting from the use of pre-filters that do not meet STERIS’s specifications. DO NOT USE components that do not meet STERIS’s specifications and have not been validated by STERIS.

  • Page 13: S40 Sterilant Concentrate

    STERILANT COMPARTMENT OF THE PROCESSOR ASPIRATOR PROBE ASSEMBLY (PROBE UNIT AND TUBING) INNER CUP OUTER CUP "POP-OUT" PLUG STERILANT COMPARTMENT CUP PUNCH DRAIN SCREEN S40 Sterilant Concentrate Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...

  • Page 14: Part 1: Overview

    S40 Sterilant Concentrate is a single-use chemistry labeled for use in the Overview SYSTEM 1 endo Processor. The sterilant concentrate container holds both the liquid active ingredient (35% peracetic acid) and the powdered inert ingredients. Review the information provided in this section of the Operator Manual and the package insert for S40 Sterilant Concentrate prior to use.

  • Page 15: Part 2: Safety Information For Peracetic Acid

    Note: It is classified as a Corrosive material. accumulated concentration The SDS for S40 Sterilant Concentrate is available upon request from STERIS of peracetic acid vapor, use or at www.steris.com.

  • Page 16: Part 3: Disposal

    Dispose of the empty sterilant container in the trash. sealed container of S40 Sterilant Concentrate. If the SYSTEM 1 endo Processor is unavailable, isolate the partially filled, leaking, damaged, or expired sterilant container until the Processor is available or perform a manual disposal as described below.
  • Page 17 Seal boxes with sterilant containers into plastic bag(s) and take to a water source. d. When water is available, follow the procedure for manual disposal. S40 Sterilant Concentrate Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 18 T6900 Rev A Operator Manual S40 Sterilant Concentrate SYSTEM 1 endo Liquid Chemical Sterilant Processing System...

  • Page 19: Component Identification

    BARCODE READER AND BRACKET RELEASE LATCH/HANDLE HMI CONTROL DISPLAY (TOUCHSCREEN) USB PORT PRE-FILTER ASSEMBLY (A1563) REGULATOR HOUSING BODY PRE-FILTER B PRE-FILTER A (COVER NOT SHOWN) Component Identification Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 20 INTERNAL PROCESSOR COMPONENTS SEAL STERILE AIR FILTER MAXLIFE WATER FILTER/HOUSING ETHERNET PORT CHAMBER (STERIS-TRAINED TECHNICIAN USE ONLY) CONNECTOR POSTS MICROCOMPUTER HOUSING INFLATABLE SEAL HINGED PANEL (SWING ARM) T6900 Rev A Operator Manual Component Identification SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 21 SYSTEM 1 endo PROCESSOR (BACK VIEW) DRAIN CIRCUIT BREAKER WATER INLET POWER CORD PLUG* (20 A HOSPITAL GRADE SHOWN) Component Identification Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...

  • Page 22: Part 2: System 1 Endo Processor

    WARNING: The SYSTEM 1 endo Processor is not Optional Printer intended for operation An optional stand-alone thermal printer is available from STERIS and must be in explosion-endangered installed by STERIS or STERIS-trained service personnel. The printer records areas. all cycle data on 2-1/4” (57mm) 40-character wide single-ply paper. Refer to Section 9 for instructions on changing the printer paper.
  • Page 23 Change Case Toggle – On-Screen Keyboard Space Bar – On-Screen Keyboard OK – Press to Enter or Confirm Data Close Screen Forward to Next Screen Component Identification Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 24 Back to Previous Screen General Settings Functional Settings Operator or Physician Management Cycle Data Management Printing Settings Date and Time Units Language Password Software Version Save Settings T6900 Rev A Operator Manual Component Identification SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 25 Edit Name or Code Delete Cycle Tapes/Reports Transfer Cycle Reports/Data View Cycle Tapes Alarm/Abort Screens (Red) Mute Alarm Signal Acknowledge Alarm Alarm Details Close Screen Component Identification Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 26 Options are enabled, the name or code will be documented on the electronic cycle tape/printout. The method for entering the information is described in Section 7. T6900 Rev A Operator Manual Component Identification SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 27 • The MaxLife water filter needs to be replaced The cycle screens display a countdown timer and a progress bar indicating the cycle progression. Cycle Details can be accessed from this screen. Component Identification Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 28 The Supervisor can configure and manage the following features: • General Settings • Functional Settings • Operator Management • Physician Management • Manage Cycle Data • Printing Settings 4-10 T6900 Rev A Operator Manual Component Identification SYSTEM 1 endo Liquid Chemical Sterilant Processing System...

  • Page 29: General Processing Instructions

    GENERAL PROCESSING INSTRUCTIONS Part 1: Processor with Open- Style Processing Tray C1160E UNIVERSAL FLEXIBLE PROCESSING TRAY PROCESSOR (EXAMPLE OF AN OPEN-STYLE PROCESSING TRAY) General Processing Instructions Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 30 Part 2: Processor with Processing Tray and Container C1200E GENERAL PROCESSING CONTAINER C1200E GENERAL PROCESSING TRAY PROCESSOR (EXAMPLE OF A PROCESSING TRAY WITH REMOVABLE CONTAINER) T6900 Rev A Operator Manual General Processing Instructions SYSTEM 1 endo Liquid Chemical Sterilant Processing System...

  • Page 31: Part 3: Preparation Of Devices For Liquid Chemical Sterilization

    S40 Sterilant Concentrate. WARNING: The SYSTEM 1 endo Processor is not protected against water spillage or spray. Take precautions in the use of liquid during cleaning or insertion of devices. WARNING: Failure to properly position devices so that all surfaces will be exposed to the liquid sterilant or overloading the processing container may result in an ineffective liquid chemical sterilization and/or damage the devices.
  • Page 32 Align the fluid port located on the bottom of the processing container (A) over the fluid port of the processing tray (B). The processing container should be resting on the rubber fluid port gasket. T6900 Rev A Operator Manual General Processing Instructions SYSTEM 1 endo Liquid Chemical Sterilant Processing System...

  • Page 33: Specific Device Processing Instructions

    Information Contact your STERIS Account Manager, Customer Service Representative, or go to www.steris.com to identify what Quick Connects may be required to liquid chemically sterilize your specific devices in the SYSTEM 1 endo Processor. Specific Device Processing Instructions...
  • Page 34 T6900 Rev A Operator Manual Specific Device Processing Instructions SYSTEM 1 endo Liquid Chemical Sterilant Processing System...

  • Page 35: Operation Of The Processor

    NOTE: Under normal use conditions, users are not exposed to the liquid contents of S40 Sterilant Concentrate. In the unlikely event that the user may be exposed while inserting the sterilant container into the SYSTEM 1 endo Processor, it is suggested that, as a precautionary measure, Personal Protective Equipment (PPE) be worn.
  • Page 36 NEVER slam the container into the sterilant compartment. Damage to the container may occur. T6900 Rev A Operator Manual Operation of the Processor SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 37 ASPIRATOR PROBE ASSEMBLY IN THE CORRECT POSITION The illustration below shows the correct position of the aspirator probe assembly. ENSURE TUBING IS NOT KINKED. Operation of the Processor Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 38 • To initiate an LCS Cycle from the READY screen, touch the READY touchpad. On the Select Cycle screen, touch the LCS Cycle touchpad. T6900 Rev A Operator Manual Operation of the Processor SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 39 See LCS Cycle - Options If Options are disabled Example of a Cycle Details Screen Abort Cycle Touchpad Status Screen Touchpad See Aborting Cycles Operation of the Processor Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 40 • The Operator must open the lid before the Ready screen will appear prior to the next LCS Cycle. T6900 Rev A Operator Manual Operation of the Processor SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 41 LCS CYCLE - PROCESSING COMPLETE Press to Silence the Signal If enabled, an Audible If Operator ID Option is enabled Signal sounds Open lid Operation of the Processor Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 42 NOTE: Under normal use conditions, users are not exposed to the liquid contents of S40 Sterilant Concentrate. In the unlikely event that the user may be exposed while removing the sterilant container from the SYSTEM 1 endo Processor, it is suggested that, as a precautionary measure, Personal Protective Equipment (PPE) be worn.
  • Page 43 Commonly recommended practices may include, for example, drying with a soft sterile cloth, flushing with instrument air, and/or hanging in a ventilated cabinet. The SYSTEM 1 endo Processor is now ready to begin another cycle. Operation of the Processor Operator Manual...

  • Page 44: Part 2: Diagnostic Cycle

    Cycle is run. Once a Diagnostic Cycle fails, an LCS Cycle cannot be performed until a Diagnostic Cycle passes (see Section 7, Part 4). STERIS recommends running a Diagnostic Cycle once every 24 hours of use. Length of cycle: approximately 19 minutes.
  • Page 45 If enabled, an Audible Signal sounds If Options are enabled Open lid Example of a Cycle Details Screen Abort Cycle Touchpad See Aborting Cycles 7-11 Operation of the Processor Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...

  • Page 46: Part 3: Aborting Cycles

    Press to Silence Open lid the Alarm LCS Cycle Press to Clear the Abort PROCESSOR-INITIATED ABORT Diagnostic Cycle Press to Clear the Abort 7-12 T6900 Rev A Operator Manual Operation of the Processor SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 47 X touchpad. Acknowledge (ACK) the Alarm. Refer to “TROUBLESHOOTING/ALARM TABLE” at the end of this section. Find the Alarm and follow the instructions. 7-13 Operation of the Processor Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...

  • Page 48: Part 4: Troubleshooting

    • A detailed description of the problem. serviceable components • The serial number of the Processor. of the SYSTEM 1 endo Processor. 7-14 T6900 Rev A Operator Manual Operation of the Processor SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 49 CALL CUSTOMER SERVICE 22. CHAMBER Run Diagnostic Cycle. TEMPERATURE If “HEAT RATE TOO SLOW” message UNDER 45.5° C appears: CALL CUSTOMER SERVICE 7-15 Operation of the Processor Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 50 2. Check processing tray: Is the processing container properly in place? Is the lid on? 3. Repeat Diagnostic Cycle. If same message appears: CALL CUSTOMER SERVICE 7-16 T6900 Rev A Operator Manual Operation of the Processor SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 51 Dry chamber –replace processing tray. –check water inlet. 2. Repeat Diagnostic Cycle If same message appears: CALL CUSTOMER SERVICE 7-17 Operation of the Processor Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 52 If over 60°C call your engineering department to have it adjusted. 4. Run Diagnostic Cycle 5. Repeat LCS Cycle. If same message appears: CALL CUSTOMER SERVICE 7-18 T6900 Rev A Operator Manual Operation of the Processor SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 53 8. Change pre-filter(s) (see Section 9 for CALL CUSTOMER SERVICE instructions). 9. Repeat Diagnostic Cycle. If same message appears: CALL CUSTOMER SERVICE 7-19 Operation of the Processor Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 54 If there is fluid in the drip pan then dry it out – replace tray. 2. Repeat cycle. If same message appears: CALL CUSTOMER SERVICE 7-20 T6900 Rev A Operator Manual Operation of the Processor SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 55 Is it under water in standpipe? 3. Check for water: Is it leaking out around lid? 4. Repeat Diagnostic Cycle. If same message appears: CALL CUSTOMER SERVICE 7-21 Operation of the Processor Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 56 57. DRAIN CHECK FAULT 1. Check drain hose: Is it kinked? 2. Repeat Diagnostic Cycle. If same message appears: CALL CUSTOMER SERVICE 7-22 T6900 Rev A Operator Manual Operation of the Processor SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 57 This alarm only occurs after a software This alarm only occurs after a software (UNIT MUST BE update. update. PROGRAMMED) CALL CUSTOMER SERVICE. CALL CUSTOMER SERVICE. 7-23 Operation of the Processor Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 58 USB port. and connected on USB port. If situation persists: If situation persists: CALL CUSTOMER SERVICE. CALL CUSTOMER SERVICE. 7-24 T6900 Rev A Operator Manual Operation of the Processor SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 59 6. Unexpected barcode symbology. Barcode reader can read multiple symbologies but is designed to read mainly Code 39 symbology. If situation persists: CALL CUSTOMER SERVICE. BARCODES 7-25 Operation of the Processor Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 60 7-26 T6900 Rev A Operator Manual Operation of the Processor SYSTEM 1 endo Liquid Chemical Sterilant Processing System...

  • Page 61: Quality Assurance

    The Processor can hold up to 300 cycle tapes. Make sure to back up data regularly to avoid overwriting files. Quality Assurance Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 62 CHAMBER OPENED: Time the chamber seal is deflated. NOTE: Some parameters, used mainly by Service personnel, will not be printed on a typical paper printout. T6900 Rev A Operator Manual Quality Assurance SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 63 ALARM: Alarm number, date and time appear for Processor-initiated abort. CYCLE ABORTED: Date and time cycle aborted. Quality Assurance Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 64 OPERATOR ID: Operator’s name or code. CYCLE ABORTED ALARM: Alarm number, date and time appear for Processor-initiated abort. 9/21/2018 14:31:06 CYCLE ABORTED: Date and time cycle aborted. T6900 Rev A Operator Manual Quality Assurance SYSTEM 1 endo Liquid Chemical Sterilant Processing System...

  • Page 65: Maintenance

    STEP 3 CLEAN PROCESSING TRAY Processing Tray/Container: Wipe the inner surface, seal, processing tray/container, and accessory rack with a soft cloth dampened with 70% isopropyl alcohol. Maintenance Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 66 • no cracks or chips or damaged aspirator may result in ineffective liquid • hose connections secure chemical sterilization. REPLACE ASPIRATOR ASSEMBLY IF ANY DAMAGE IS NOTED. T6900 Rev A Operator Manual Maintenance SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 67 Replace screen after cleaning. DROGUE STEP 7 REMOVE PROCESSING TRAY FROM CHAMBER STEP 8 CLEAN CHAMBER Clean the chamber using a soft cloth dampened with 70% isopropyl alcohol. Maintenance Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 68 CHECK PRINTER PAPER FOR OPTIONAL PRINTER - DO NOT LET PAPER RUN OUT If the optional printer is installed, check the printer paper. Replace with a new roll if needed. (See Section 9, Part 4). T6900 Rev A Operator Manual Maintenance SYSTEM 1 endo Liquid Chemical Sterilant Processing System...

  • Page 69: Part 2: Changing 0.2 Micron Maxlife Water Filter

    When this screen message appears, an LCS Cycle or a Diagnostic Cycle cannot been validated by STERIS. be initiated until the MaxLife water filter is changed. Maintenance Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 70 TOP RIDGE CONNECTION COLLAR WITH O-RING STEP 2 LOCATE THE HOUSING FOR THE MAXLIFE WATER FILTER Open the hinged panel (swing arm). Locate the filter housing. T6900 Rev A Operator Manual Maintenance SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 71 Processor. STEP 4 REMOVE FILTER HOUSING CAP Unscrew the filter housing cap by turning it counterclockwise. Maintenance Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 72 T h e SYSTEM 1 endo Processor is not protected against water spillage or spray. Take precautions in the use of liquid during cleaning or insertion of devices. T6900 Rev A Operator Manual Maintenance SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 73 (the top edge of the filter will be flush with the top edge of the filter housing). Remove the plastic bag. Maintenance Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 74 IF THE FILTER CHANGE WAS THE RESULT OF A FAILED DIAGNOSTIC CYCLE, INITIATE A DIAGNOSTIC CYCLE. A SUCCESSFUL DIAGNOSTIC CYCLE MUST BE COMPLETED BEFORE AN LCS CYCLE CAN BE INITIATED. 9-10 T6900 Rev A Operator Manual Maintenance SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 75 OPEN THE HINGED PANEL (SWING ARM) AND LOCATE THE STERILE AIR FILTER STEP 2 REMOVE THE AIR FILTER Turn the air filter counterclockwise and lift up to remove. Discard the used air filter. 9-11 Maintenance Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 76 STEP 3 REPLACE WITH NEW AIR FILTER With the flow arrow pointing down, turn the filter clockwise. STEP 4 CLOSE HINGED PANEL (SWING ARM) 9-12 T6900 Rev A Operator Manual Maintenance SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 77 Remove the used paper from the spindle. Keep the spindle halves apart. OPEN OUTER PRINTER DOOR REMOVE TAKE UP SPOOL PULL APART TAKE UP SPOOL REMOVE USED PAPER FROM SPINDLE 9-13 Maintenance Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 78 Remove the printed paper roll and store per facility policies and procedures. PLACE END OF PAPER CLOSE OUTER PRINTER DOOR REINSTALL TAKE-UP SPOOL BETWEEN SPINDLES INTO BRACKET "CLICK" SPINDLE INSERT SPINDLE ENDS INTO SIDES OF SPOOL 9-14 T6900 Rev A Operator Manual Maintenance SYSTEM 1 endo Liquid Chemical Sterilant Processing System...

  • Page 79: Part 5: Changing Pre-Filters

    BOWL BOWL STERIS’s specifications. DO NOT USE components that do not meet STERIS’s specifications and have not been validated by STERIS. 9-15 Maintenance Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 80 Restore the main water supply to the system. STEP 10 EXHAUST AIR Exhaust air from both pre-filters. Press the red button located on the top of the pre-filter housing to exhaust air. 9-16 T6900 Rev A Operator Manual Maintenance SYSTEM 1 endo Liquid Chemical Sterilant Processing System...

  • Page 81: Part 6: Supervisor Mode

    Some preset values can be changed in Supervisor Mode to customize the SYSTEM 1 endo Processor to the operating environment in which it has been placed. NOTE: If a factory reset or software change should occur, Supervisor-set values would be lost.
  • Page 82 Enter a new password, touch OK, then touch the Save touchpad to save the password. Default is 0000. • SOFTWARE VERSION - This screen displays the current version of the software. 9-18 T6900 Rev A Operator Manual Maintenance SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 83 • AIR PURGE TIME - This option allows the Supervisor to select a duration of time for the air purge at the end of the cycle. Default is 1 minute (01:00). Pop-up input keypad - shows range 9-19 Maintenance Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 84 Up to 100 names, 15 characters in length, can be stored for each feature. ON-SCREEN KEYBOARD SHIFT KEYPAD* *NOTE: the character display on the keyboard does NOT change to lowercase letters. 9-20 T6900 Rev A Operator Manual Maintenance SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 85 • Touch the Transfer touchpad to bring up the Transfer Cycle Reports screen. Insert a USB device/key and touch Copy to transfer and save Cycle Reports. 9-21 Maintenance Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 86 Any Supervisor settings that are being changed while the printing is occurring will not be recorded. Supervisor Settings Printout 9-22 T6900 Rev A Operator Manual Maintenance SYSTEM 1 endo Liquid Chemical Sterilant Processing System...

  • Page 87: Part 7: Replacement Parts

    1. Identify the description and part number as listed. 2. Identify the catalog and serial number of your Processor on your order. 3. Send your order directly to the STERIS Sales and Service Center servicing your area. Contact your STERIS Sales Representative for recommendations on cleaning products or parts that are not listed below.
  • Page 88 Use the Preventive Maintenance Schedule located in the only by STERIS or STERIS- maintenance manual as a guide for further maintenance of the SYSTEM 1 endo trained service personnel. Processor. Depending on usage, the Processor may require more frequent Maintenance performed by maintenance than indicated.

  • Page 89: Process Monitoring

    The VERIFY Chemical Indicator for S40 Sterilant is a peracetic acid concentration indicator available for routine monitoring of the LCS Cycle of the SYSTEM 1 endo Liquid Chemical Sterilant Processing System. The integrity of the Processor is validated via an Operator-initiated Diagnostic Cycle.

  • Page 90: Part 2: Process Assurance Monitoring

    Part 2: The SYSTEM 1 endo Processor provides the Operator with numerous methods Process Assurance of quality assurance monitoring. Physical monitoring of the liquid chemical sterilization process is controlled by the Operator, while real-time cycle monitoring Monitoring is performed by the microcomputer-controlled Processor.

  • Page 91: Inservice

    INSERVICE Contact your STERIS Representative or STERIS Customer Service for questions concerning InService materials for the SYSTEM 1 endo Liquid Chemical Sterilant Processing System. 11-1 InService Operator Manual T6900 Rev A SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 92 11-2 T6900 Rev A Operator Manual InService SYSTEM 1 endo Liquid Chemical Sterilant Processing System...
  • Page 94 We have more than 5,000 customers who are benefiting from STERIS maintenance agreements. Why not join them? Obtain complete details by calling 1-800-333-8828, or...
