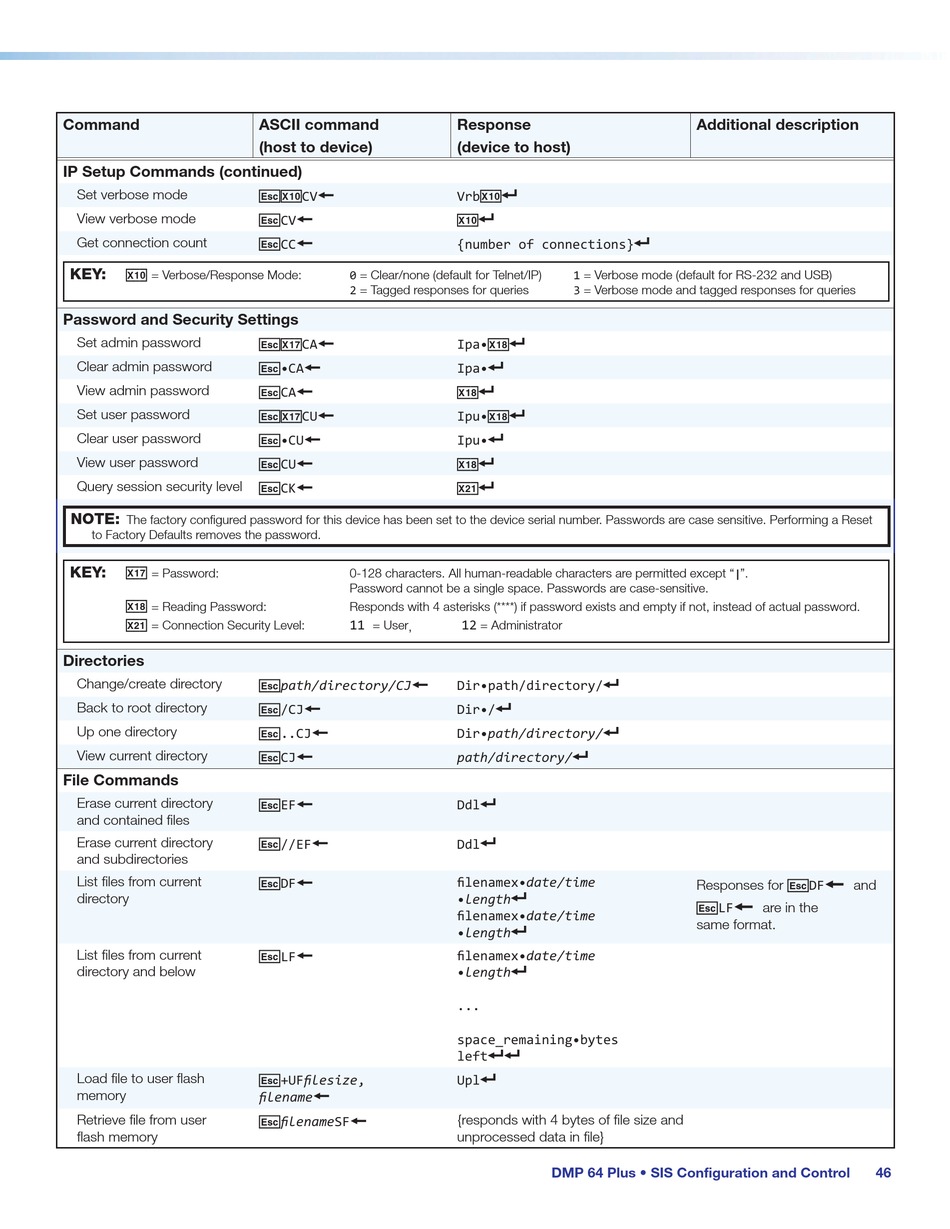

Extron electronics DMP 64 Plus User Manual page 53

Command
IP Setup Commands (continued)
Set verbose mode
View verbose mode
Get connection count
KEY: X1)
= Verbose/Response Mode:
Password and Security Settings
Set admin password
Clear admin password
View admin password
Set user password
Clear user password
View user password
Query session security level
NOTE:
The factory configured password for this device has been set to the device serial number. Passwords are case sensitive. Performing a Reset
to Factory Defaults removes the password.
X1&
KEY:
= Password:
X1*
= Reading Password:
X2!
= Connection Security Level:
Directories
Change/create directory
Back to root directory
Up one directory
View current directory
File Commands
Erase current directory
and contained files
Erase current directory
and subdirectories
List files from current
directory
List files from current
directory and below
Load file to user flash
memory
Retrieve file from user
flash memory
ASCII command
(host to device)
E X1) }
CV
E }
CV
E }
CC
0 = Clear/none (default for Telnet/IP)
2 = Tagged responses for queries
E X1& }
CA
E }
•CA
E }
CA
E X1& }
CU
E }
•CU
E }
CU
E }
CK
0-128 characters. All human-readable characters are permitted except "|".
Password cannot be a single space. Passwords are case-sensitive.
Responds with 4 asterisks (****) if password exists and empty if not, instead of actual password.
11
= User ,
E }
path/directory/CJ
E }
/CJ
E }
..CJ
E }
CJ
E }
EF
E }
//EF
E }
DF
E }
LF
E
+UFfilesize,
}
filename
E }
filenameSF
Response
(device to host)
X1) ]
Vrb
X1) ]
]
{number of connections}
1 = Verbose mode (default for RS-232 and USB)
3 = Verbose mode and tagged responses for queries
X1* ]
Ipa•
]
Ipa•
X1* ]
X1* ]
Ipu•
]
Ipu•
X1* ]
X2! ]
12
= Administrator
]
Dir•path/directory/
]
Dir•/
]
Dir•path/directory/
]
path/directory/
]
Ddl
]
Ddl
filenamex•date/time
]
•length
filenamex•date/time
]
•length
filenamex•date/time
]
•length
...
space_remaining•bytes
]]
left
]
Upl
{responds with 4 bytes of file size and
unprocessed data in file}
DMP 64 Plus • SIS Configuration and Control
Additional description
}
E
DF
Responses for and
}
E
LF are in the
same format.
46
