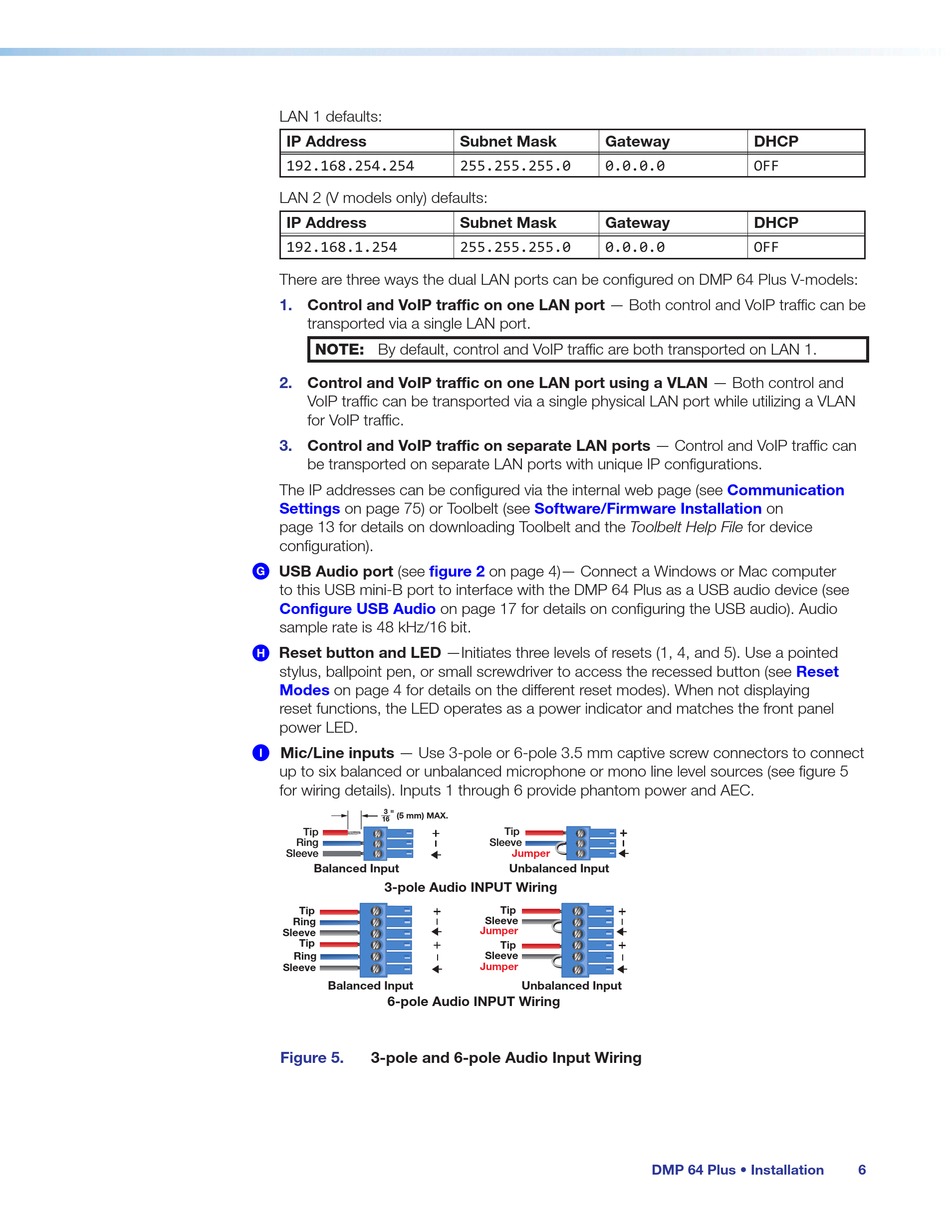

LAN 1 defaults:
IP Address
192.168.254.254
LAN 2 (V models only) defaults:
IP Address
192.168.1.254
There are three ways the dual LAN ports can be configured on DMP 64 Plus V-models:
1. Control and VoIP traffic on one LAN port — Both control and VoIP traffic can be
transported via a single LAN port.
NOTE: By default, control and VoIP traffic are both transported on LAN 1.
2. Control and VoIP traffic on one LAN port using a VLAN — Both control and
VoIP traffic can be transported via a single physical LAN port while utilizing a VLAN
for VoIP traffic.
3. Control and VoIP traffic on separate LAN ports — Control and VoIP traffic can
be transported on separate LAN ports with unique IP configurations.
The IP addresses can be configured via the internal web page (see
Settings on page 75) or Toolbelt (see
page 13 for details on downloading Toolbelt and the Toolbelt Help File for device
configuration).
USB Audio port (see figure 2
G
to this USB mini-B port to interface with the DMP 64 Plus as a USB audio device (see
Configure USB Audio
sample rate is 48 kHz/16 bit.
Reset button and LED —Initiates three levels of resets (1, 4, and 5). Use a pointed
H
stylus, ballpoint pen, or small screwdriver to access the recessed button (see
Modes on page 4 for details on the different reset modes). When not displaying
reset functions, the LED operates as a power indicator and matches the front panel
power LED.
Mic/Line inputs — Use 3-pole or 6-pole 3.5 mm captive screw connectors to connect
I
up to six balanced or unbalanced microphone or mono line level sources (see figure 5
for wiring details). Inputs 1 through 6 provide phantom power and AEC.
3 " (5 mm) MAX.
16
Tip
Ring
Sleeve
Balanced Input
3-pole Audio INPUT Wiring
Tip
Ring
Sleeve
Tip
Ring
Sleeve
Balanced Input
6-pole Audio INPUT Wiring
Figure 5. 3-pole and 6-pole Audio Input Wiring
Subnet Mask Gateway
255.255.255.0 0.0.0.0
Subnet Mask Gateway
255.255.255.0 0.0.0.0
Software/Firmware Installation
on page 4)— Connect a Windows or Mac computer
on page 17 for details on configuring the USB audio). Audio
Tip
Sleeve
Jumper
Unbalanced Input
Tip
Sleeve
Jumper
Tip
Sleeve
Jumper
Unbalanced Input
DHCP
OFF
DHCP
OFF
Communication
on
Reset
DMP 64 Plus • Installation 6
