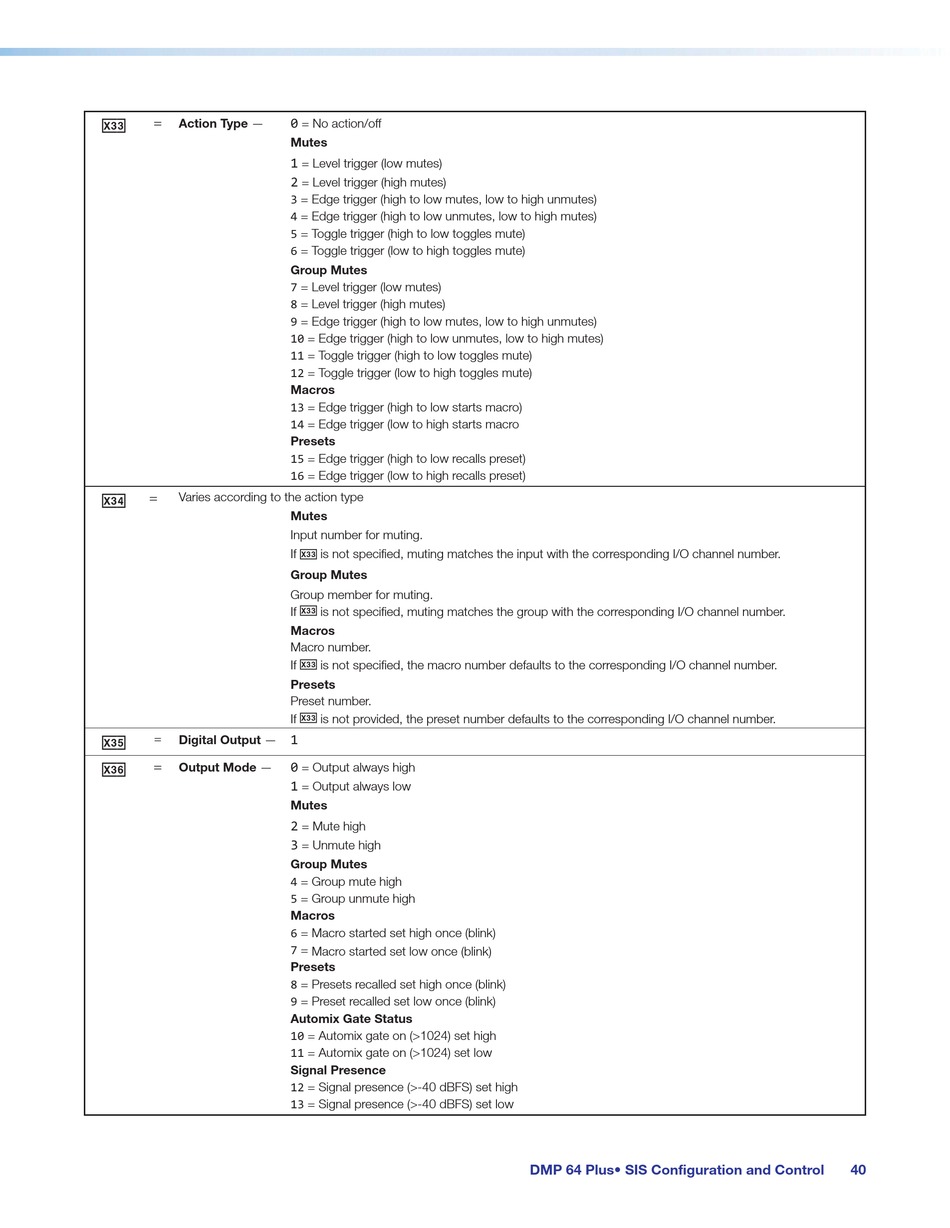

Extron electronics DMP 64 Plus User Manual page 47

X3# =
Action Type —
X3$ = Varies according to the action type
X3% =
Digital Output —
X3^ =
Output Mode —
0
= No action/off
Mutes
1
= Level trigger (low mutes)
2
= Level trigger (high mutes)
3 = Edge trigger (high to low mutes, low to high unmutes)
4 = Edge trigger (high to low unmutes, low to high mutes)
5 = Toggle trigger (high to low toggles mute)
6 = Toggle trigger (low to high toggles mute)
Group Mutes
7 = Level trigger (low mutes)
8 = Level trigger (high mutes)
9 = Edge trigger (high to low mutes, low to high unmutes)
10 = Edge trigger (high to low unmutes, low to high mutes)
11 = Toggle trigger (high to low toggles mute)
12 = Toggle trigger (low to high toggles mute)
Macros
13 = Edge trigger (high to low starts macro)
14 = Edge trigger (low to high starts macro
Presets
15 = Edge trigger (high to low recalls preset)
16 = Edge trigger (low to high recalls preset)
Mutes
Input number for muting.
If X3# is not specified, muting matches the input with the corresponding I/O channel number.
Group Mutes
Group member for muting.
If X3# is not specified, muting matches the group with the corresponding I/O channel number.
Macros
Macro number.
If X3# is not specified, the macro number defaults to the corresponding I/O channel number.
Presets
Preset number.
If X3# is not provided, the preset number defaults to the corresponding I/O channel number.
1
0
= Output always high
1
= Output always low
Mutes
2
= Mute high
3
= Unmute high
Group Mutes
4 = Group mute high
5 = Group unmute high
Macros
6 = Macro started set high once (blink)
7 = Macro started set low once (blink)
Presets
8 = Presets recalled set high once (blink)
9 = Preset recalled set low once (blink)
Automix Gate Status
10 = Automix gate on (>1024) set high
11 = Automix gate on (>1024) set low
Signal Presence
12 = Signal presence (>-40 dBFS) set high
13 = Signal presence (>-40 dBFS) set low
DMP 64 Plus• SIS Configuration and Control 40
