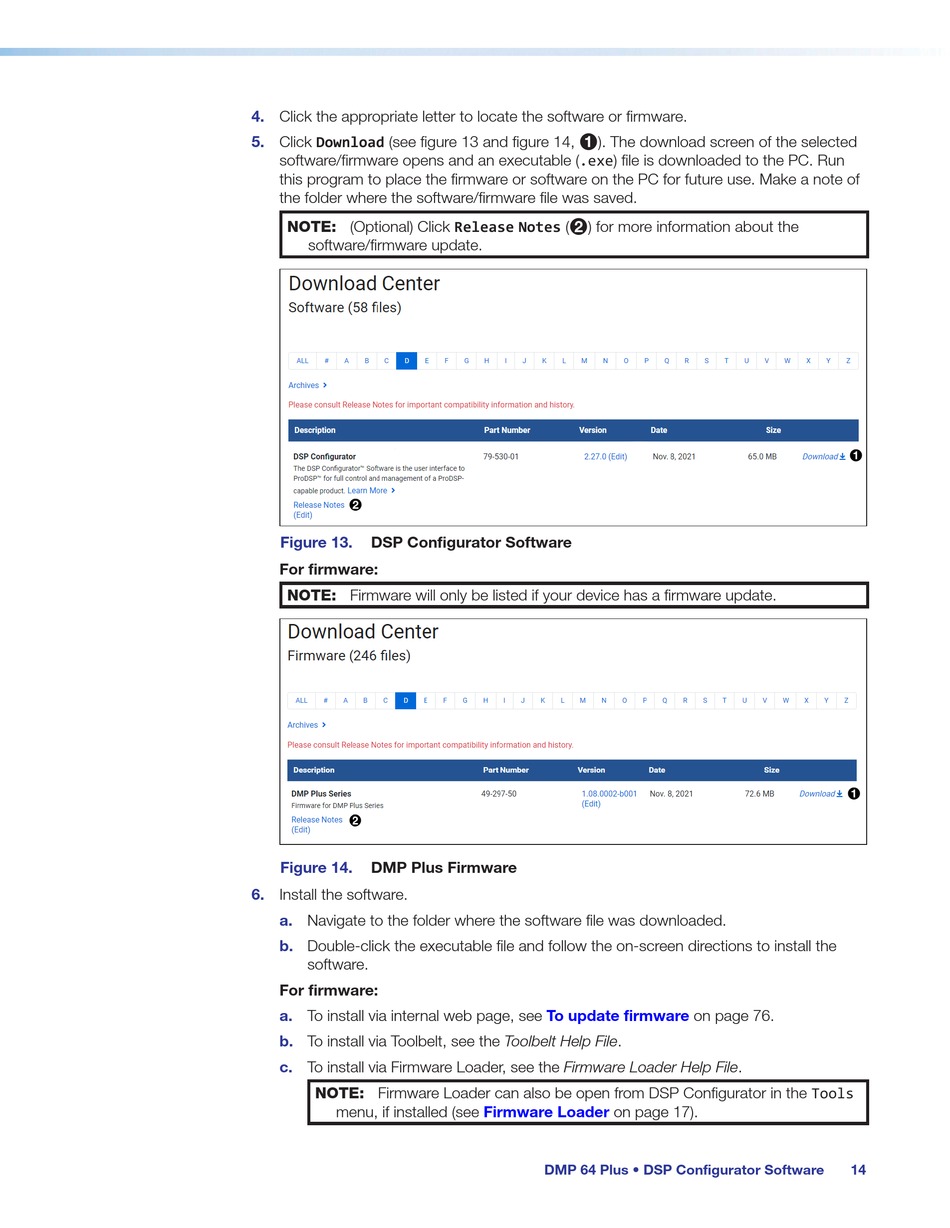

Extron electronics DMP 64 Plus User Manual page 21

4. Click the appropriate letter to locate the software or firmware.
5. Click Download (see figure 13 and figure 14,
software/firmware opens and an executable (.exe) file is downloaded to the PC. Run
this program to place the firmware or software on the PC for future use. Make a note of
the folder where the software/firmware file was saved.
NOTE: (Optional) Click Release Notes (
software/firmware update.
Figure 13. DSP Configurator Software
For firmware:
NOTE: Firmware will only be listed if your device has a firmware update.
Figure 14. DMP Plus Firmware
6. Install the software.
a.
Navigate to the folder where the software file was downloaded.
b. Double-click the executable file and follow the on-screen directions to install the
software.
For firmware:
a. To install via internal web page, see
b. To install via Toolbelt, see the Toolbelt Help File.
c. To install via Firmware Loader, see the Firmware Loader Help File.
NOTE: Firmware Loader can also be open from DSP Configurator in the Tools
menu, if installed (see
). The download screen of the selected
1
) for more information about the
2
To update firmware
Firmware Loader on page 17).
DMP 64 Plus • DSP Configurator Software
on page 76.
14
