7.27 Setting the Int. SP DO

［Explanation］
The operator sets the output relay from "Int. SP DO (=This Paperless recorder output recording
state in Inside the virtual area)".
［Operation］

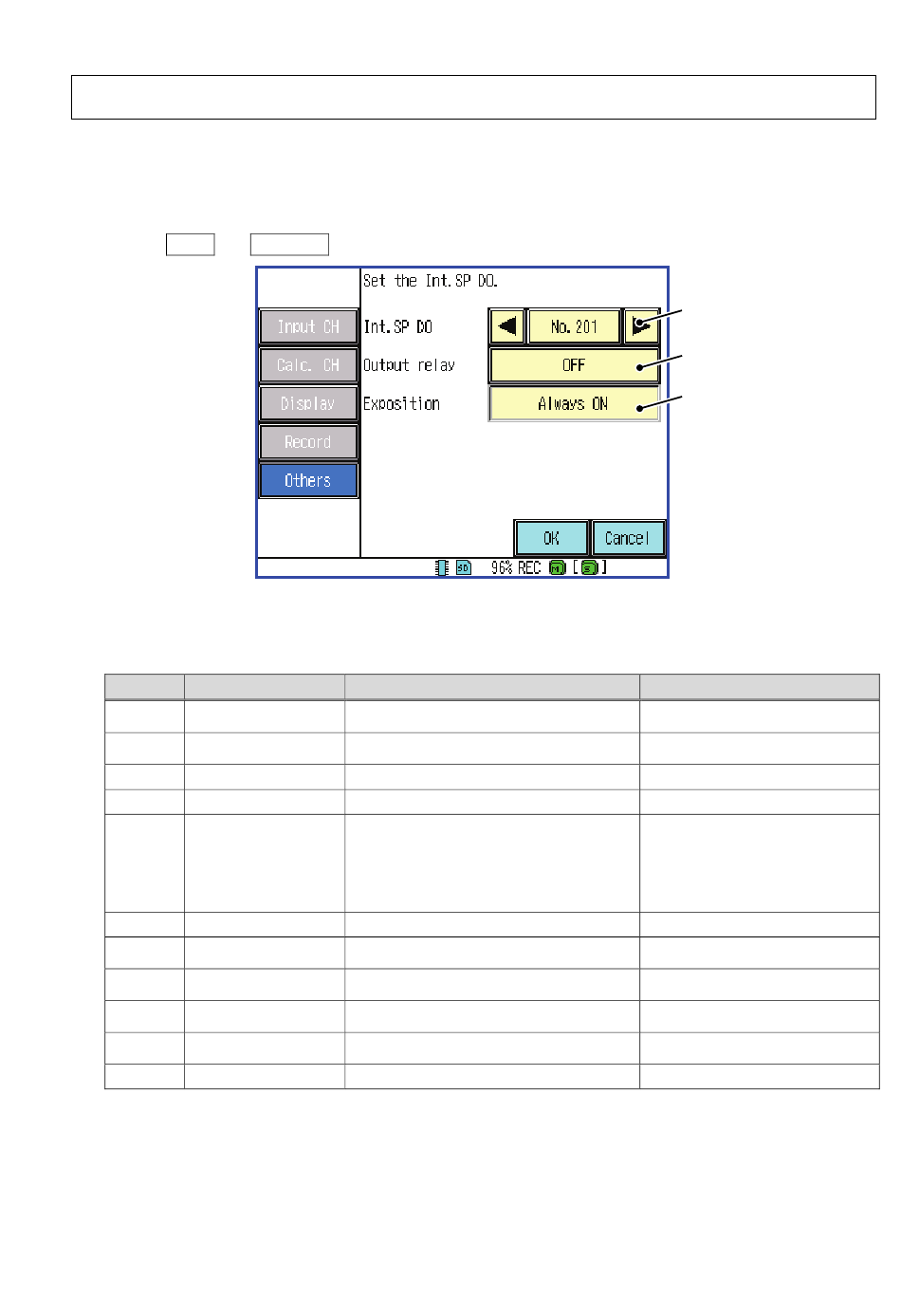

Select the Others ⇒ Int. SP DO on the Parameter.
① Int. SP DO
The operator determines function of "Int. SP DO".
Relay No. Exposition
201
Always ON
202
Always OFF
203
Reserve(*)
204
Reserve(*)
205
SD 10% or less
206～209
Reserve(*)
Operates recording
210
main record
Operates recording
211
sub record
Stops recording
212
main record
Stops recording
213
sub record
214～220
Reserve(*)
(*) System area. It can not be set arbitrarily.
Operating Conditions
The relay output will be "ON" during turned on
the power.
The relay output will be "OFF" during turned
on the power.
・SD mount ：When the memory remaining
capacity indication is 10% or
less
・SD unmount：When the memory remaining
capacity indication is 50% or
less
During operates recording main record /
During stops recording main record
During operates recording sub record /
During stops recording sub record
During stops recording main record /
During operates recording main record
During stops recording sub record /
During operates recording sub record
7-38
①Int. SP DO
②Output relay
③Exposition
Operates the relay
The relay output is on.
The relay output is off.
The relay output is on.
The relay output is on./
The relay output is off.
The relay output is on./
The relay output is off.
The relay output is on./
The relay output is off.
The relay output is on./
The relay output is off.
