8.15 Setting the remote AI.

[Description]
With this device as the Modbus master, perform the settings for connecting with a separately-sold
remote AI. This is used when the Master (Remote AI) is set for the communication type in section
8.13. For the specifications of the separately-sold remote AI, see the REMOTE AI INSTRUCTION
MANUAL.
Note) No settings can be changed during the recording process.
[Operation]
On the system setting screen, select Comm. key ⇒ Remote AI key to open the remote AI setting
screen.
① Selection of remote ID
A maximum of 6 remote AI units (or recorders) can be connected under the Modbus master.
Select the ID for connection.
② Selection of ID ON/OFF
Set whether ID is used or not. If ON is set, the ID is used to connect with the remote AI.
③ Setting of station number (slave ID).
Set the remote AI's station number. (0 to 247)
"0" refers to "Not connected". If the ID is 0, data acquisition is not carried out.
④ Connection type
Select the device to be connected. Select the remote AI or recorder (this device).
For the recorder, select the channel for acquisition, as well.
8-19

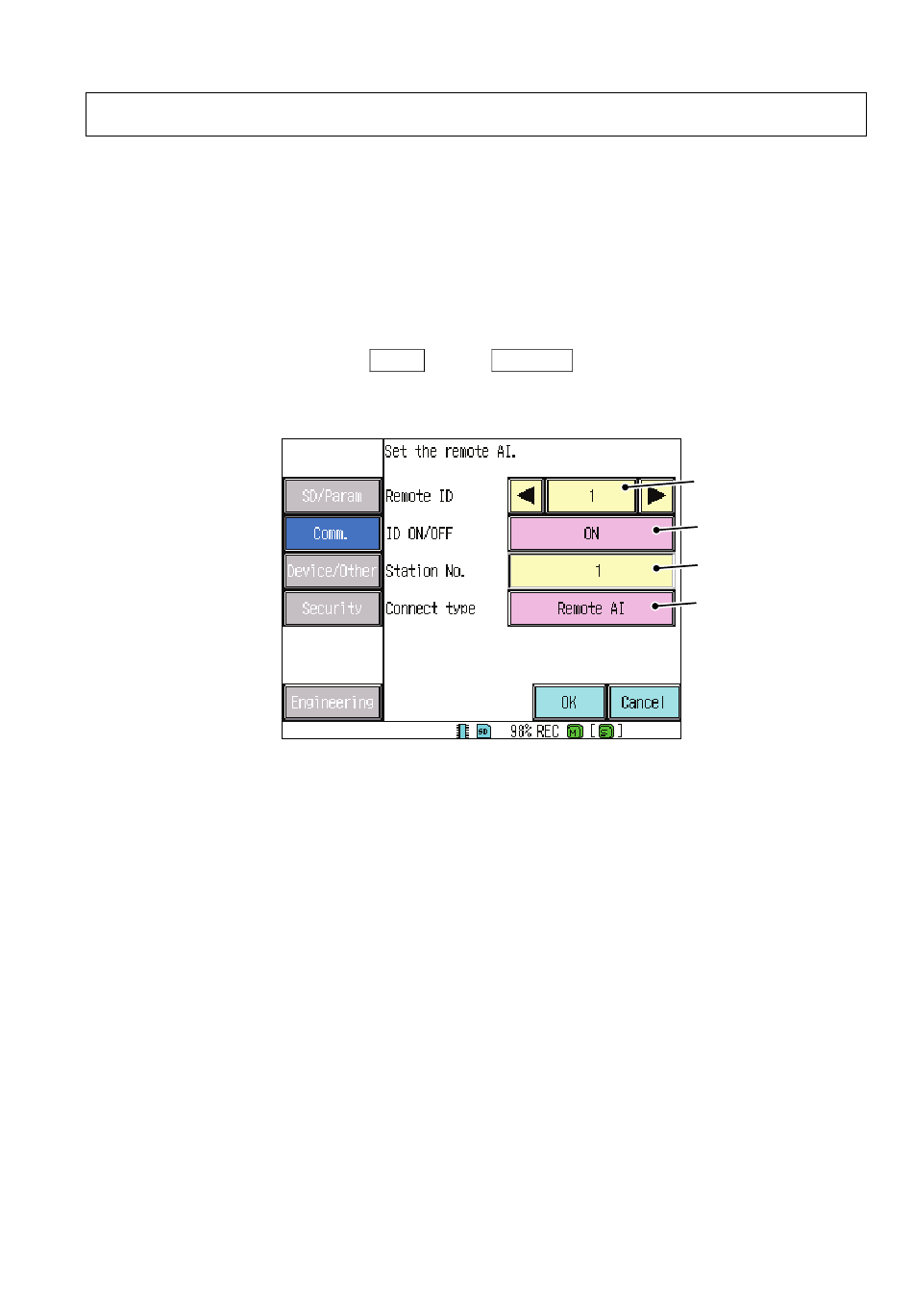

① Selection of communication
ID
② Selection of ID ON/OFF
③ Setting of station number
④ Selection of connection type
