7.7 Setting the display method of channel

［Explanation］
The tag name, the explanation, and the display color of each channel are set, and a set content is
displayed on the trend screen.
Note: When the recorder is in recording, the setting cannot be changed.
［Operation］
Select the Input CH key
⑥No selected range
Channel No.
①
The set channel is selected. (The selection range becomes CH13
TAG
②
"TAG" is displayed on the trend screen instead of "Channel No.". (Up to 8 characters can be
registered.)
It is necessary to set the item of the TAG display set key to "TAG", to display the set tag name
on the trend screen. (Refer to Section 7.15 for TAG display set key.)
Description
③
The comment on the input channel is set. (Up to 52 characters can be registered.)
The input explanation is displayed on the "Channel operation" of Real time trend display (figure
below). (Refer to Section 6.1 for "Channel operation".)
Display key on the Parameter.
⇒
CH48 in the "Calc. CH.".)
～
7-11

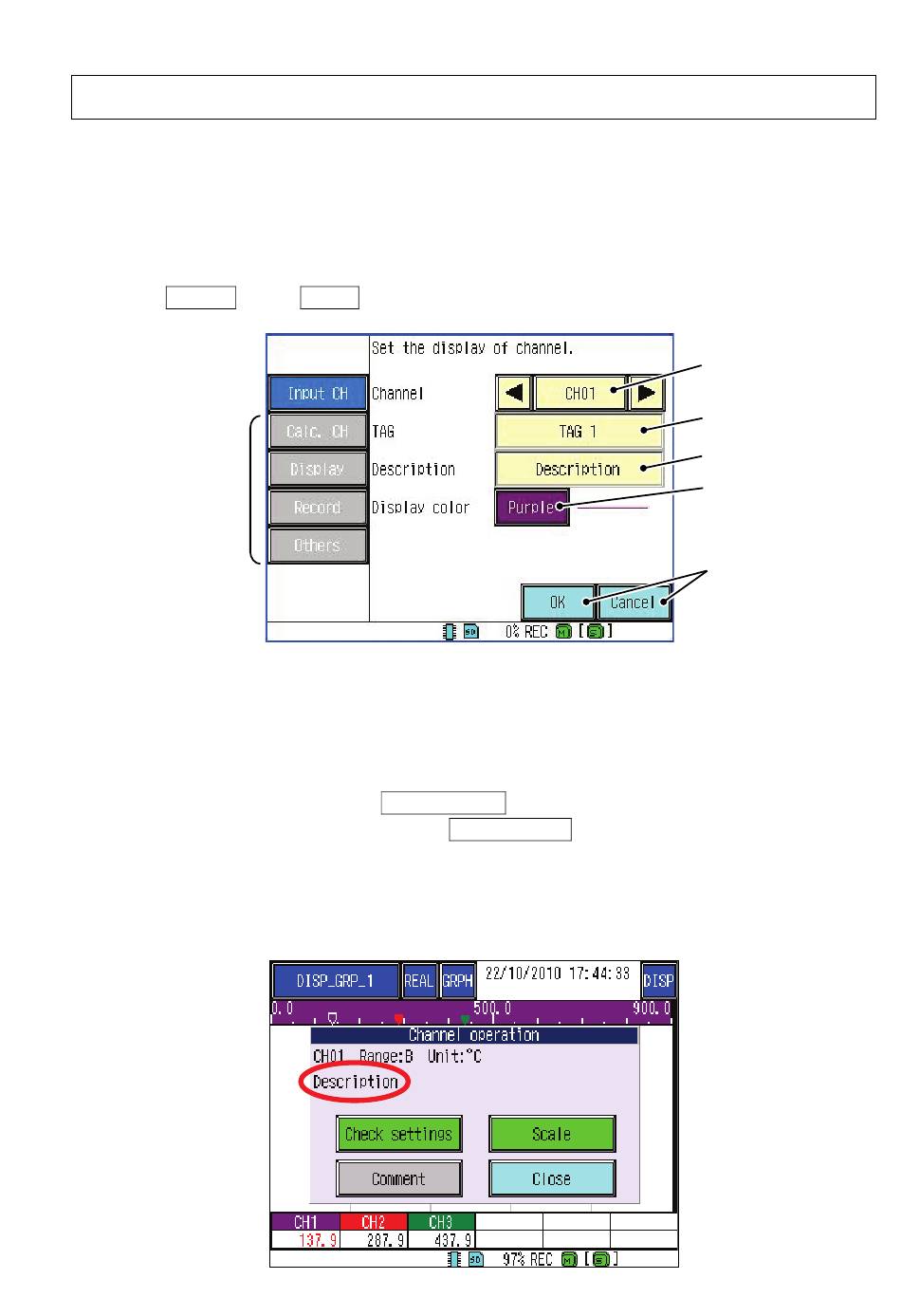

①Channel No.
②TAG
③Description
④Display color
⑤OK, Cancel key
