4.7 Wiring for RS-485 (Option)

RS-485 terminal
RS-485 terminal is "Terminal No. 58

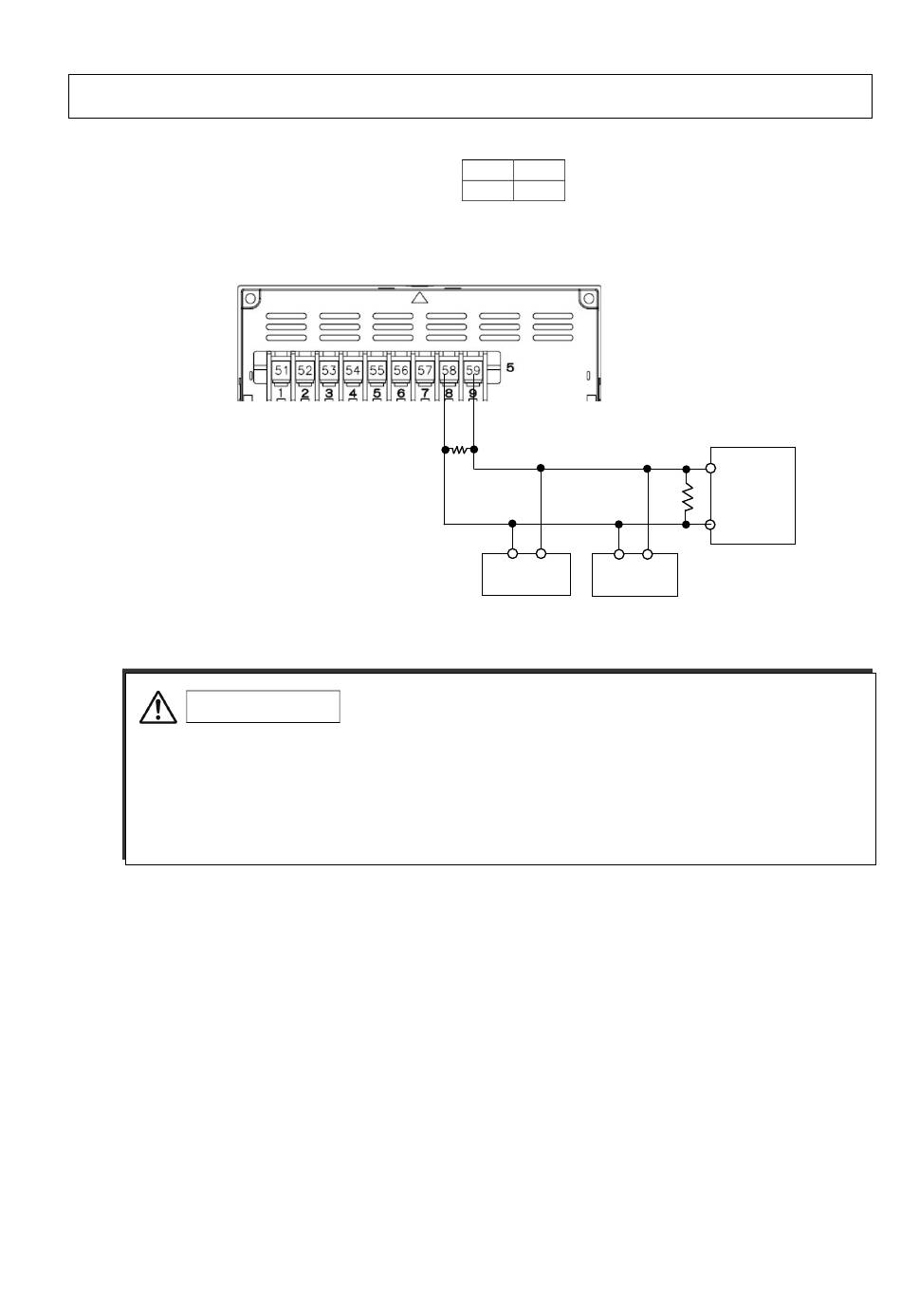

It wires for the cable according to the figure below.
The terminator for RS-485 (Rt=200Ω) is sold as an option article (Code: WMSU0303A01).
CAUTION
Please put terminator (Rt=200Ω) on the host side. In view of the host, please install terminator
(Rt=200Ω) in TRM20A in the distance most.
The connection is 32 or less including the host computer.
The length of the cable is 1.2km or less.
The use of "UL20620-SB(M)(Hitachi-densen corporation)" equivalent goods cable is
recommended.
59".
58
59
+
-
Rt
TRM20A
4-8
Host computer
R
TRM20A
...
