7.17 Select the ON/OFF of graph type

［Explanation］
The switch of display/non-display of "Horizontal trend", "Vertical trend", "Bar graph", and "Digital
display" of each group displayed on the trend screen is set. (Refer to Section 6.2
trend screen.)
Note: When the recorder is in recording, the setting cannot be changed.
［Operation］
Select the Display key
Group No.
①
The set group is selected.
Horizontal trend display
②
Display/non-display of the "Horizontal trend display" is switched.
When "OFF" is selected, the "Horizontal trend display" is not displayed.
Vertical trend display
③
Display/non-display of the "Vertical trend display" is switched.
When "OFF" is selected, the "Vertical trend display" is not displayed.
Bar graph trend display
④
Display/non-display of the "Bar graph display" is switched.
When "OFF" is selected, the "Bar graph display" is not displayed.
Digital display
⑤
Display/non-display of the "Digital display" is switched.
When "OFF" is selected, the "Digital display" is not displayed.
Graph display key on the Parameter.
⇒
7-26
6.4 for each
～

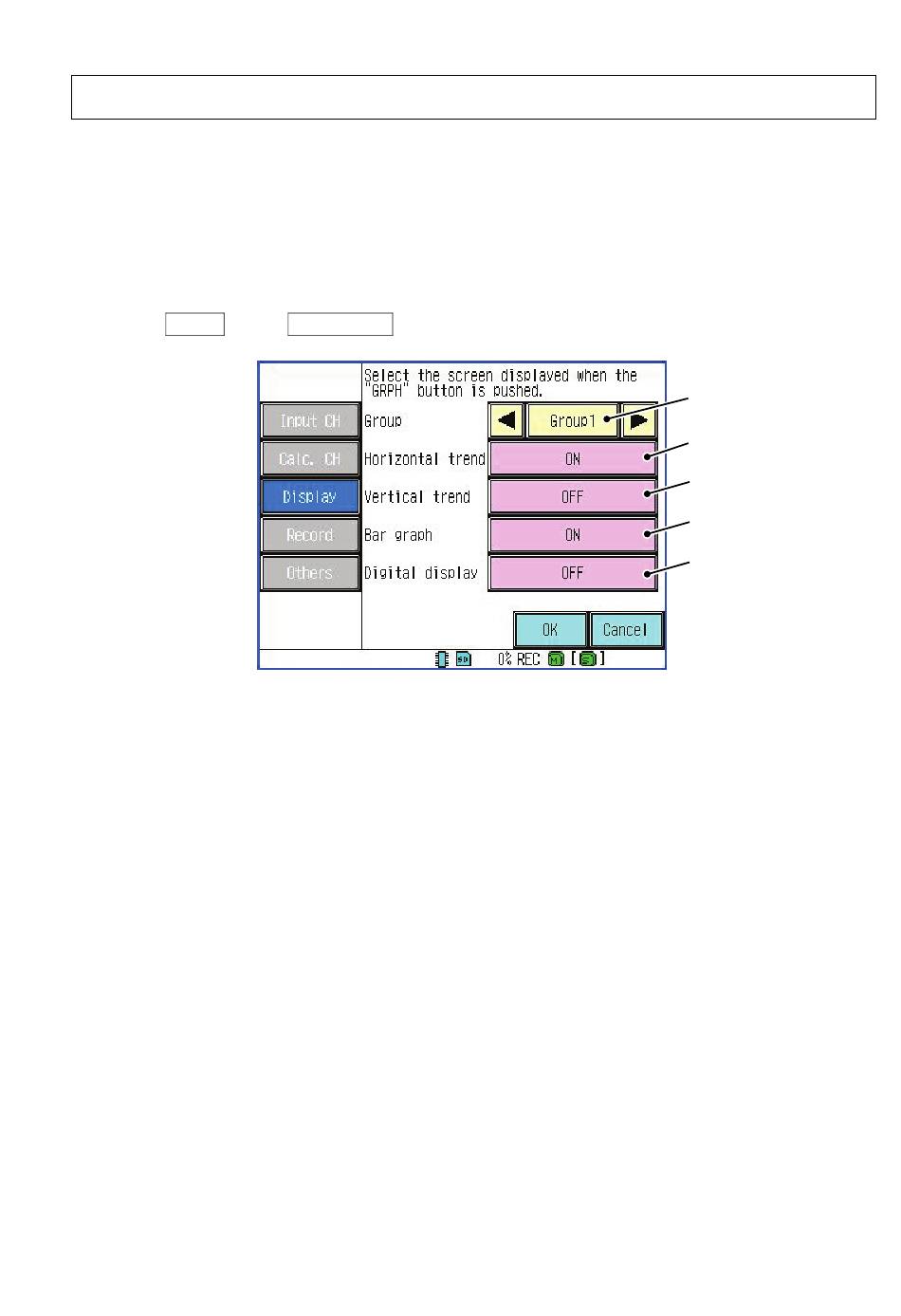

①Group No.
②Horizontal trend display
③Vertical trend display
④Bar graph display
⑤Digital display
