2. NAMES AND FUNCTIONS OF PARTS
Names and functions of parts
2.1
Knob
Display area

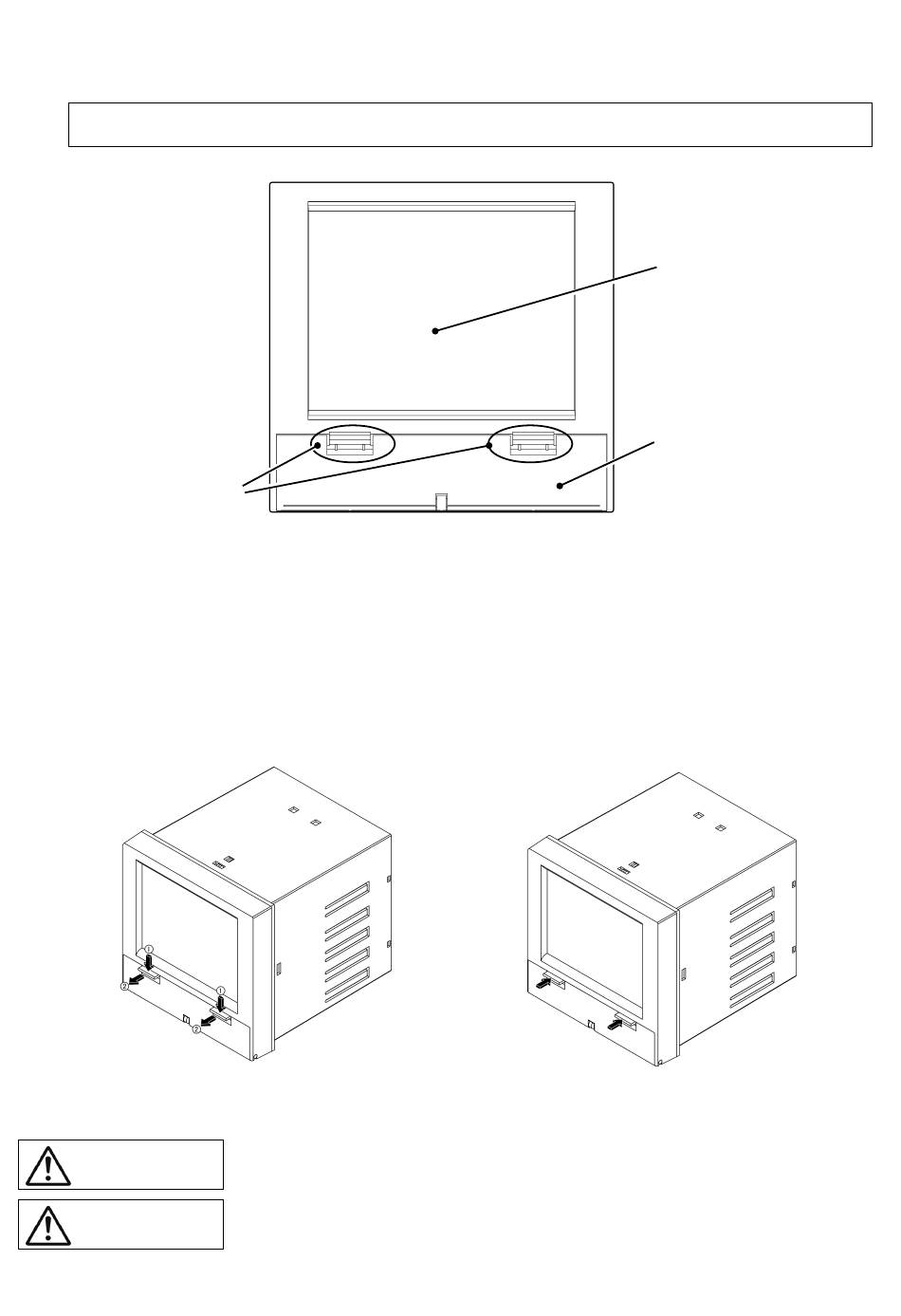

The LCD is provided with touch panel. Display the measurement data and other various
Parameter set screens. Touch the surface to set data.
Button operation part cover
This panel protects the button operation part. It pulls it forward while pushing two knobs below to
appear function keyboard.
Note: Please do the both hands to the opening and shutting of cover. It causes damage.
【When opening cover of button operation part】
Please be performed in both hands open and close the cover.
CAUTION
It causes the damage.
During the opening and closing of the cover, please be careful not to pinch
CAUTION
your fingers.
【When closing cover of button operation part】
2-1
①Display Unit
②Button operation part cover
