6.8 Comment list display
[Explanation]
Arbitrary comments are registered to a trend, and it can jump to the time which registered the
comment from the comment list screen. (It supports since recorder version 1.20.)
A comment can be registered only on a historical-trend screen. A comment is not directly
※
displayed on a trend screen.
Moreover, a comment cannot be registered to the old record data (before a main version 1.13).
[Operation]
● A comment is registered.

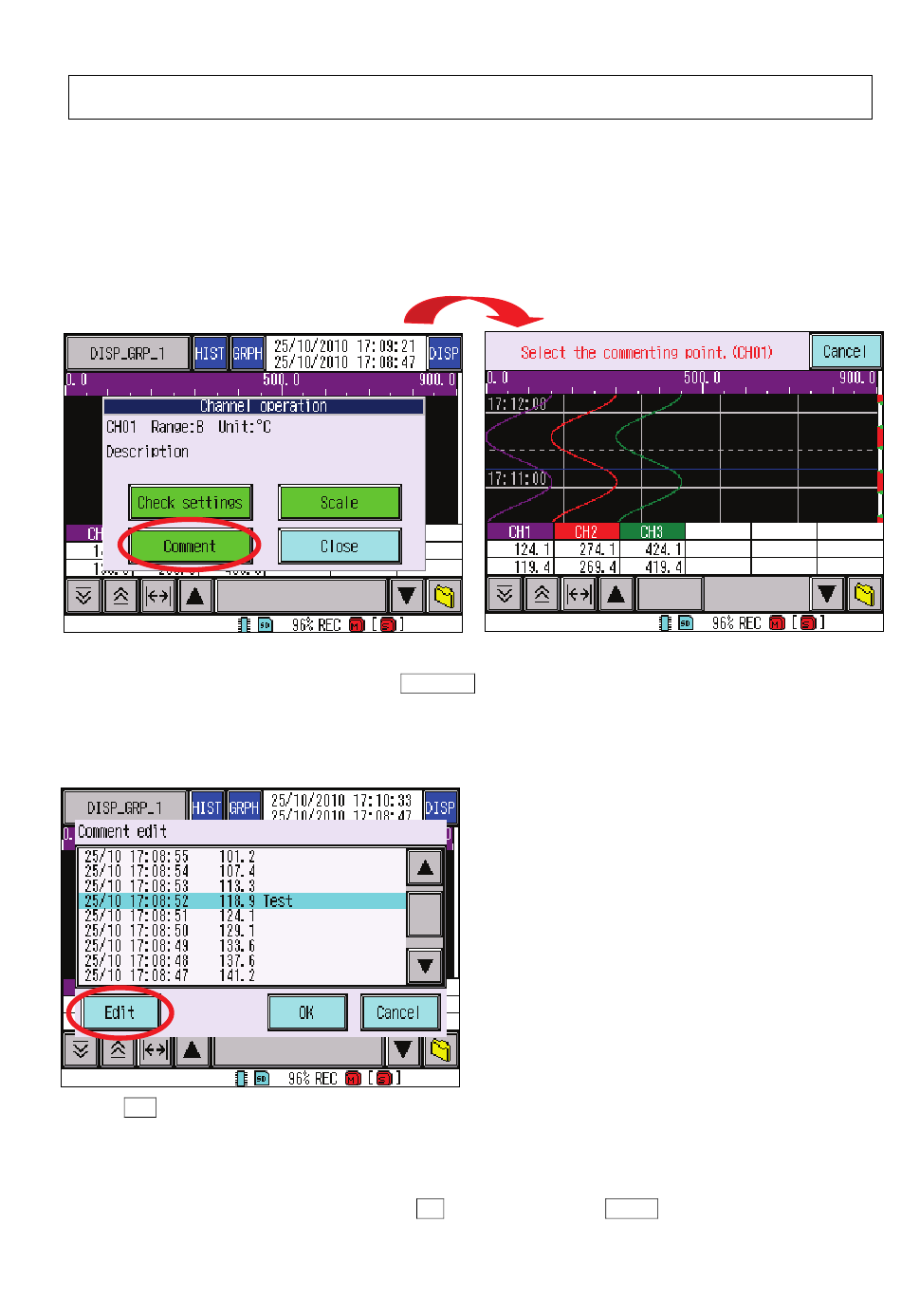

If it continues touching a channel display 2 seconds or more, a channel operation screen (above
figure left side) will be displayed. Next, a Comment key is touched.
(Refer to Section 6.1 for channel operation screen)
A position to input a comment into is touched in a comment point selection screen (above figure
right side).
The Edit key of a "Comment edit" display (above figure) is chosen. And arbitrary comments are
inputted from a "Character entry screen".
(A comment is inputted into a light-blue position. The position which inputs a comment can be
changed by touching a screen. Refer to Section 7.4 for "Character entry screen".)
Comment that inputted can register by the OK key. Moreover, if a Cancel key is touched, it will
return to a historical-trend screen.
6-10
