2 .2 .2 Electrical connection

Valid for all plug-in screw terminal strips (XV, XSK, XRE, XSE, XAO, XAH):
Cable size:
XV – Power supply
Connection:
Pin No. Signal name
1 SGND
2 +U
V
3 -U
V
1 2 3
XV
FC100-CA
XSE
1 2 3 4
XV - power supply
XSK - calorimetric monitoring head
XRE - totalizer reset
26
INSTALLATION
2
0.14 mm to 1.5 mm
3 pole plug-in screw terminal strip
Function
general reference ground/shield ground
positive pole of supply voltage
negative pole of supply voltage
1 2 3 4 5 6 7 8 9 10
XSK
Flow Controller
XAO
1 2 3 4 5 6 7 8
XSE - RS232 communication interface
XAO - analogue outputs
XAH - signal outputs
2
, single or finely stranded conductor
1 2 3
XRE
M
XAH
1 2 3 4 5 6 7 8

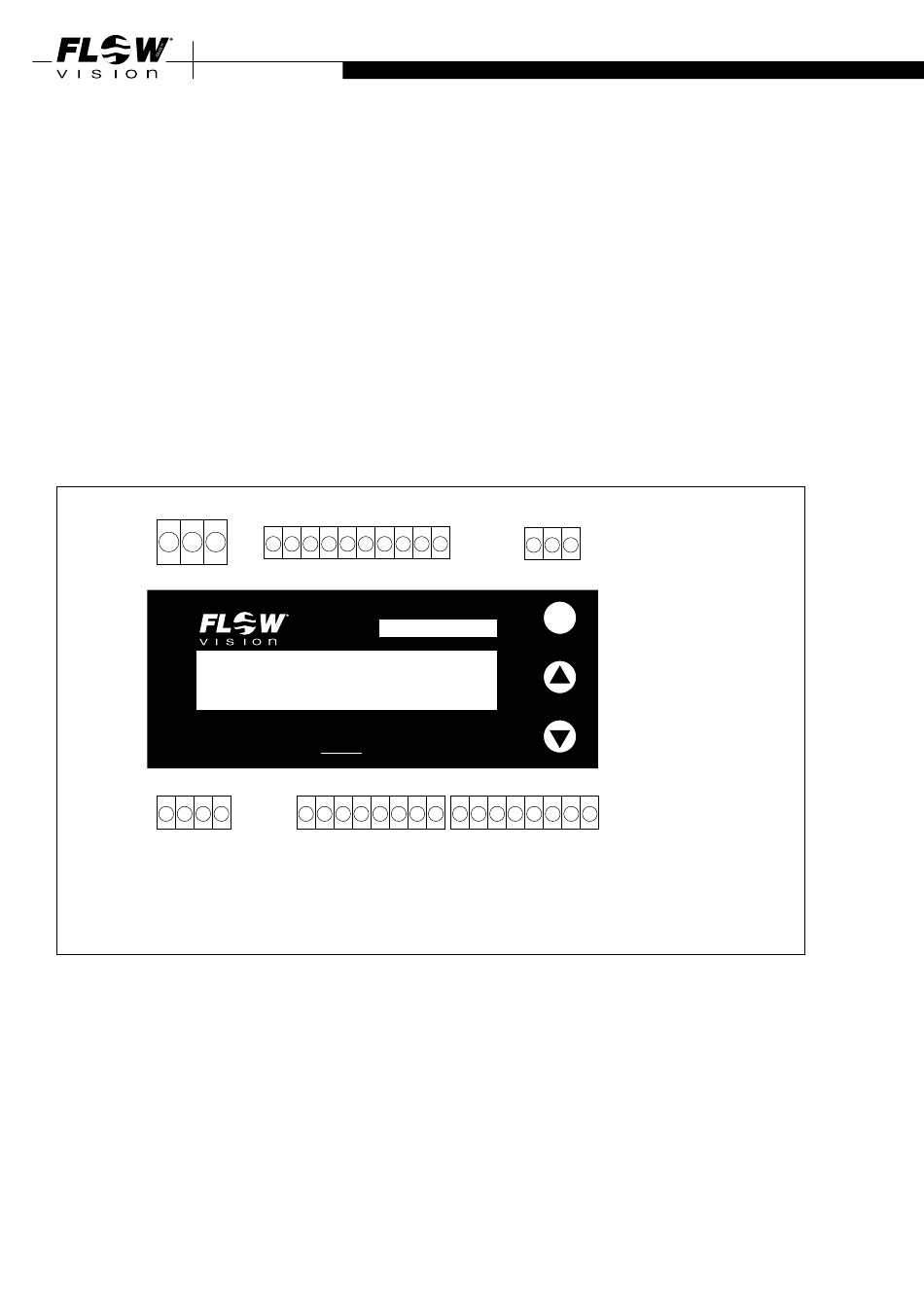

fig. 17
