2 . 1 .7 Condensate deposits

Oil or water condensates on the sensors may falsify the measuring results. Such deposits must be
expected, for example, when high flow velocities of compressed air are concerned and there is no
drying provided. Normal condensation on an unheated sensor is normally not realised, it will dry up
after a few minutes. Deposits on heated sensors only occur at high air humidities and will cause
significant measuring errors. In most cases, such deposits will dry up within a few minutes. Deposits
of oil, however, will not dry up and should be removed at regular intervals.

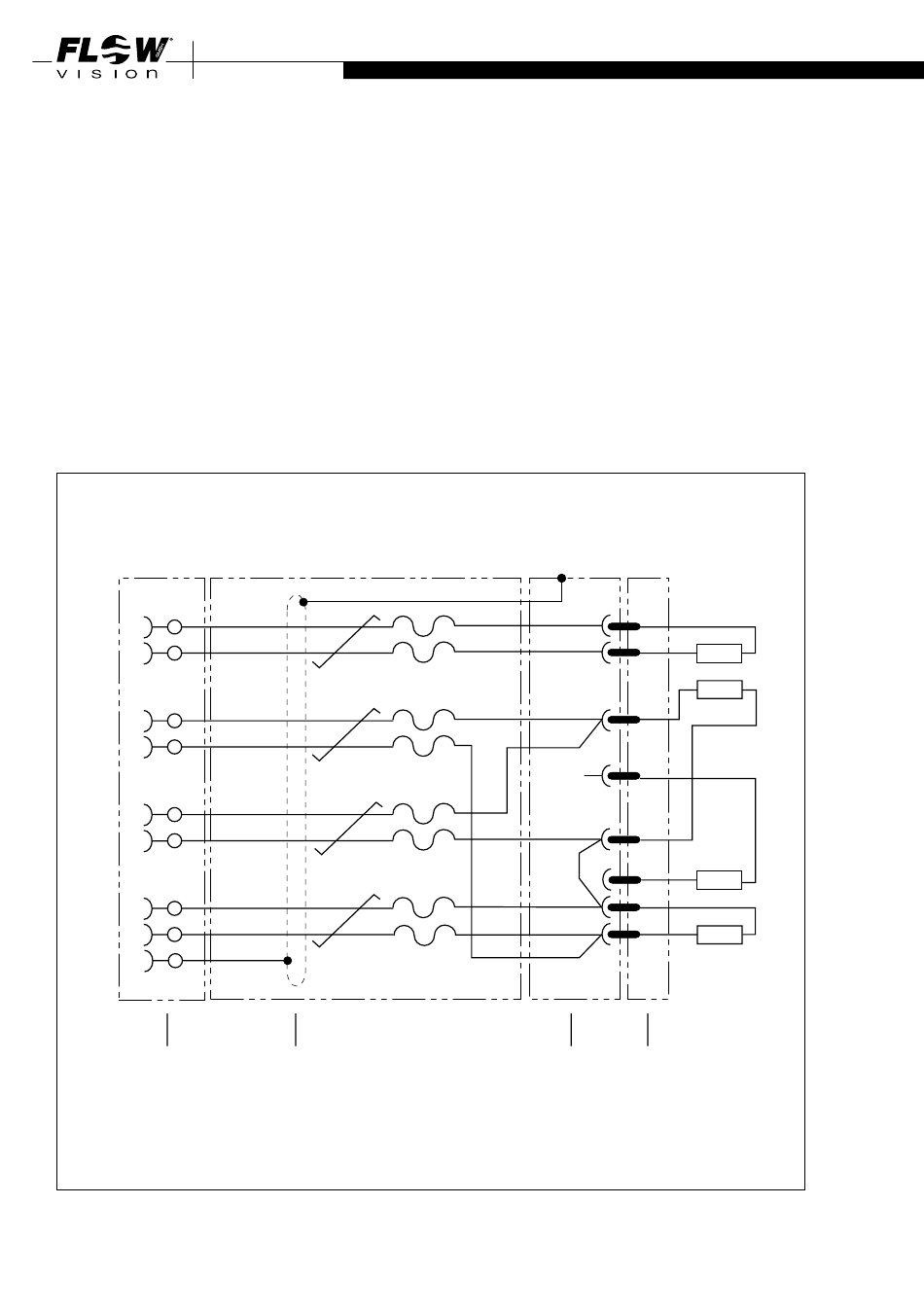

2 . 1 .8 Electrical connection

Cable Do + Ka type xx
(depends on FC01 version)
green
2
yellow
1
red
6
blue
5
pink
10
grey
9
brown
3
white
4
black
7/8
shield
XSK cable
FC01 Kabel-Unio n
LifYCY 4 x 2 x 0,2 mm
or equivalent cable
22
INSTALLATION
round plug
X221 368 01
2
green 7 7 R(HEIZ)
yellow 3 3
4 4
red
R(Tdiff)
pink
8 8
grey 1 1
R(HEIZ)
5
5
6
6
brown
white 2
2
blue
R(Tref)
flange plug
X221 369 01
monitoring head
fig. 14
