2 . 1 .4 Mounting instructions for monitoring head CSP with sensor adapter TP or ball valve BV

The arrow on the housing of the sensor adapter/ball valve must point in direction of flow.
Use hemp, teflon tape or thread sealing glue for sealing pipe connection threads.
Caution!
The monitoring head should only be installed or removed when the pipes are unpressurised.
The safety label must be clearly visible, it should be affixed onto or close to the metering point.
Insert the monitoring head with the O-ring into the sensor adapter and tighten the union nut
(observe correct retention) (see fig. 4). The retention pin ensures correct alignment of the
monitoring head after the union nut has been tightened.
Correct immersion depth of the monitoring head is ensured by the stop provided.
Sealing of the monitoring head in the sensor adapter is ensured by means of the O-ring (see fig. 4).

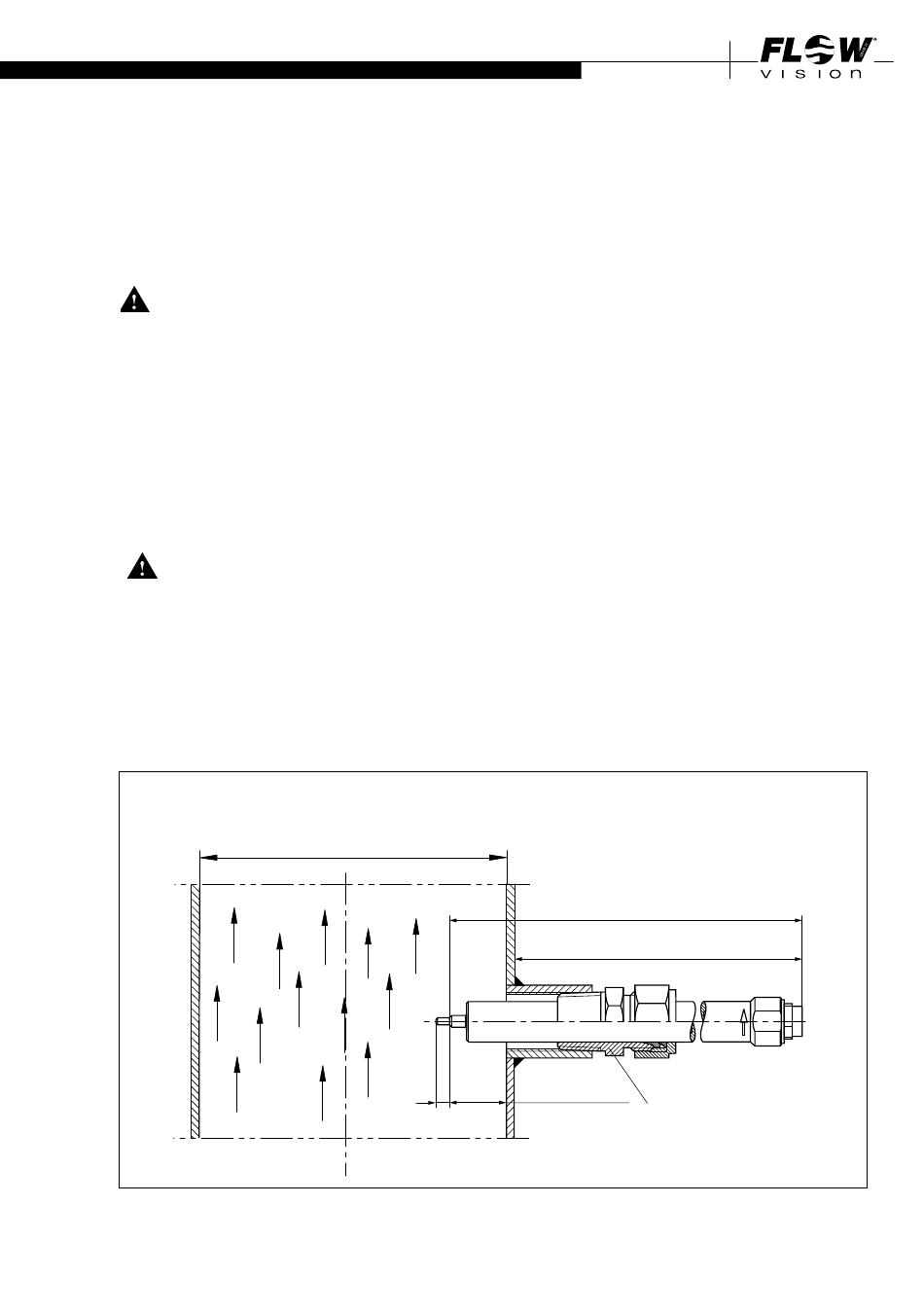

2 . 1 .5 Mounting instructions for push-in monitoring head CSF

Caution!
The two sensors (M) (see fig. 7) should be screwed into the pipeline far enough to ensure that
they are aligned side by side directly across the direction of flow. The sensors are correctly
positioned when the wrench flats are aligned parallel with the pipeline.
The arrow on the housing must point in direction of flow.
The shoulder of the sensor (7 mm from the tip) must be at the position 1/8 of the inside pipe
diameter Ø i (see fig. 11).
øi (inside pipe diameter)
FC100-CA | Flow Meter
INSTALLATION
x = 204,5 mm - 1/8 of øi - wall thickness
204,5 (CSF...L43...)
7
1/8 of øi
x
Threaded installation bush
fig. 11
